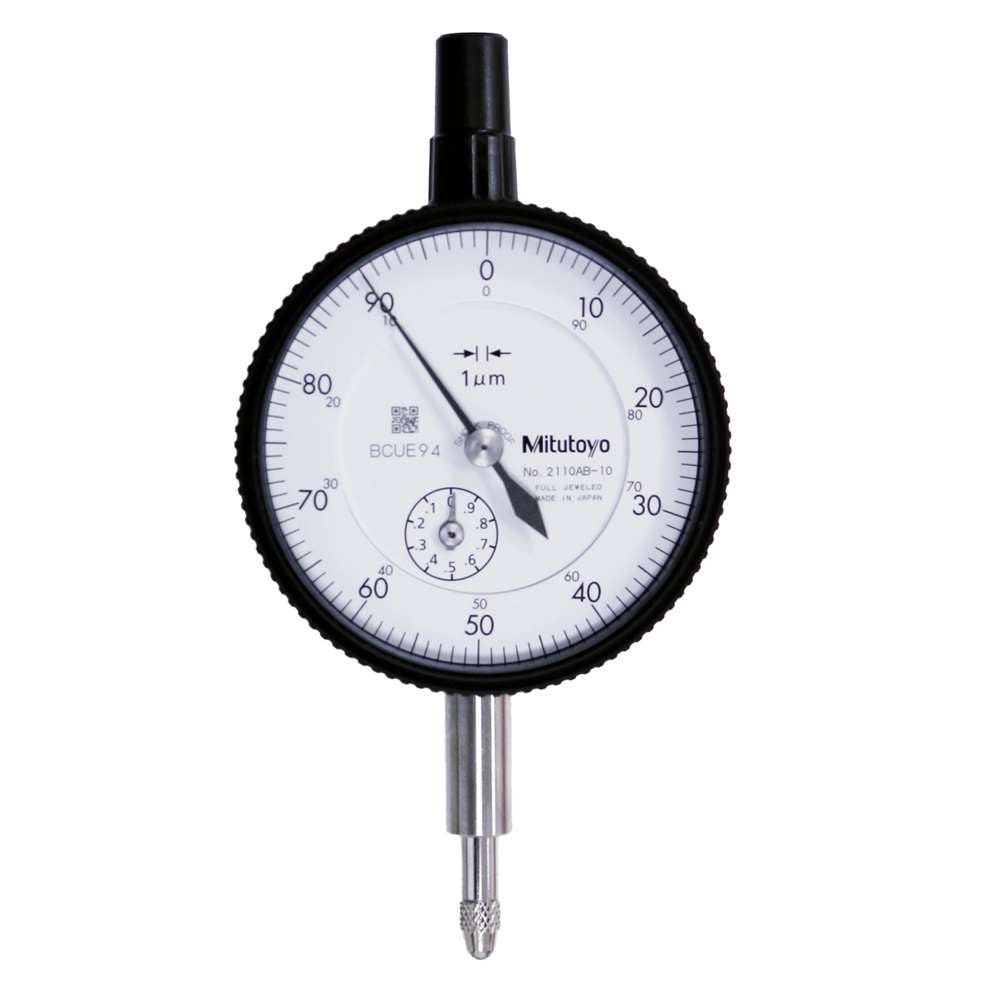

Analog Metric Dial Gauge ISO – Flat Back, Ruby Bearing, Shock-Resistant, 1 mm, 0.001 mm

The standard ISO analog metric dial gauge is a high-precision measuring instrument designed to ensure reliability and durability even in demanding industrial environments. The ruby-mounted bearing and shock-resistant design provide smooth and secure measurements, reducing wear and the risk of damage during use.

Optional clamps and lift lever can be mounted on either side without the need for tools, offering maximum operational flexibility. The frame construction, free of through-holes for screws, the perfect adhesion between bezel and crystal, and the presence of an O-ring prevent the ingress of water or oil, protecting the dial gauge under harsh conditions.

Key Features:

• Digital / Analog: Analog

• Units: Metric

• Standard: EN ISO

• Measuring range: 1 mm

• Range per revolution: 0.1 mm

• Reading: ±0.0–100.0

• Graduation: 0.001 mm

• Measuring force: 0.4–1.8 N

• Maximum permissible error (MPE) per 1/10 revolution: 2.5 µm

• MPE per 1/2 revolution: 4 µm

• MPE per 1 revolution: 4.5 µm

• MPE measuring range: 5 µm

• Hysteresis (H MPE): 2 µm

• Repeatability (R MPE): 1 µm

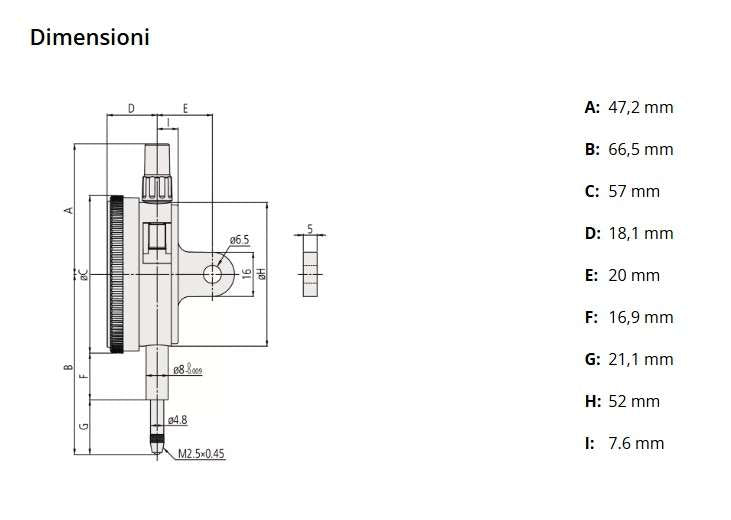

• Stem: 8.0 mm

• Contact point: Hard metal, thread M2.5 x 0.45 mm

• Progressive scale: Yes

• Dual scale: Yes

• Shock protection: Yes

• Included: Inspection Certificate

• Weight: 140 g

This dial gauge is ideal for mechanical workshops, quality control laboratories, and professional applications where measurement precision, protection, and repeatability are essential.
