Description

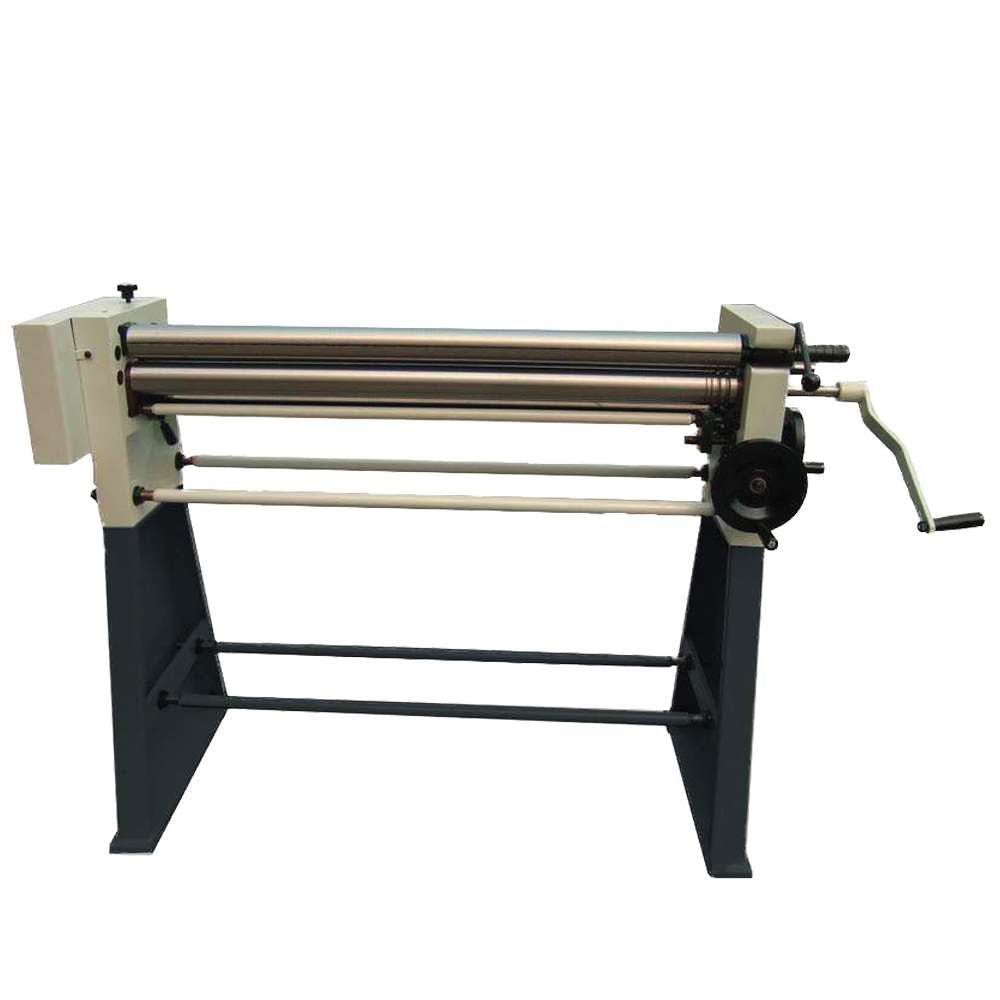

Manual Three-Roll Bending Machine – Sheet Capacity 1000x2 mm with Stand – FTX 2x1000 CP
The FTX 2x1000 CP manual bending machine is the ideal solution for professionals in metal fabrication.
Equipped with a quick-release top roller, adjustable roll distance via handwheel, and stepped lower rollers for ring forming, this calender guarantees precision and versatility.
The included stand ensures stability and ergonomic working conditions.
Key Features
Quick-release top roller for fast sheet removal
Two feed speeds for different materials
Adjustable roller distance with handwheel
Stepped lower rollers for ring forming
Rear roller can be offset for conical bending
Included stand for improved stability
Technical Specifications – FTX 2x1000 CP
| Feature | Value |
|---|---|
| EAN Code | 8423640293809 |
| Bed width | 1000 mm |
| Max sheet thickness | 2 mm |
| Roll diameter | 60 mm |
| Dimensions | 1550 x 620 x 1180 mm |
| Net/Gross weight | 200 / 240 kg |
