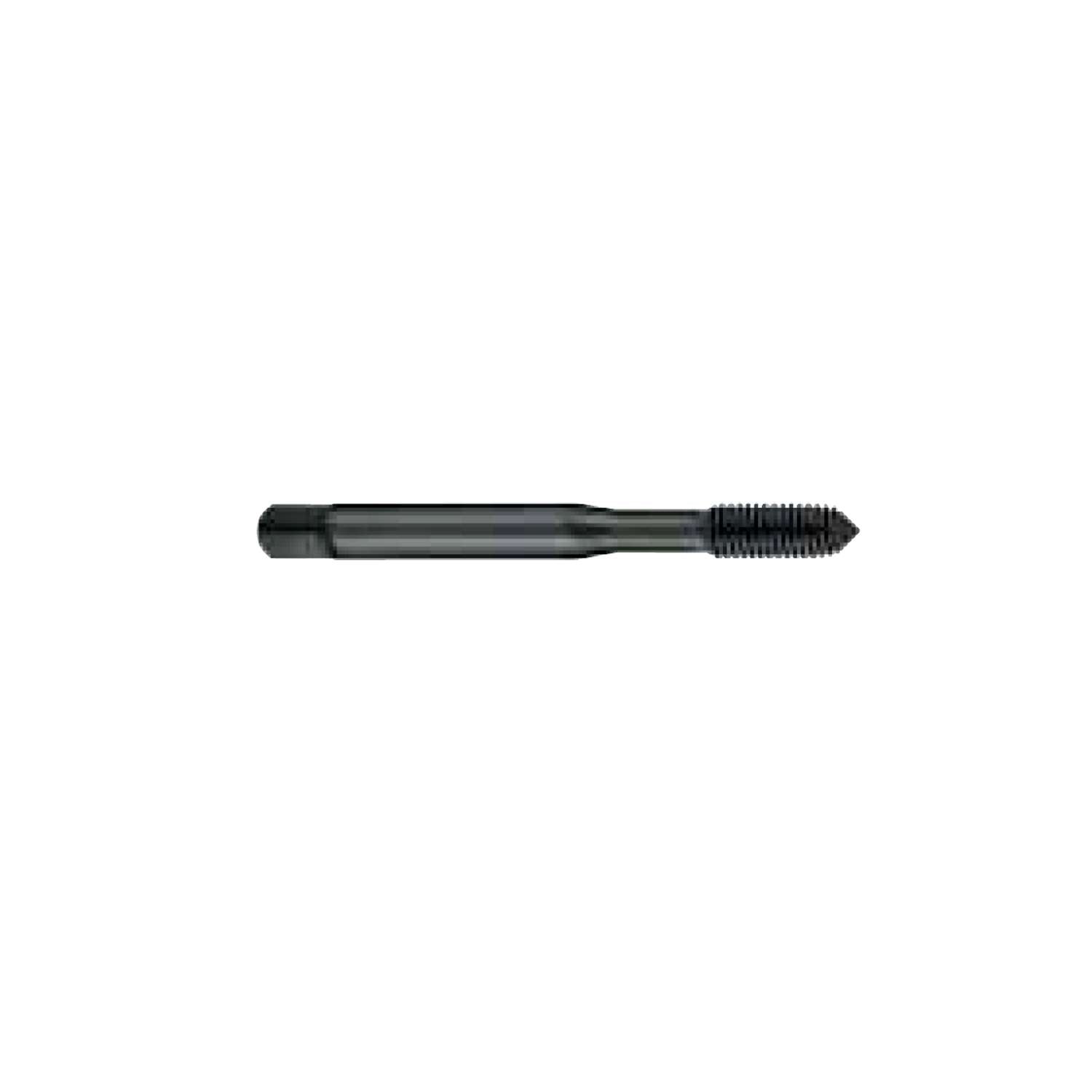

FORMER - SPECIFIC FOR ALSI / FE - DIN 371 - CATALOGUE 6722
Material: HSS.CO
Notes: for blind/through holes up to 1.5 times the ø of the male

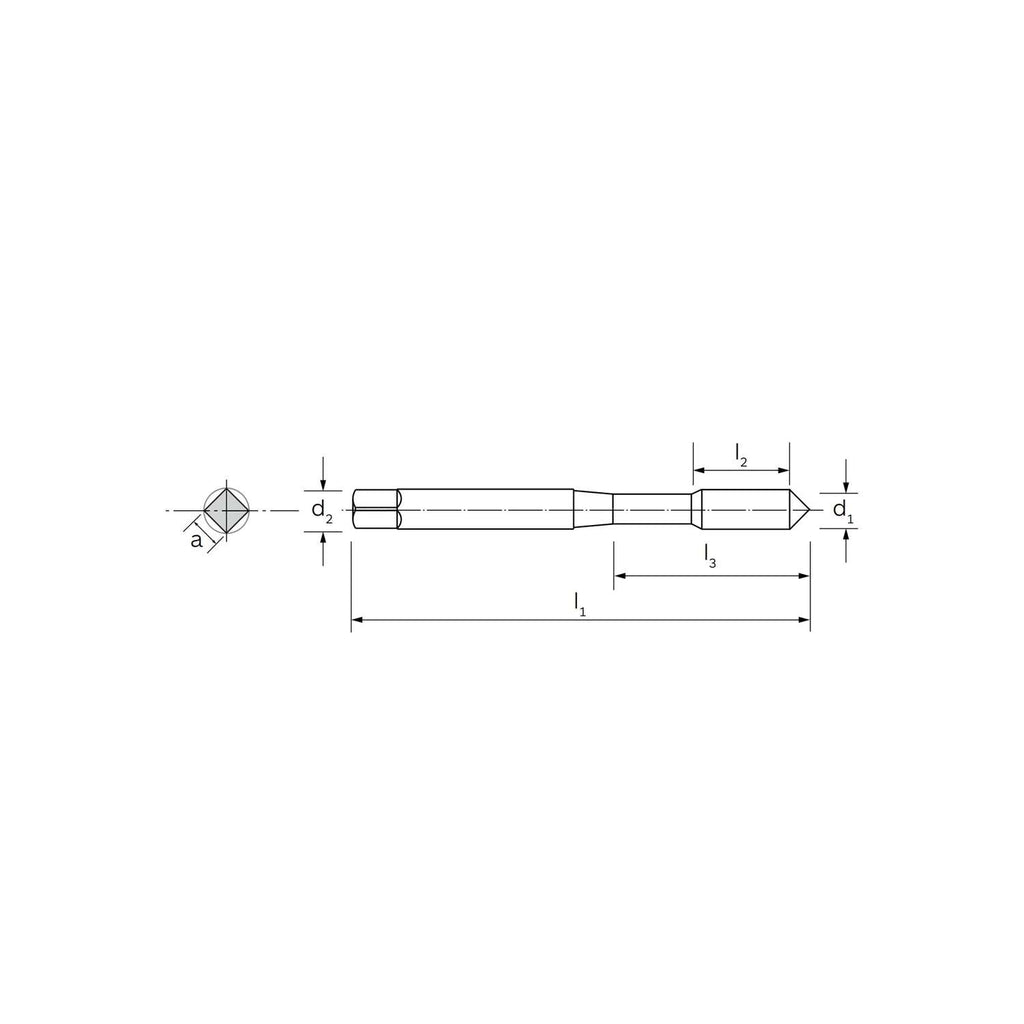

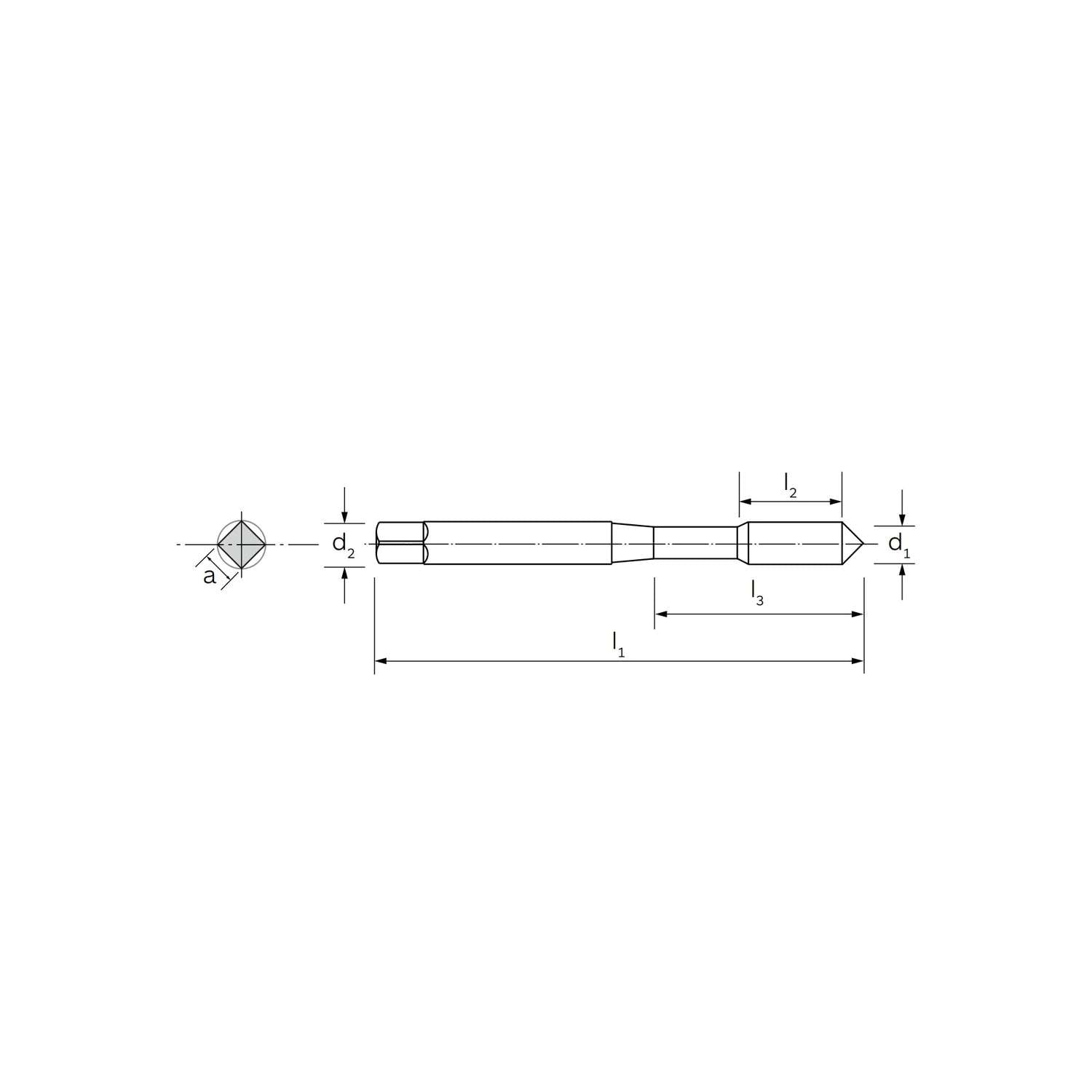

Ø | L1 | L2 | D2h9 | a h12 | Ø Pre-hole | Passo |
2 | 45 | 8 | 2.8 | 2.1 | 1.8 | 0.4 |
2.3 | 45 | 9 | 2.8 | 2.1 | 2.1 | 0.4 |
2.5 | 50 | 9 | 2.8 | 2.1 | 2.3 | 0.45 |
3 | 56 | 11 | 3.5 | 2.7 | 2.75 | 0.5 |
4 | 63 | 13 | 4.5 | 3.4 | 3.65 | 0.7 |
5 | 70 | 16 | 6 | 4.9 | 4.6 | 0.8 |
6 | 80 | 19 | 6 | 4.9 | 5.5 | 1 |
8 | 90 | 22 | 8 | 6.2 | 7.4 | 1.25 |
10 | 100 | 24 | 10 | 8 | 9.3 | 1.5 |
