Description

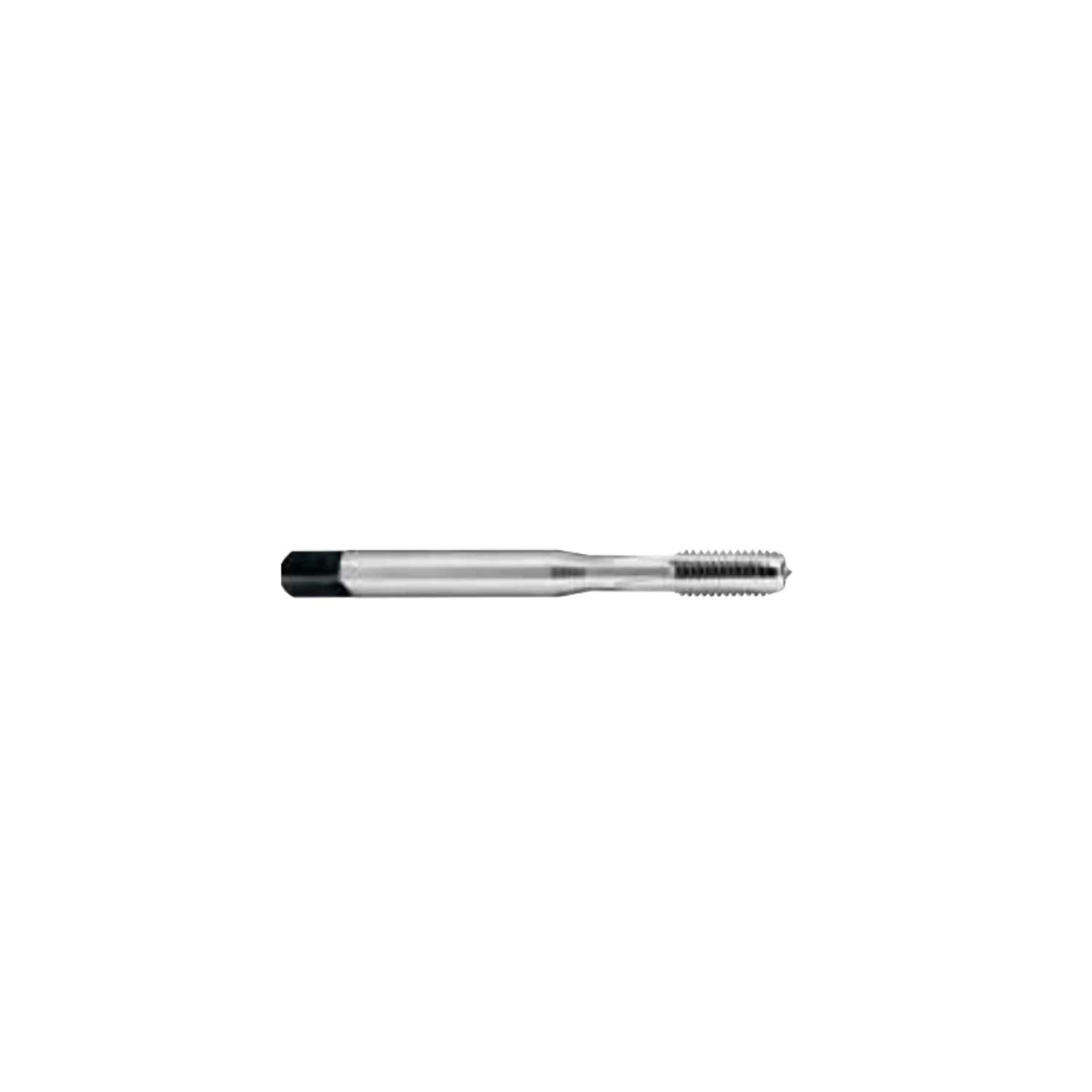

N - GENERAL APPLICATIONS - DIN 371 - CATALOGUE 6719
Material: HSS-CO
Notes: for tapping of deep blind holes up to 2 times the ø of the male

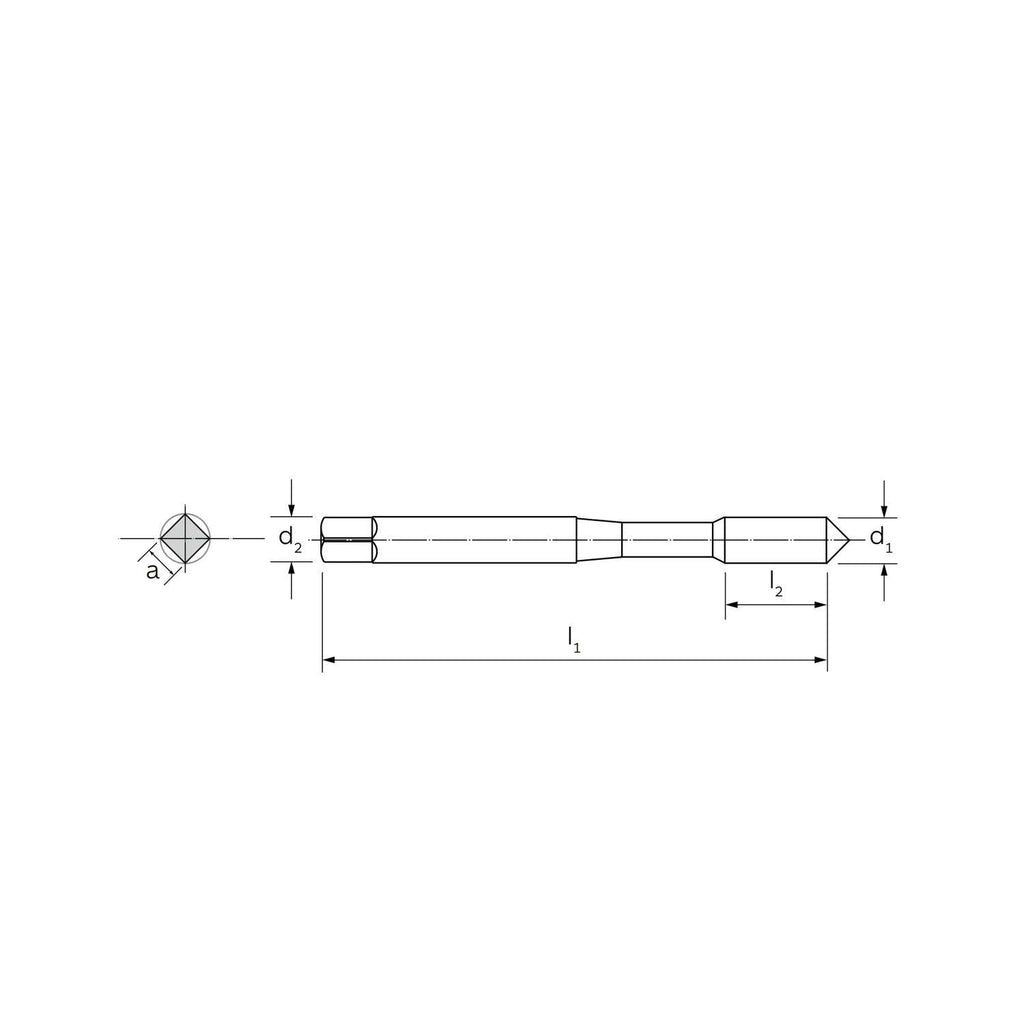

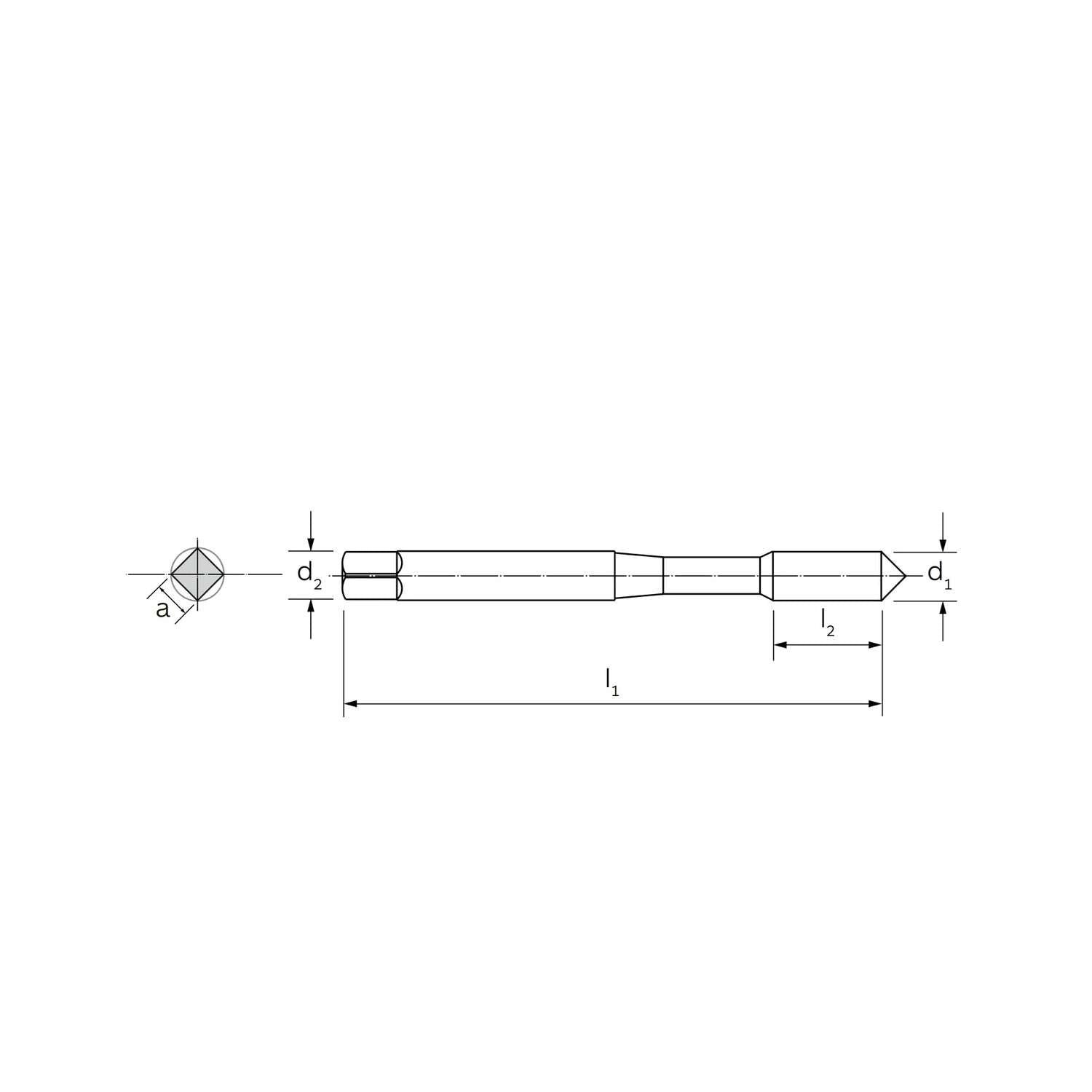

| Ø | L1 | L2 | L3 | D2 h9 | a h12 | Ø Pre-hole | THUMB THREADS |
| 8-36 | 63 | 13 | 7 | 4.5 | 2.1 | 3.5 | 36 |
| 10-32 | 70 | 12 | 8 | 6 | 2.7 | 4.1 | 32 |
