Description

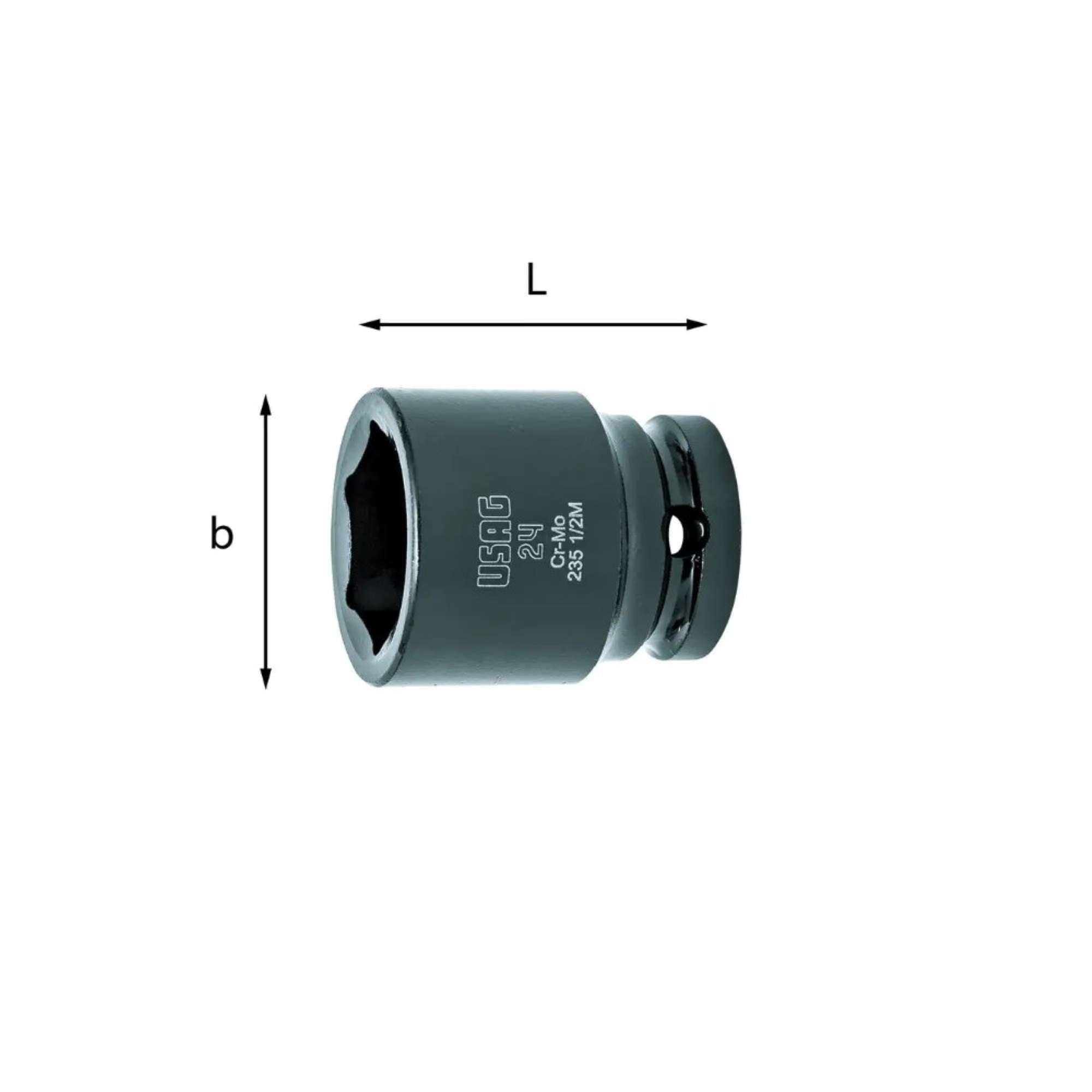

Machine socket wrenches with hexagonal mouth - 235 1/2 M Usag
ISO 2725-2
- Highly alloyed chrome molybdenum special steel
- Phosphated execution
- Use seal pin 235 MCA/4 (U02350204Q) for sizes 8÷21 and 235 MCA/6 (U02350206Q) for sizes 22÷36
- Use the retaining ring 235 MDA/4 (U02350224Q) for 8÷21 measurements and the 235 MDA/6 (U02350226Q) for 22÷36 measurements
| Code | Hexagonal mouth mm | b mm | L mm | Q.ty x pkg. |
|---|---|---|---|---|
U02350201 |
10 |
17 |
38 |
1 |
U02350202 |
11 |
18 |
38 |
1 |
U02350203 |
12 |
19 |
38 |
1 |
U02350204 |
13 |
20 |
38 |
1 |
U02350205 |
14 |
21,5 |
38 |
1 |
U02350206 |
15 |
23 |
38 |
1 |
U02350208 |
17 |
26 |
38 |
1 |
U02350209 |
18 |
27 |
38 |
1 |
U02350210 |
19 |
30 |
38 |
1 |
U02350211 |
20 |
30 |
38 |
1 |
U02350212 |
21 |
32 |
38 |
1 |
U02350213 |
22 |
32 |
38 |
1 |
U02350217 |
26 |
38 |
42 |
1 |
U02350218 |
27 |
40 |
46 |
1 |
U02350219 |
28 |
40 |
46 |
1 |
U02350221 |
30 |
42 |
46 |
1 |
