Description

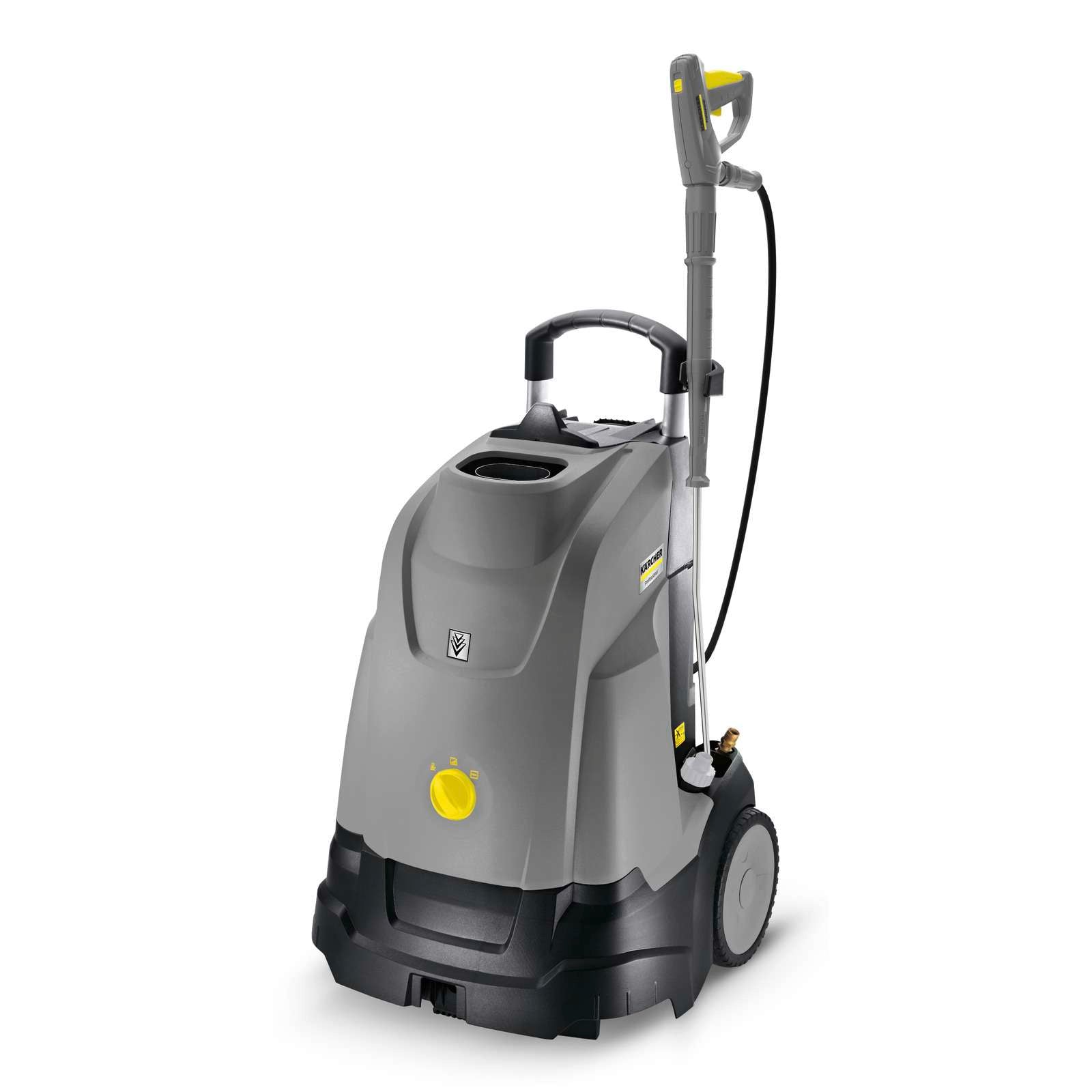

HDS 5/15 U high-pressure cleaner
The HDS 5/15 U hot water cleaner features a vertical design for exceptional mobility and ergonomics, can be transported horizontally, and is equipped with an EASY!Force gun. Vertical hot water cleaners can be positioned horizontally and feature a two-pole, single-phase, air-cooled electric motor. They are lightweight and compact, with an ergonomic handle and wide wheels ensuring perfect maneuverability even on uneven surfaces. The 3-piston axial pump features stainless steel pistons and a corrosion-resistant brass head. The pressure switch connected to it automatically shuts down the machine when the gun is released, thus reducing wear. The high-pressure pump, burner fan, and fuel heating pump are driven by an electric motor and are connected together to create a single drive module. The burner technology ensures excellent performance in confined spaces while complying with harmful gas emission limits. The easy-to-use 3-position control selector is located on the front cover. The EASY!Force gun uses the recoil from the high pressure to reduce the tension force to zero, while the EASY!Lock quick couplings are 5 times faster than conventional screw couplings and are robust and durable.
Technical data
| Electrical connection (Ph/V/Hz) | 1 / 230 / 50 |
| Flow rate (l/h) | 450 |
| Working pressure (bar/MPa) | 150 / 15 |
| Temperature (°C) | max. 80 |
| Connected power (kW) | 2.7 |
| Fuel oil consumption, at full load (kg/h) | 2.4 |
| Fuel tank (l) | 6.5 |
| Color | anthracite |
| Weight (with accessories) (kg) | 78 |
| Weight with packaging (kg) | 86.2 |
| Dimensions (L x W x H) (mm) | 618 x 618 x 994 |
Scope of supply
Gun: EASY!Force Advanced
High-pressure hose length: 10 m
Spray lance: 840 mm
Equipment
Pressure switch
