Description

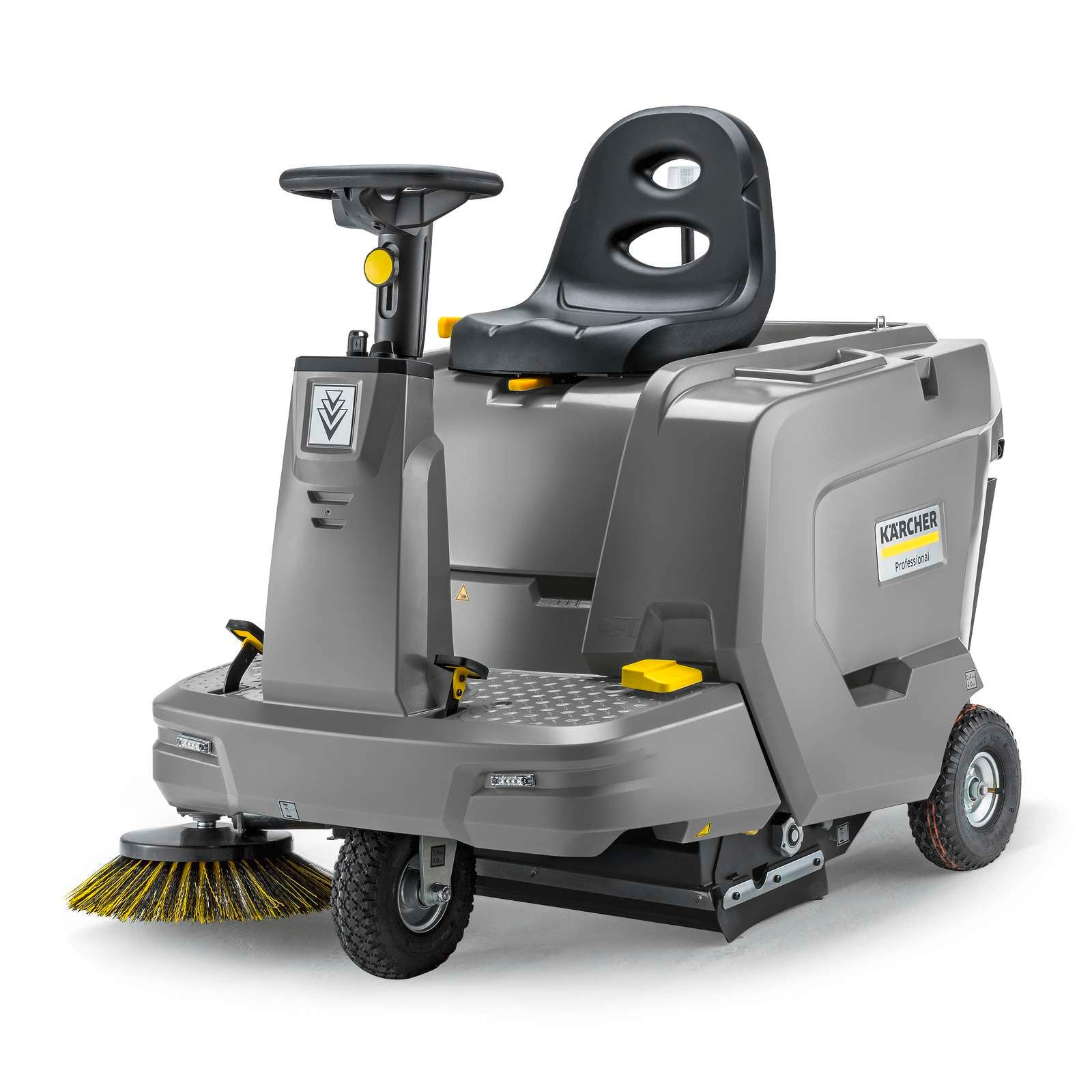

Sweeper with vacuum KM 85/50 R Bp
The KM 85/50 R Bp is a ride-on sweeper with vacuum system that is highly manoeuvrable and compact, easy to use, delivers excellent results and offers good area performance. The battery-powered KM 85/50 R Bp sweeper with vacuum is compact and agile, allowing effortless cleaning of narrow and cluttered environments such as small areas with tight corridors and many corners. This versatile and efficient entry-level model also delivers good performance on outdoor surfaces. Maintenance of this model is very simple: to clean the dust filter that retains all impurities during operation, simply press the dedicated control on the machine – the operator remains seated while activating the filter shaker. No special tools are required either to replace the floating main sweeping roller or to access the internal components. A wear level indicator on the housing makes it easy to see when components need replacing. There is no need to constantly adjust the brush and roller mechanism to clean uneven surfaces: no residue is left on bumps or in potholes. The side brush is self-levelling to prevent damage and malfunctions, and its rotation speed is adjustable. The integrated Home Base system keeps cleaning tools close at hand whenever needed.
Technical data
| Traction drive | Direct current motor |
| Drive – Power (V/W) | 24 / 1000 |
| Drive type | Electric |
| Max. area performance (m²/h) | 5100 |
| Maximum hourly performance with 2 side brushes (m²/h) | 6510 |
| Working width (mm) | 615 |
| Working width with 1 side brush (mm) | 850 |
| Working width with 2 side brushes (mm) | 1085 |
| Battery voltage (V) | 24 |
| Battery runtime (h) | max. 2.5 |
| Waste container (l) | 50 |
| Climbing ability (%) | 12 |
| Working speed (km/h) | 6 |
| Filter area (m²) | 2.3 |
| Load capacity (kg) | max. 90 |
| Weight (with accessories) (kg) | 177.5 |
| Weight, ready for operation (kg) | 230 |
| Weight incl. packaging (kg) | 179.5 |
| Dimensions (L x W x H) (mm) | 1171 x 870 x 1136 |
Scope of supply
- Pneumatic tyres
Equipment
- Manual filter cleaning
- Mechanical filter shaker
- Tilting main sweeping roller
- Adjustable suction
- Coarse dirt flap
- Throw-over principle
- Traction drive, forward
- Traction drive, reverse
- Vacuum system
- Outdoor use
- Indoor use

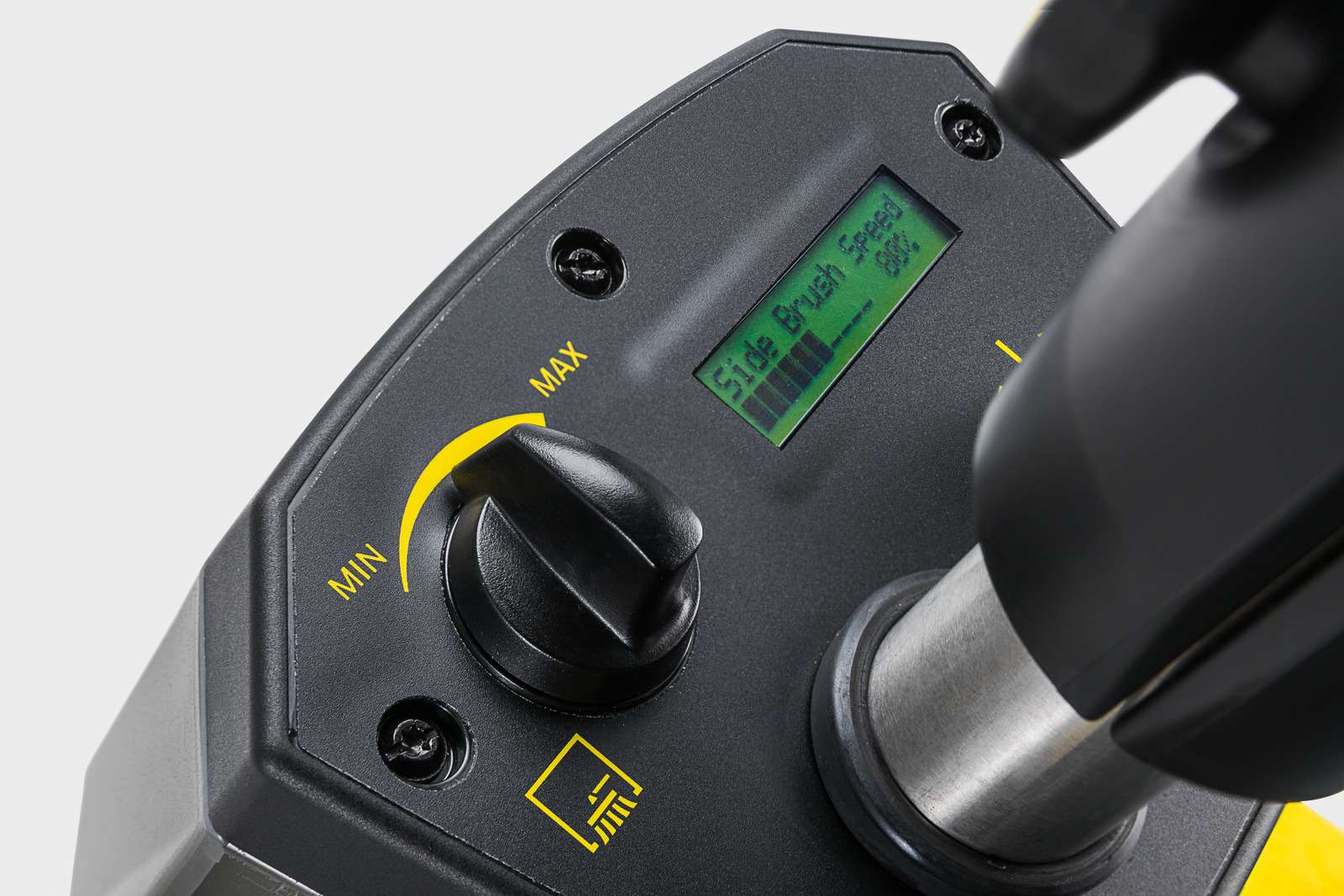

- Adjustable side brush speed
- Battery indicator
- Hour counter
- Trolley-mounted waste container
- Sweeping function (can be deactivated)
- Side brush (automatic extension)
- The sweeping roller automatically adjusts according to the level of wear
- Multi-function display
- Option for Home Base kit
