Description
HDS 5/11 UX high-pressure cleaner

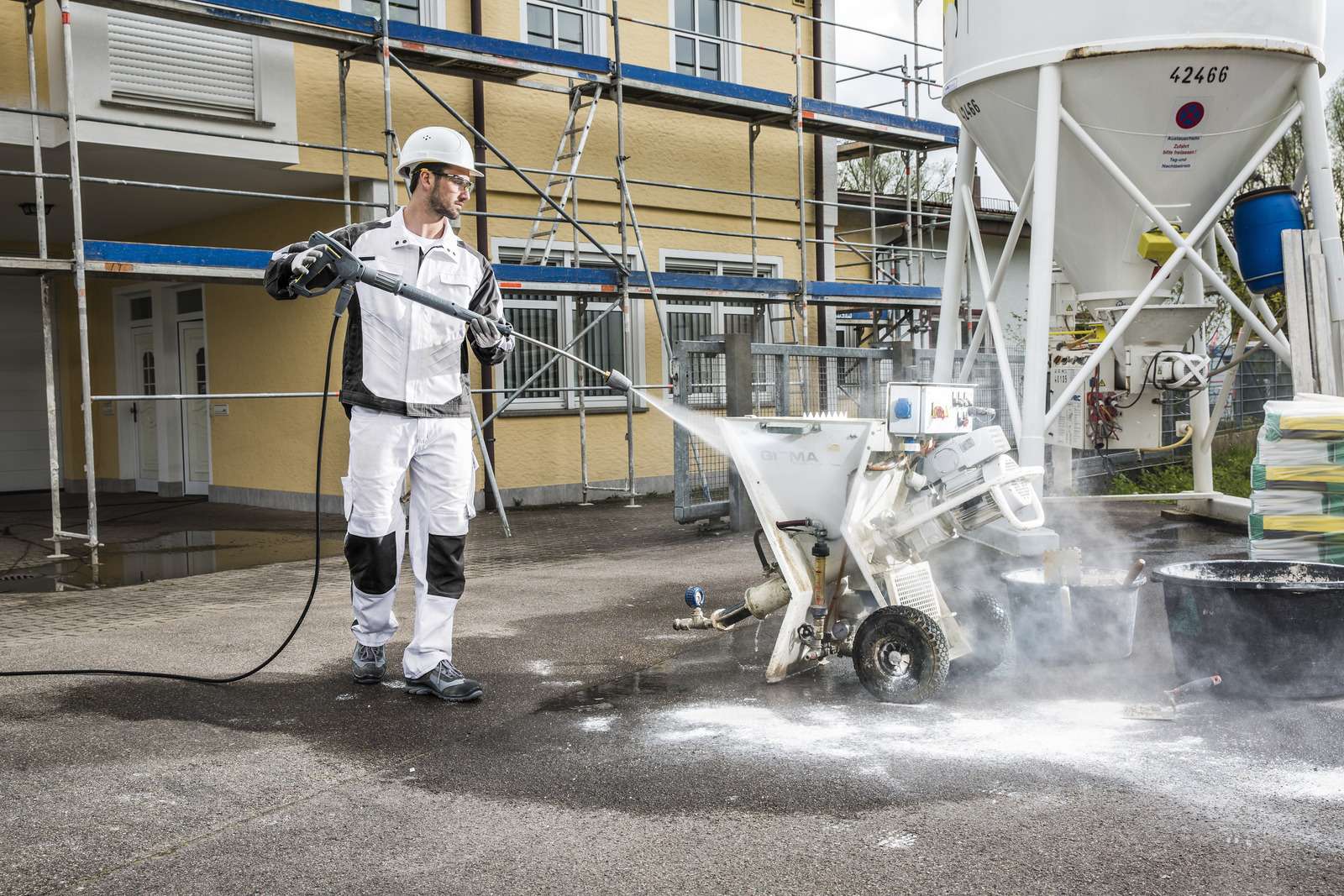

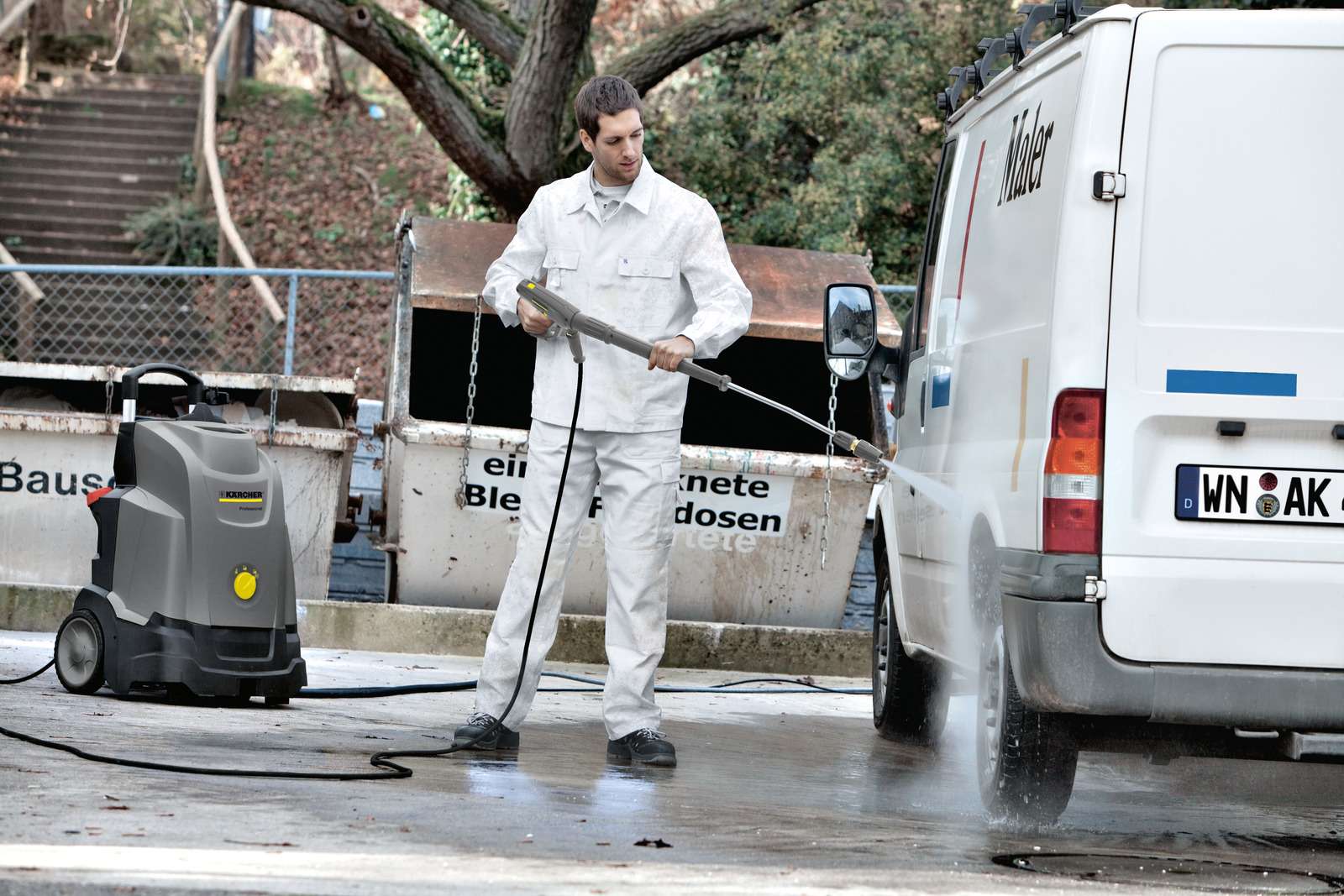

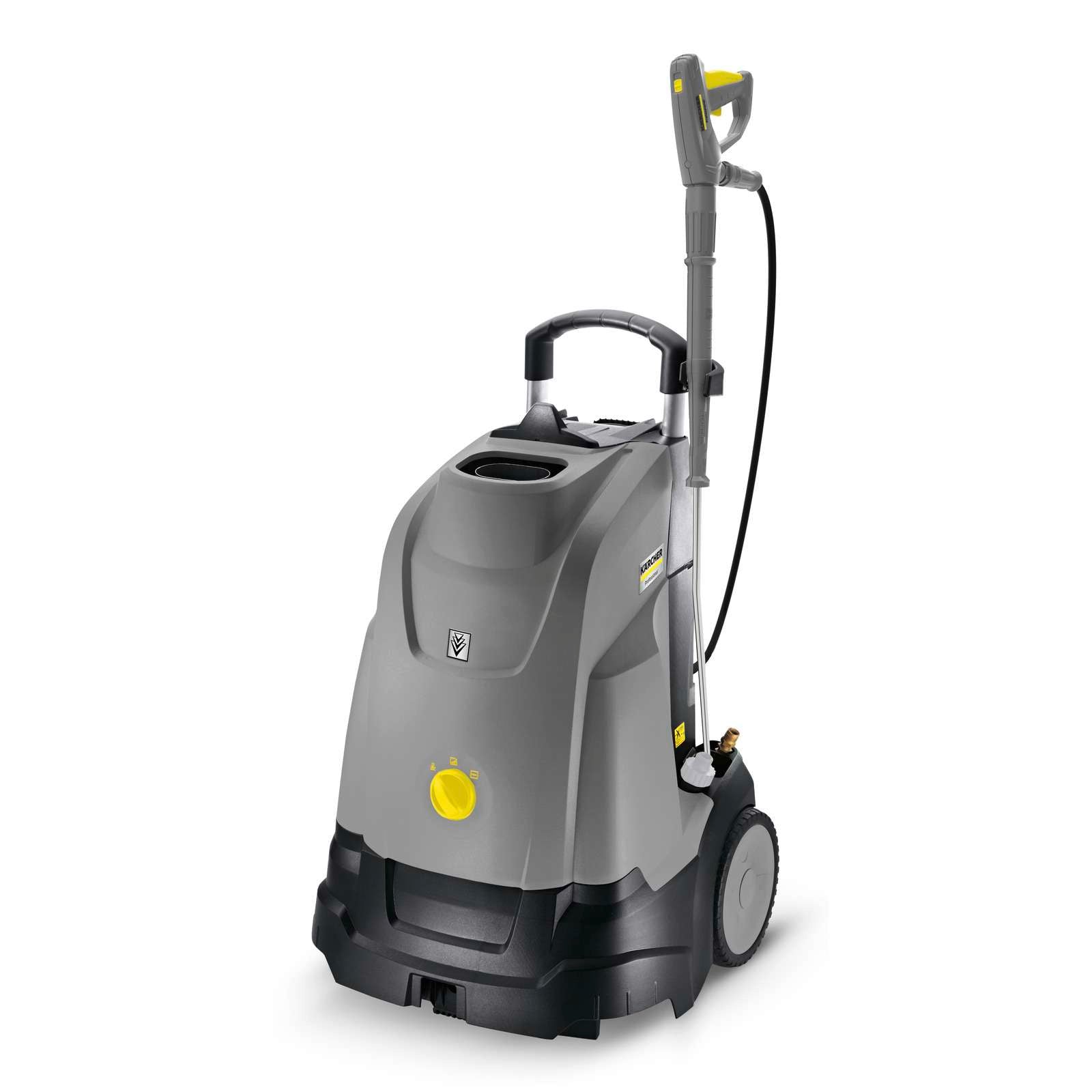

The HDS 5/11 UX hot water high-pressure cleaner features a vertical design for exceptional mobility and ergonomics, and a hose reel. It can be transported horizontally and is equipped with an EASY!Force gun. Vertical hot water high-pressure cleaners can be positioned horizontally and feature a two-pole, single-phase, air-cooled electric motor. They are lightweight and compact, with an ergonomic handle and wide wheels ensuring perfect maneuverability even on uneven surfaces. The 3-piston axial pump has stainless steel pistons and a brass cylinder head. The pressure switch automatically shuts off the machine when the gun is released, reducing wear. The high-pressure pump, burner fan, and heating pump are driven by an electric motor and are connected together to create a single drive module. The burner technology ensures excellent performance in confined spaces while complying with harmful gas emission limits. The 3-position control selector is located on the front cover. The EASY!Force gun uses the recoil from the high pressure to reduce the tension force to zero, while the EASY!Lock quick couplings are 5 times faster than conventional screw couplings and are robust and durable. Finally, the integrated hose reel facilitates set-up and dismantling operations.
Technical data
| Electrical connection (Ph/V/Hz) | 1 / 230 / 50 |
| Flow rate (l/h) | 450 |
| Working pressure (bar/MPa) | 110 / 11 |
| Temperature (°C) | max. 80 |
| Connected power (kW) | 2.2 |

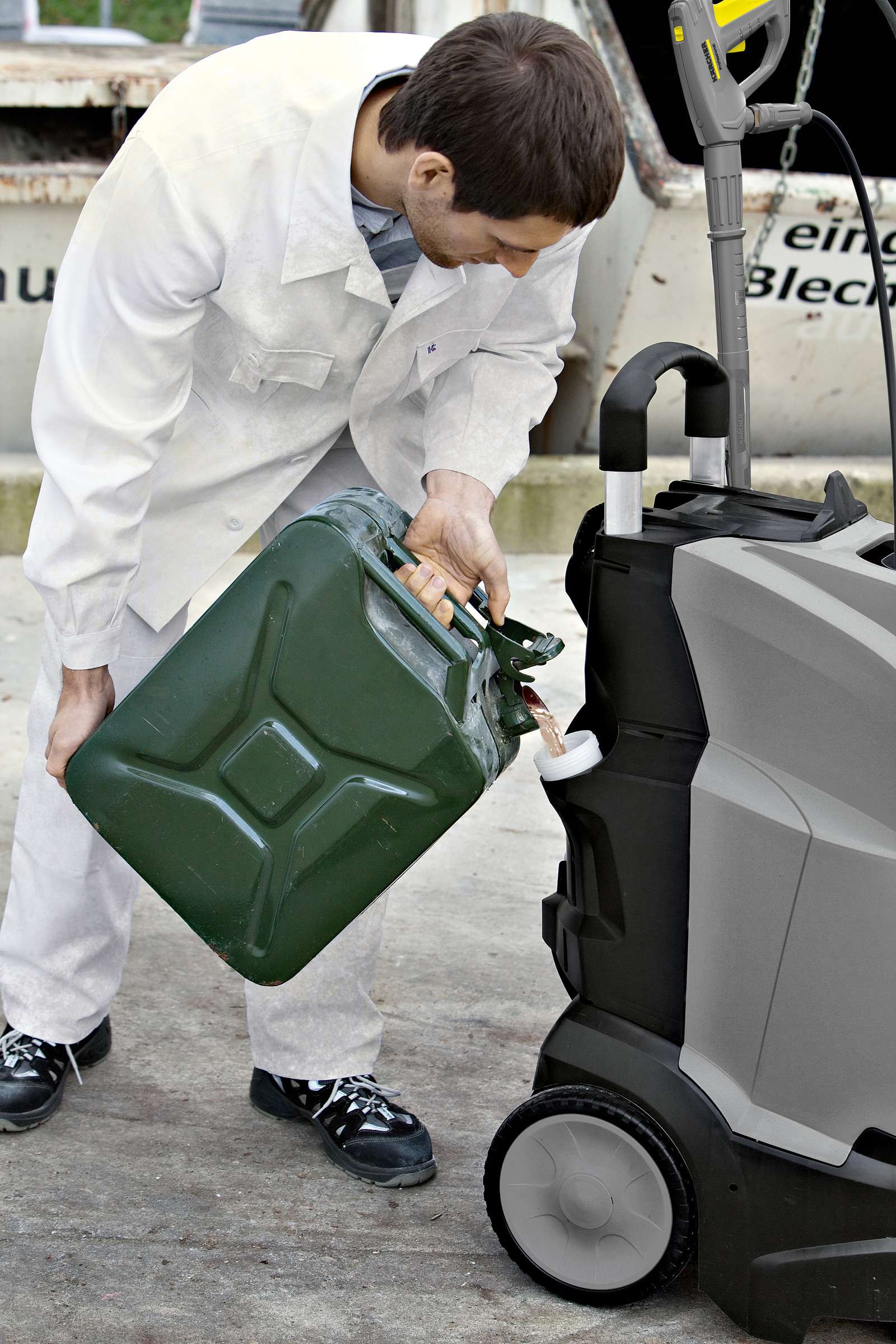

| Fuel oil consumption, at full load (kg/h) | 2.4 |
| Fuel tank (l) | 6.5 |
| Color | anthracite |
| Weight (with accessories) (kg) | 67.4 |
| Weight with packaging (kg) | 76.6 |
| Dimensions (L x W x H) (mm) | 618 x 1163 x 994 |
Scope of supply
Gun: EASY!Force Advanced
High-pressure hose length: 15 m
Spray lance: 840 mm
Equipment
Integrated hose reel
Pressure switch
