Description

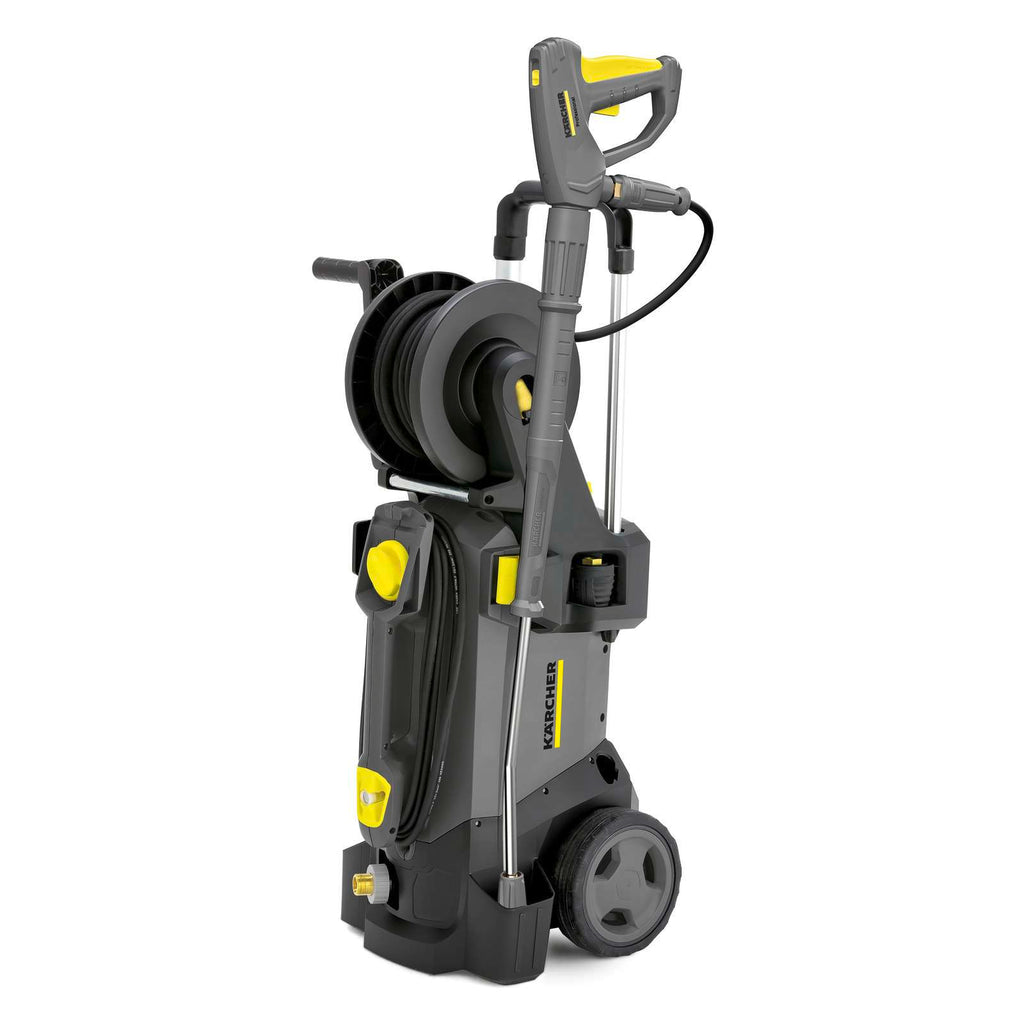

HD 5/17 CX Plus high-pressure cleaner
HD 5/17 CX Plus cold water high-pressure cleaner with rotating nozzle, hose reel, accessory compartment, brass nozzle and automatic pressure relief. Vertical and horizontal operation. The compact, lightweight and versatile HD 5/17 CX Plus cold water high-pressure cleaner offers exceptional versatility and is suitable for both vertical and horizontal operation. The machine is equipped with a sophisticated accessory compartment, while the brass head and automatic pressure release ensure a long service life. At the same time, it impresses with innovative new developments that increase operator productivity in the long term, ensuring effortless operation and time savings during setup and dismantling. The EASY!Force high-pressure gun uses the recoil of the high-pressure jet to reduce the holding force to zero, while the EASY!Lock quick-release fasteners make handling five times faster than traditional screw connections, without compromising strength and durability. Hose reel and dirt-eating rotating nozzle included.
Technical data
| Electrical connection (Ph/V/Hz) | 1 / 230 / 50 |
| Flow rate (l/h) | 480 |
| Water inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 170 / 17 |
| Max. pressure (bar/MPa) | 200 / 20 |
| Connected power (kW) | 3 |
| Electric cable (m) | 5 |
| Nozzle size (mm) | 27 |
| Water supply | 3/4″ |
| Color | anthracite |
| Weight (with accessories) (kg) | 27.9 |
| Weight with packaging (kg) | 30.8 |
| Dimensions (L x W x H) (mm) | 380 x 370 x 930 |
Scope of supply
Gun: EASY!Force
High-pressure hose length: 15 m
High-pressure hose specifications: DN 6, 200 bar
Spray lance: 840 mm
Rotating nozzle
Equipment
Hose reel
Cleaning function: Suction
Pressure switch
