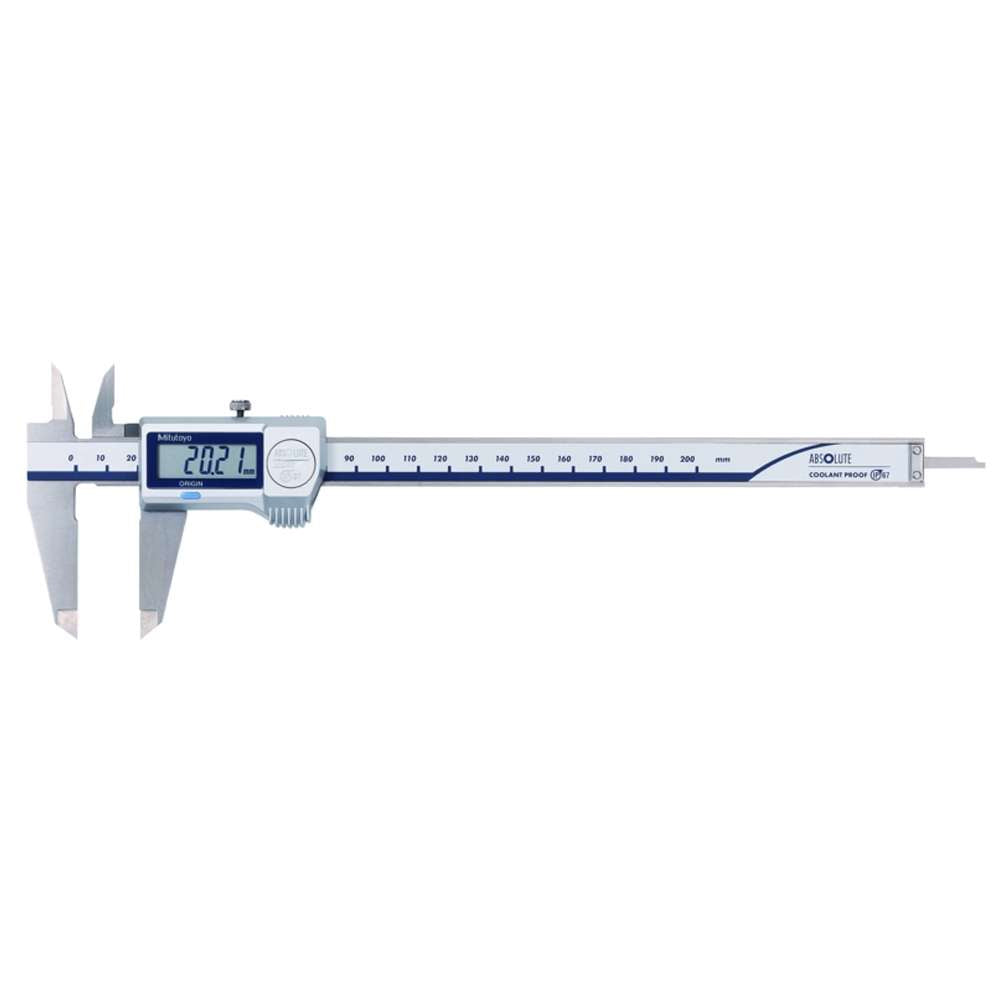

IP67 Waterproof ABS Caliper 0–200 mm 500-717-20 – Mitutoyo

The IP67 waterproof ABS 0–200 mm blade caliper, with data output, is a measuring instrument designed to provide precision, reliability, and durability even in the harshest working environments. Thanks to its IP67 certification, the caliper is fully protected against liquids and dust, allowing accurate measurements even in the presence of lubricants, coolants, and metal dust.

Compliant with EN60529, the instrument can be temporarily fully immersed in water without damage, making it ideal for mechanical workshops, industrial maintenance departments, and applications in extreme environmental conditions.

The ABS (absolute) system allows measurements to start immediately upon power-on without the need for zeroing, while the smooth-sliding slider ensures stable, precise, and comfortable movement. The high-contrast LCD display, with 9 mm digits, simplifies reading and reduces eye strain even during extended work sessions.

Thanks to the long-lasting battery, up to approximately 5 years under normal use, this IP67 caliper with data output provides extended autonomy and minimal maintenance requirements, ensuring continuity and efficiency in daily operations.

Technical Specifications

• Model: CD-P20K
• Measuring range: 0 – 200 mm
• Resolution: 0.01 mm
• Maximum permissible error (full range): ±0.02 mm
• Maximum permissible error S MPE: ±0.04 mm
• Depth rod: flat
• Response speed: unlimited
• Display: High-contrast LCD, digit height 9 mm
• ABS (absolute) system: yes
• Auto power-off after 20 minutes of inactivity: yes
• Low battery alarm: yes
• Data output: yes
• Battery life: approx. 5 years
• Weight: 198 g
• Supplied with: protective case and 1 battery included
