Inverter welder TIG 230 DC-HF/LIFT VRD 230V + Accessories - Telwin - 852055

TelwinSKU: 188_002_TAGL852055

Price:
Sale price€1.351,39
Availability : 1

Description

TECHNOLOGY TIG 230 DC-HF/LIFT VRD

Overview

TECHNOLOGY TIG 230 DC-HF/LIFT VRD

code 852055
Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Features:
- pulse and EASY pulse operation
- TIG regulations: "bi-level", start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC AC, square wave frequency
- THINSPOT function for quick and precise tack welding
- MMA regulations: arc force and hot start
- anti-stick device
- VRD device
- remote control connector
- thermostatic, overvoltage, undervoltage, overcurrent protections.

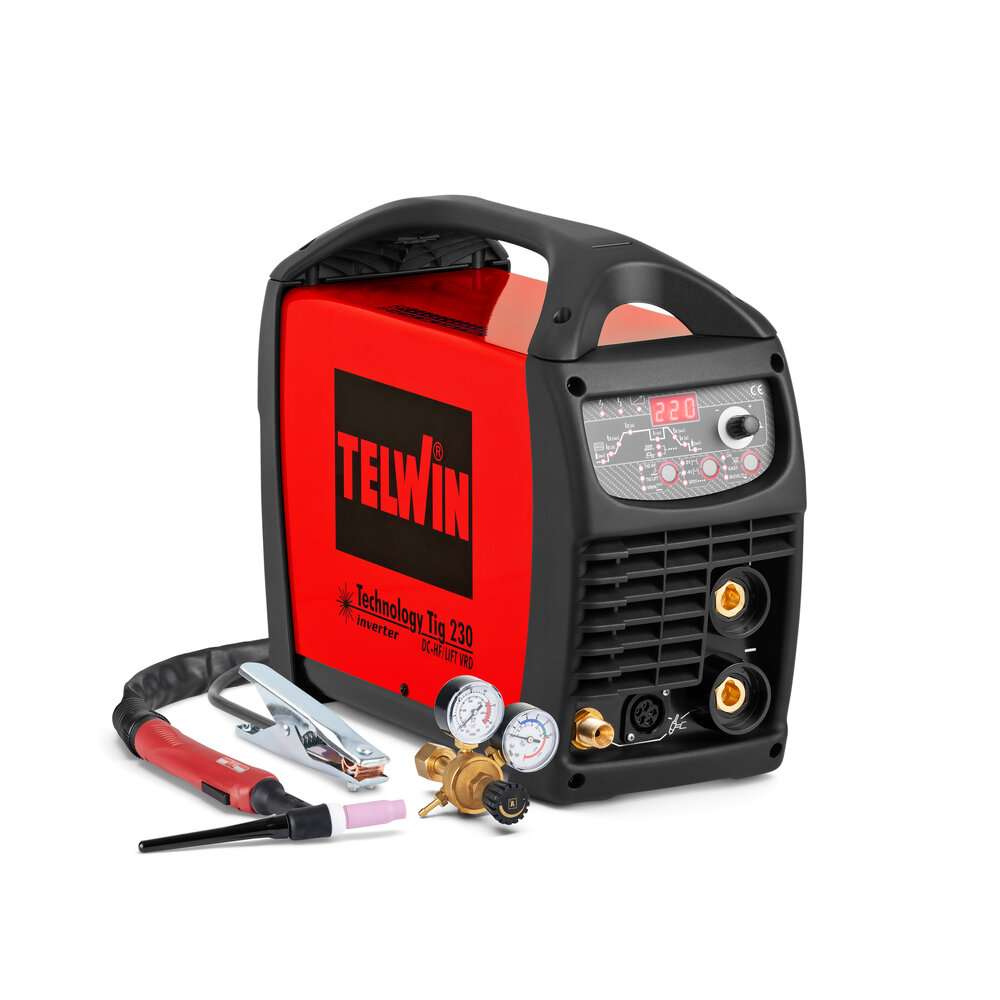

Complete with TIG welding accessories.



Technical data

BSORBED POWER AT 60% 4,1 kW
SINGLE PHASE MAINS VOLTAGE 230 V
MAINS FUSE 20 A
MAINS FREQUENCY 50 / 60 Hz
EFFICIENCY 86 %
CURRENT RANGE 10 - 220 A
POWER FACTOR 0,7
MAX CURRENT 220 @ 30 % A
D. USABLE ELECTRODES IN DC 1,6 - 4 mm
DC CURRENT 125 A
PROTECTION DEGREE IP23
MAX NO LOAD VOLTAGE 95 V
DIMENSIONS 43 x 17,6 x 34 cm
MAX ABSORBED CURRENT 36 A
WEIGHT 14,75
ABSORBED CURRENT AT 60% 26 A
EAN CODE 800489796588 8
MAX ABSORBED POWER 6 kW



Accessories

Included Accessories

ARGON GAS BOTTLE IT ADAPTOR: 432036
TOLEDO 300 WORK CLAMP: 712231
CABLE 25 MMQ 3 M ATLAS 50MMQ713504
GAS REGULATOR 2 MANOMETERS 12 L\min: 722119
ST26 TIG TORCH AX50 4M: 742614
