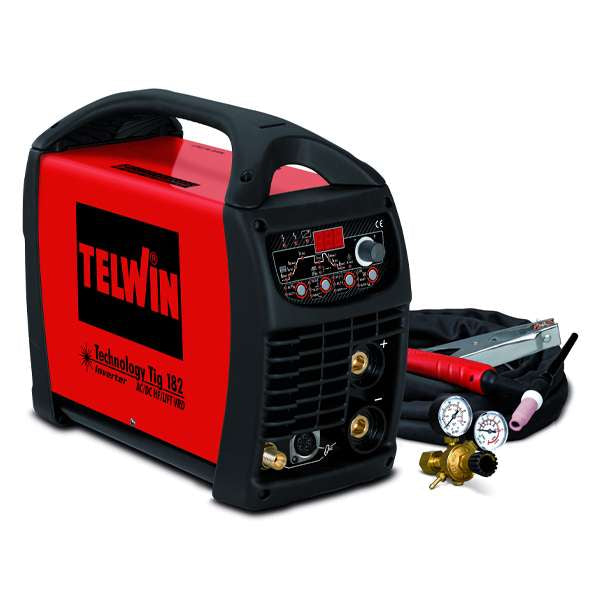

Inverter welder TIG 182 AC/DC-HF/LIFT 230V + Accessories - Telwin - 816824

TelwinSKU: 188_002_TAGL816824

Price:
Sale price€1.801,86
Availability : 2

Description

TECHNOLOGY TIG 182 AC/DC-HF/LIFT VRD

Overview

TECHNOLOGY TIG 182 AC/DC-HF/LIFT VRD

code 816824

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current and alternating current (AC/DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys, aluminium, magnesium and their alloys.
Features:
- pulse and EASY pulse operation
- adjustable pre-heatingfor simpler striking in AC
- TIG regulations: bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC AC, square wave frequency
- THINSPOT function for quick and precise tack welding
- MMA regulations: arc force and hot start
- anti-stick device
- VRD device
- remote control connector
- thermostatic, overvoltage, undervoltage, overcurrent protections.
Complete with TIG welding accessories.



Technical data

ABSORBED POWER AT 60% 3,3 kW
SINGLE PHASE MAINS VOLTAGE 230 V
MAINS FUSE 16 A
MAINS FREQUENCY 50 / 60 Hz
EFFICIENCY 81 %
CURRENT RANGE 5 - 180 A
POWER FACTOR 0,7
MAX CURRENT 180 @ 20 % A
D. USABLE ELECTRODES IN DC 1,6 - 4 mm
DC CURRENT 115 A
PROTECTION DEGREE IP23
MAX NO LOAD VOLTAGE 95 V
DIMENSIONS 43 x 17 x 34 cm
MAX ABSORBED CURRENT 33 A
WEIGHT 16,35
ABSORBED CURRENT AT 60% 21 A
PIECES/PALLET - B 20 pz/pallet B
MAX ABSORBED POWER 5,5 kW



Accessories

Included Accessories

ARGON GAS BOTTLE IT ADAPTOR: 432036
TOLEDO 400 WORK CLAMP: 712032
CABLE 25 MMQ 3 M ATLAS 50MMQ713504
GAS REGULATOR 2 MANOMETERS 12 L\min: 722119
ST17 TIG TORCH AX50 4M: 742856
