Description
Pneumatic wheel lifter v

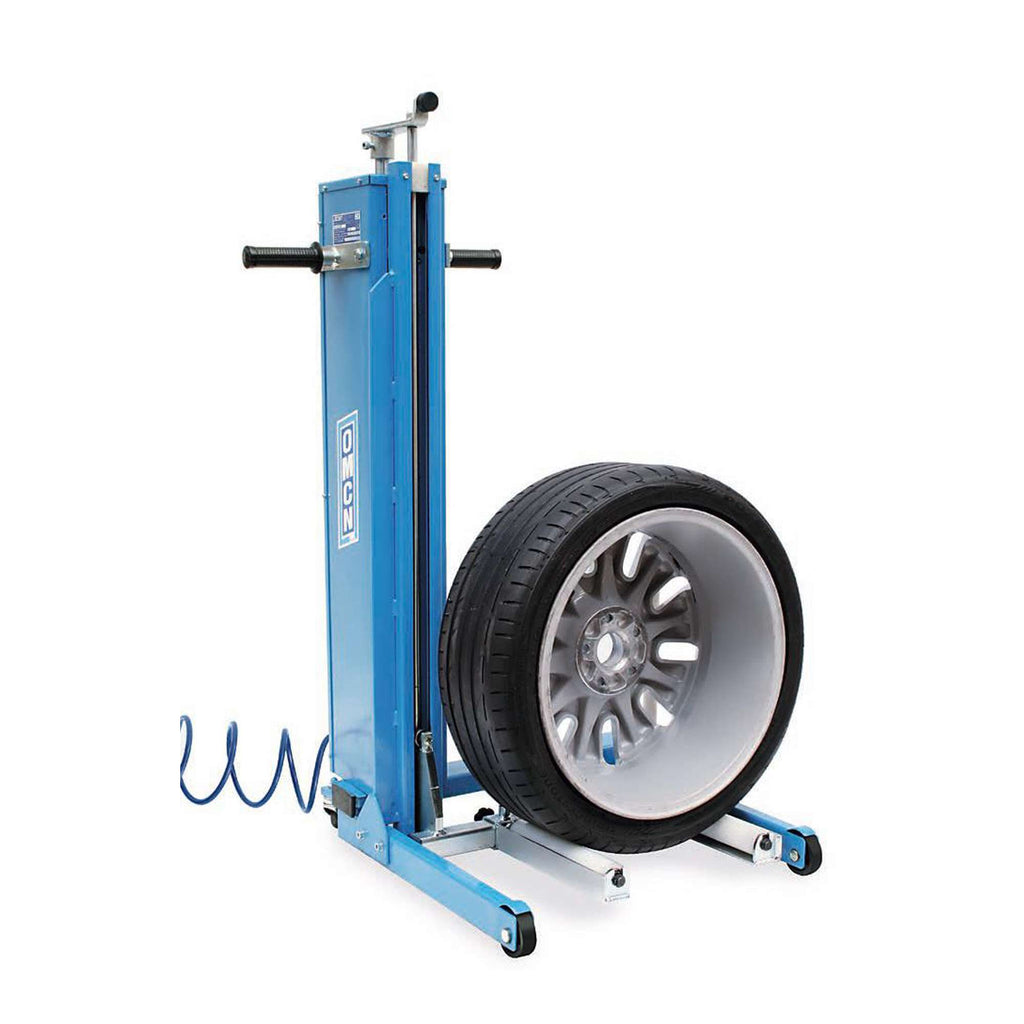

The OMCN SIF/XR IP hydraulic wheel lifter is a pneumatically driven unit designed to safely dismantle and reassemble wheels of cars, vehicles and SUVs over two-column or double scissor lifts.
It is capable of lifting tyres up to a maximum of 100 kg to a maximum height of 940 mm, producing a pressure of 8-10 bar.
It is equipped with 4 stable and agile wheels for comfortable working, while the rollers are made of a special material, adjustable in width and eccentric so as to offer fast bolt positioning.
Product dimensions can be seen in the table/photo below, with a weight of 60kg.
Features:
100kg lifting capacity
Pneumatic drive
Adjustable rollers
Technical Specifications
Lifting capacity 100kg
A 2100mm
B 1250mm
C 750mm
D 100mm
E 295mm
F 425mm
G 760mm
H 940mm
I 355mm
L 45mm
Weight 60kg
The OMCN SIF/XR IP hydraulic wheel lifter is a pneumatically driven unit designed to safely dismantle and reassemble wheels of cars, vehicles and SUVs over two-column or double scissor lifts.
It is capable of lifting tyres up to a maximum of 100 kg to a maximum height of 940 mm, producing a pressure of 8-10 bar.
It is equipped with 4 stable and agile wheels for comfortable working, while the rollers are made of a special material, adjustable in width and eccentric so as to offer fast bolt positioning.
Product dimensions can be seen in the table/photo below, with a weight of 60kg.
Features:
100kg lifting capacity
Pneumatic drive
Adjustable rollers
Technical Specifications
Lifting capacity 100kg
A 2100mm
B 1250mm
C 750mm
D 100mm
E 295mm
F 425mm
G 760mm
H 940mm
I 355mm
L 45mm
Weight 60kg
Delivery 10-15 days
