Description

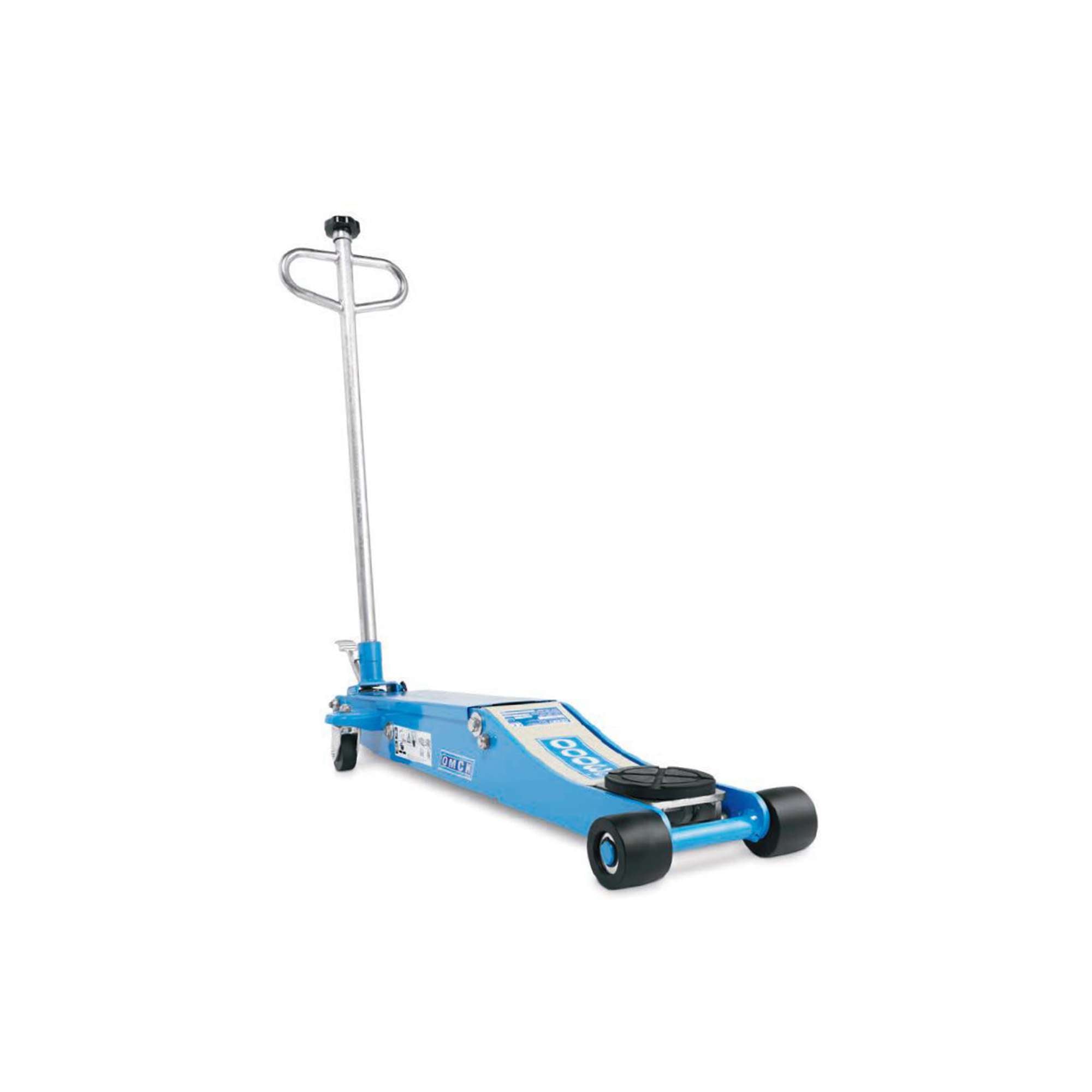

OMCN 3020 trolley jack
The OMCN 3020 trolley jack Top Series features a completely innovative design:
The grip points are significantly lowered (Only 90mm from the ground), the handle is ergonomic with manual lowering control, the support is a wide base plate (130mm diameter) made of rubber, the 4 wheels are made of nylon, 2 of which are fixed and 2 swivel. Model 3020 is also equipped with an approach pedal.
The jack is capable of lifting heavy loads of up to 3000kg from a minimum height of 90mm to a maximum of 505mm.
The product has a total weight of 39kg.
Features:
Lifting capacity of 3t
Lift height from min 90mm to max 505mm
Manual lowering control
Technical specifications
Lifting capacity 3t
Lifting height min/max (A-B) 90-505mm
Overall width (C) 290mm
Front wheel width (D) 275mm
Plate width (E) 130mm
Body height (F) 145mm
Total length (G) 1260mm
Lever length (H) 915mm
Weight 52kg
The OMCN 3020 trolley jack Top Series features a completely innovative design:
The grip points are significantly lowered (Only 90mm from the ground), the handle is ergonomic with manual lowering control, the support is a wide base plate (130mm diameter) made of rubber, the 4 wheels are made of nylon, 2 of which are fixed and 2 swivel. Model 3020 is also equipped with an approach pedal.
The jack is capable of lifting heavy loads of up to 3000kg from a minimum height of 90mm to a maximum of 505mm.
The product has a total weight of 39kg.
Features:
Lifting capacity of 3t
Lift height from min 90mm to max 505mm
Manual lowering control
Technical specifications
Lifting capacity 3t
Lifting height min/max (A-B) 90-505mm
Overall width (C) 290mm
Front wheel width (D) 275mm
Plate width (E) 130mm
Body height (F) 145mm
Total length (G) 1260mm
Lever length (H) 915mm
Weight 52kg
Delivery 10-15 days
