Description

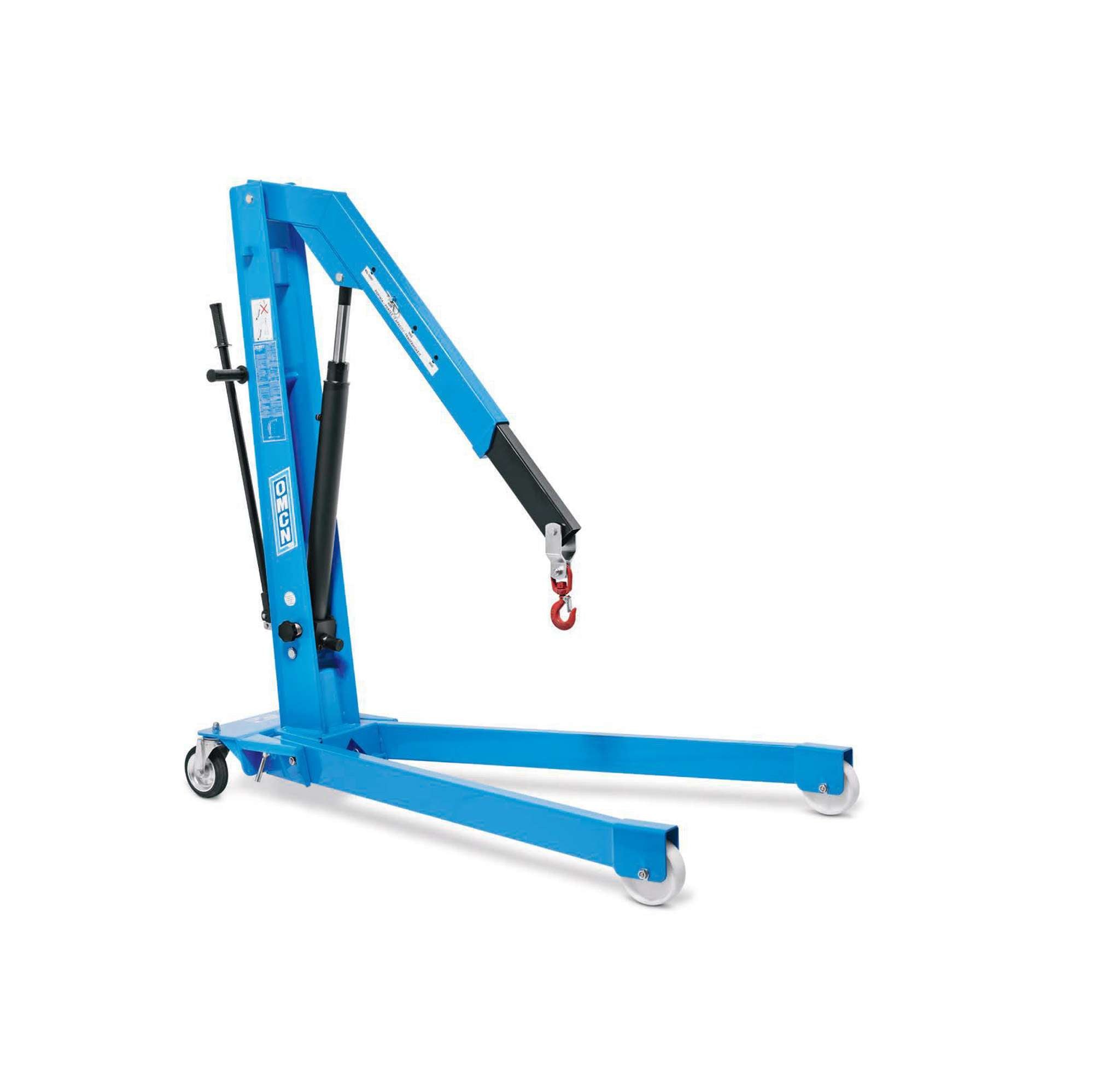

Hydraulic crane with folding trolley OMCN GP05/DE designed to facilitate transport and reduce workshop space requirements. Equipped with a two-speed hydraulic pump and a boom that can be extended in 4 positions with a capacity of 500-150 kg.
The hydraulic trolley crane model GP05/DE is mobile, thanks to its folding steel frame it can be dismantled in a short time, ensuring maximum practicality. The solid structure, made of robust materials, guarantees maximum reliability over time.
The structure rests on four wheels, two pivoting and two steering wheels, which guarantee great stability in all working positions to adapt to any use in any sector, even the most specific.
The load-bearing arm is extendable in four positions and guarantees a load capacity from 150 Kg when fully extended to 500 Kg when retracted.
Technical construction
Foldable in seconds
Minimal space required for storage
The ground and chrome-plated stem guarantees high reliability over time
Extendable arm in four working positions
Rear manoeuvring drawbar
Swivelling rear wheels for maximum manoeuvrability
360° swivelling hook
Built-in overload protection valve
Speed-controlled lowering control
Two-speed hydraulic pump
Rubber wheels
Dimensions and footprint
Overall dimensions 1540 x 900 mm
Load capacity 500 - 150 kg
Lift height 2360 mm
Lift at rest 400 mm
Delivery 10-15 days
