Description

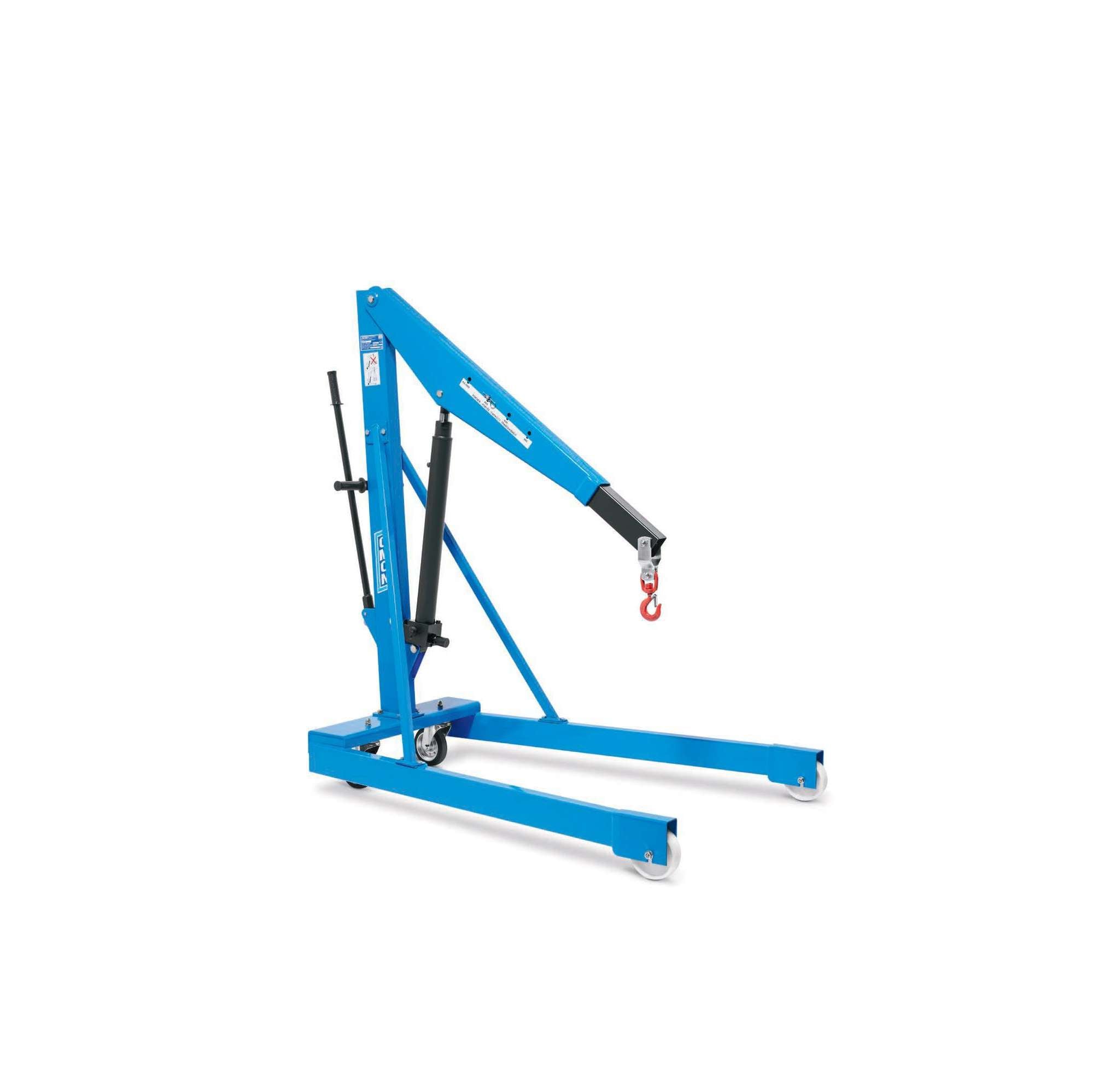

Hydraulic trolley crane with side tie-rods OMCN 133 equipped with rubber wheels and two-speed hydraulic pump. Boom extendable in 4 positions with lifting capacity of 500-150 kg.
The hydraulic trolley crane model 133 is mobile and therefore suitable for lifting and moving even very heavy loads easily and quickly. The structure is solid and sturdy, made of robust materials that guarantee reliability over time.
The structure rests on four wheels, two pivoting and two steering wheels, which guarantee great stability in all working positions to adapt to any use in any sector, even the most specific.
The load-bearing arm can be extended in four positions and guarantees a load capacity from 150 Kg when fully extended to 500 Kg when retracted.
Technical construction
The ground and chrome-plated rod guarantees high reliability over time
Extendable arm in four working positions
Swivelling rear wheels for maximum manoeuvrability
360° swivelling hook
Equipped with side tie rods
Built-in overload protection valve
Speed-controlled lowering control
Two-speed hydraulic pump
Rubber wheels
Dimensions and footprint
Overall dimensions 1295 x 900 mm
Load capacity 500 - 150 kg
Lift height 2355 mm
Standing height 435 mm
Delivery 10-15 days
