Description

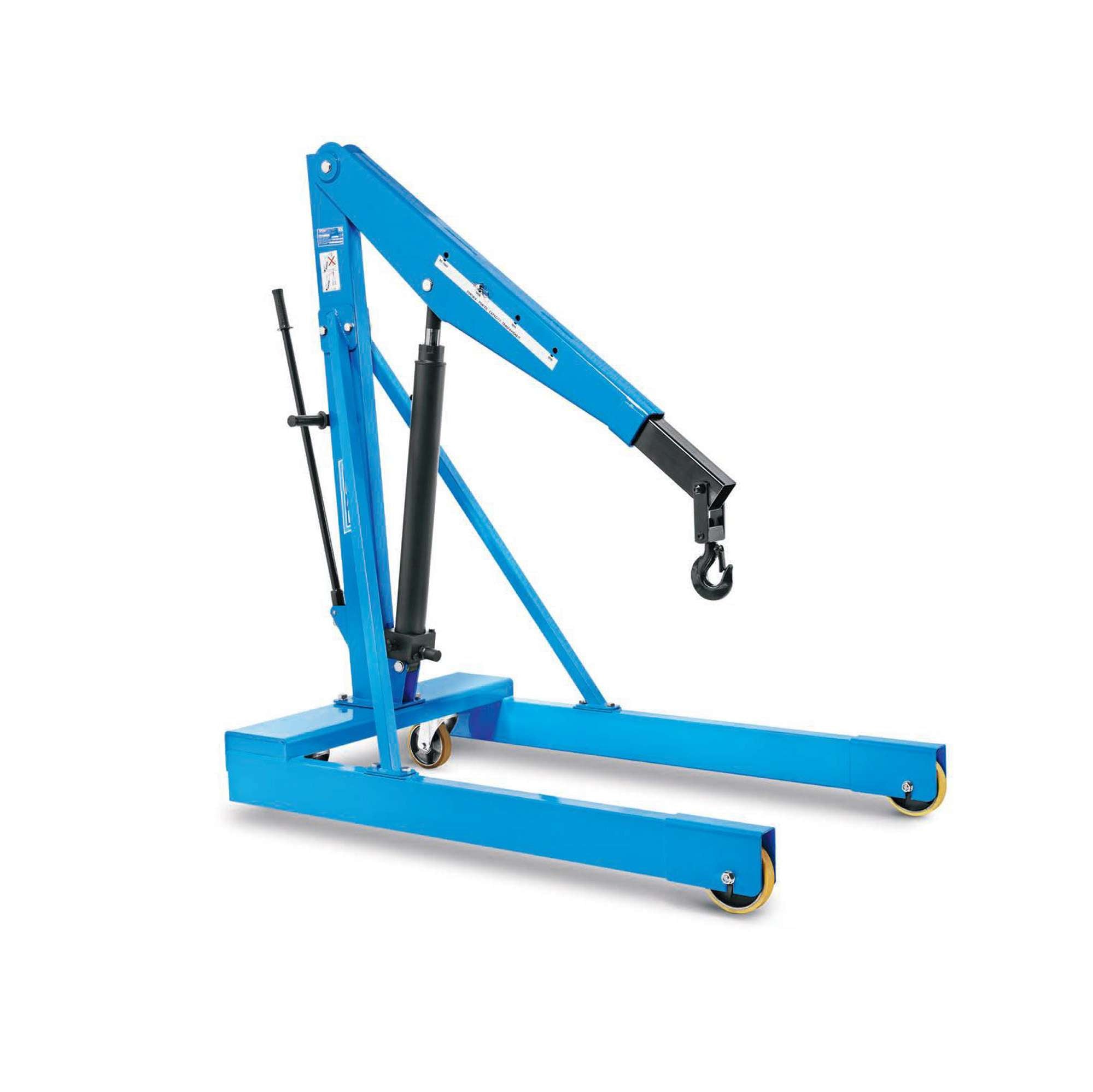

Hydraulic trolley crane with side tie-rods OMCN SL/20 equipped with wheels and two-speed hydraulic pump. Boom extendable in 4 positions with capacity of 2000-600 kg compatible with euro-pallets.
The hydraulic trolley crane model SL/20 is mobile, therefore suitable for lifting and moving even very heavy loads easily and quickly. The structure is solid and sturdy, made of robust materials that guarantee reliability over time.
The structure rests on four wheels, two pivoting and two steering wheels, which guarantee great stability in all working positions to adapt to any use in any sector, even the most specific. The wide forks allow it to fit around the pallet to facilitate the unloading of goods.
The load arm can be extended in four positions and guarantees a load capacity from 600 kg when fully extended to 2000 kg when retracted.
Technical construction
The ground and chrome-plated rod guarantees high reliability over time
Extendable arm in four working positions
Swivelling rear wheels for maximum manoeuvrability
Compatible with EU pallets
360° swivelling hook
Equipped with side tie-rods
Built-in overload protection valve
Speed-controlled lowering control
Two-speed hydraulic pump
Dimensions and footprint
Overall dimensions 1910 x 1120 mm
Load capacity 2000 - 600 kg
Lift height 3110 mm
Lift at rest 315 mm
Delivery 10-15 days
