Description

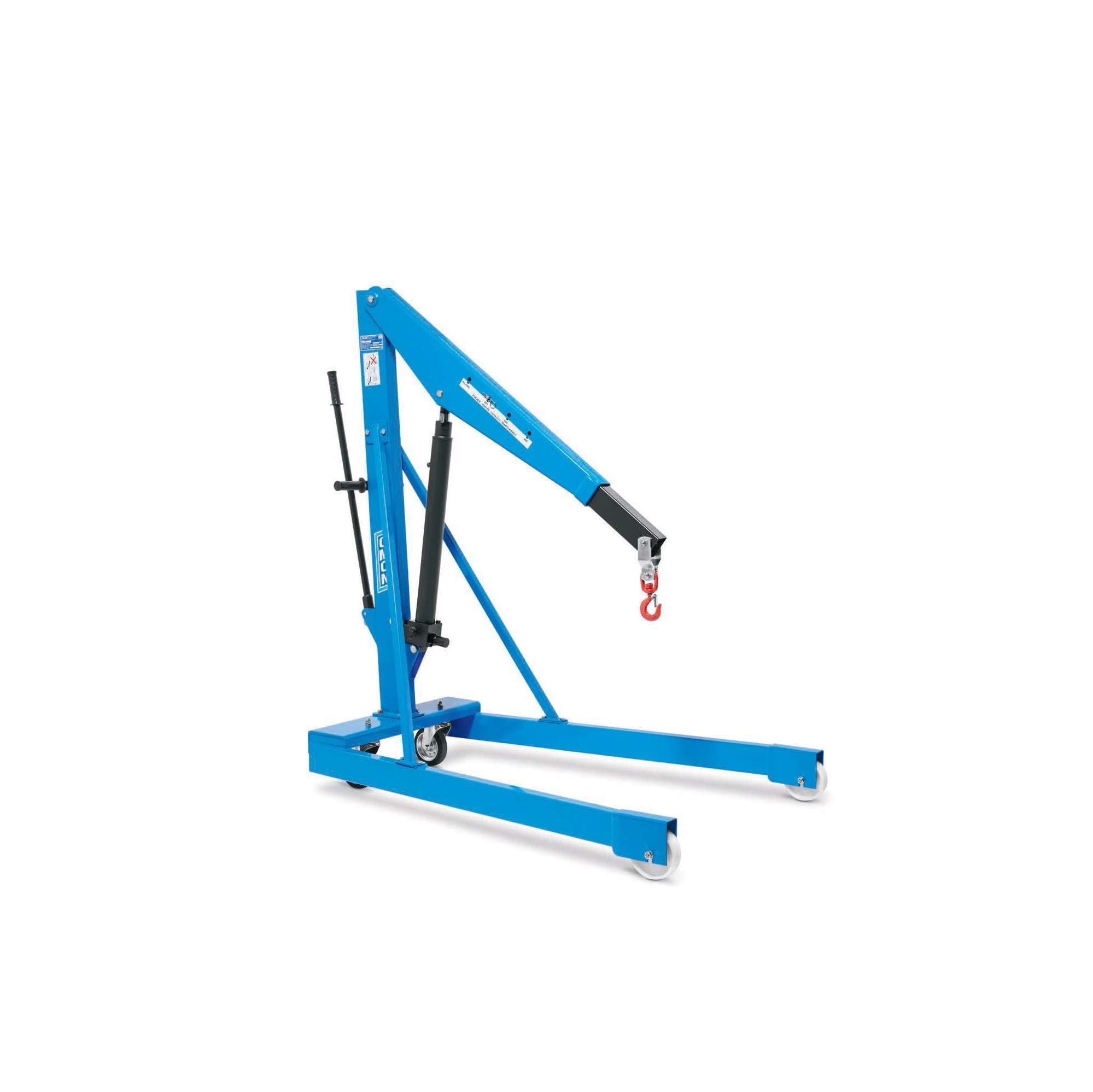

Hydraulic trolley crane with side tie-rods OMCN 134 equipped with rubber wheels and two-speed hydraulic pump. Boom extendable in 4 positions with a capacity of 1000-300 kg.
The hydraulic trolley crane model 134 is mobile and therefore suitable for lifting and moving even very heavy loads easily and quickly. The structure is solid and sturdy, made of robust materials that guarantee reliability over time.
The structure rests on four wheels, two pivoting and two steering wheels, which guarantee great stability in all working positions to adapt to any use in any sector, even the most specific.
The load-bearing arm is extendable in four positions and guarantees a load capacity from 300 Kg when fully extended to 1000 Kg when retracted.
Technical construction
The ground and chrome-plated rod guarantees high reliability over time
Extendable arm in four working positions
Swivelling rear wheels for maximum manoeuvrability
360° swivelling hook
Equipped with side tie rods
Built-in overload protection valve
Speed-controlled lowering control
Two-speed hydraulic pump
Rubber and nylon wheels
Dimensions and footprint
Overall dimensions 1530 x 1075 mm
Load capacity 1000 - 300 Kg
Lift height 2670 mm
Lift at rest 470 mm
Delivery 10-15 days
