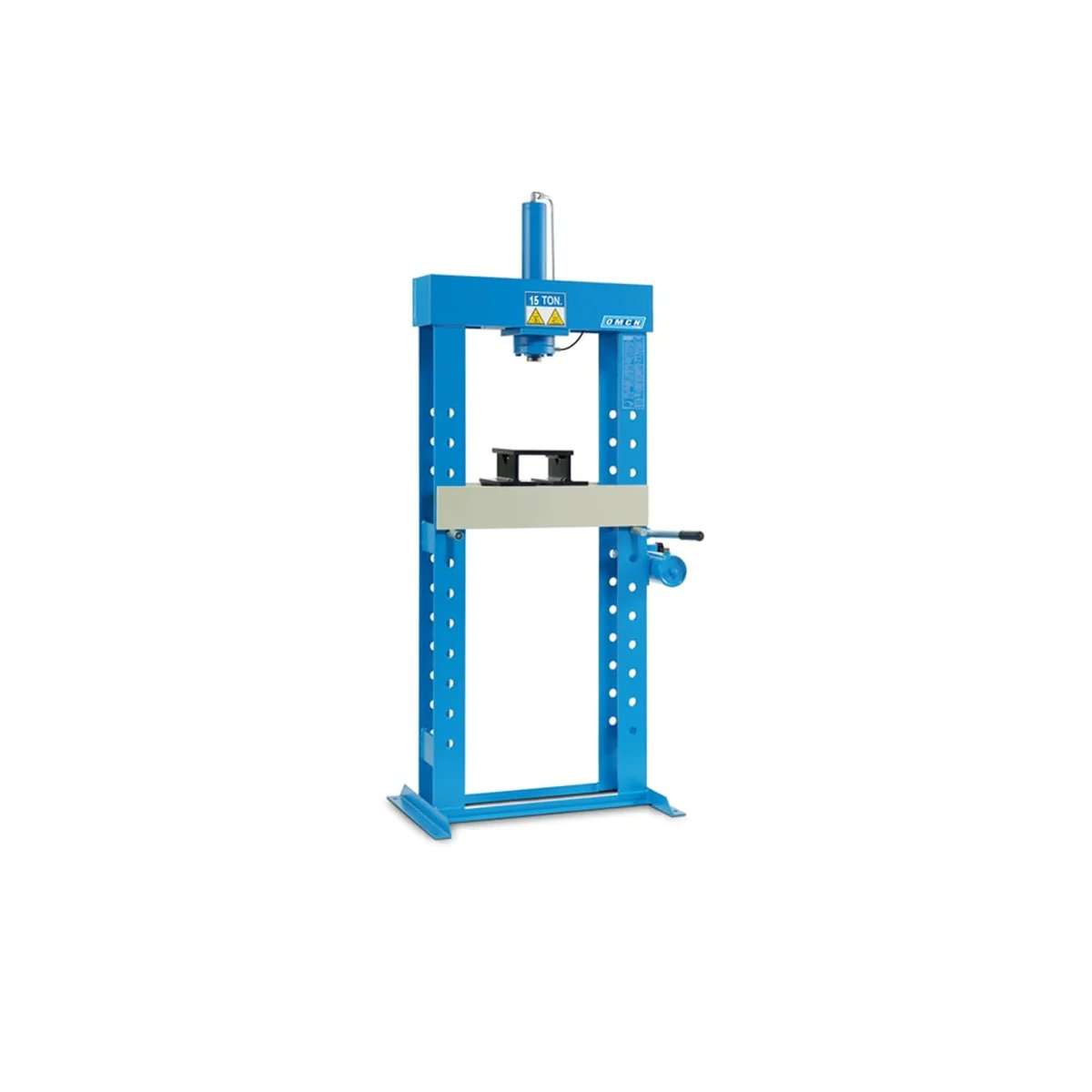

Hydraulic press with two-speed hand pump capacity 15 ton - OMCN 155

OMCN 155 hydraulic press with manual operation via a two-speed hand pump and a robust base frame structure that provides maximum stability and minimum floor space requirements.

Thanks to the perforated frame, the support base is height-adjustable to 12 different positions so that workpieces of the most diverse dimensions can be processed.

rapid approach
precision

Indispensable in the workshop and in the industrial sector, perfect for pressing metal objects, such as when assembling mechanical assemblies, pressing bearings or pulleys onto shafts.

Made in Italy and CE certified press made of robust materials that guarantee reliability over time and is capable of generating a force of 15000 kg.

Technical construction layout
Cylinder rod in special steel, treated and chrome-plated
Steel spring inserted in the cylinder for rapid stem return
Two-speed hand pump
Management of the two speeds by handwheel on the pump
Maximum versatility
Height adjustable in 12 positions
Base with holes for floor fixing
Hole plate and pair of V-shaped prisms supplied as standard
Dimensions and footprint
Overall dimensions 1930 x 930 x 500 mm
Pressure 15 tons
Piston stroke 190 mm
Piston diameter 40 mm
