Description

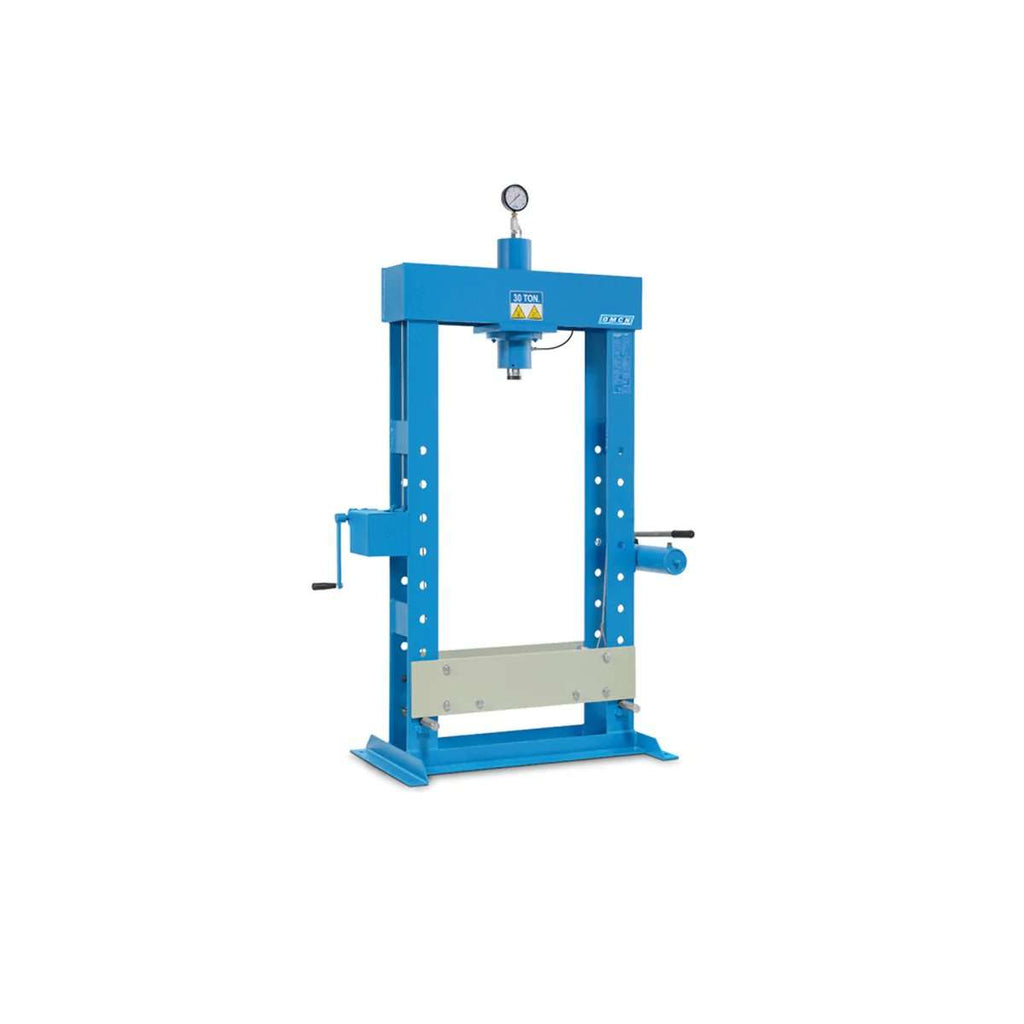

OMCN P30/SA hydraulic press with manual actuation by means of a two-speed hand pump and a robust base frame structure that provides maximum stability and minimum floor space requirements.
Thanks to the perforated frame, the support base is height-adjustable to 9 different positions so that the press can be adapted to work with different workpiece sizes. The winch allows the pallet to be lifted quickly and conveniently.
rapidity in approach
precision
Indispensable in the workshop and in the industrial sector, perfect for pressing metal objects, such as when assembling mechanical assemblies, pressing bearings or pulleys onto shafts.
Made in Italy and CE certified press made of robust materials that guarantee reliability over time and is capable of generating a force of 30000 kg.
Technical construction layout
Sturdy welded steel structure
Cylinder rod in special, treated and chrome-plated steel
Steel spring inserted in the cylinder for rapid stem return
Two-speed hand pump
Rapid approach and precision during operation
Management of the two speeds by handwheel on the pump
Maximum versatility
Winch for lifting the pallet quickly and conveniently
Base with holes for fixing to the floor
Large diameter pressure gauge supplied as standard
Dimensions and footprint
Overall dimensions 2180 x 1300 x 600 mm
Pressure 30 tonnes
Piston stroke 190 mm
Piston diameter 60 mm
Thanks to the perforated frame, the support base is height-adjustable to 9 different positions so that the press can be adapted to work with different workpiece sizes. The winch allows the pallet to be lifted quickly and conveniently.
rapidity in approach
precision
Indispensable in the workshop and in the industrial sector, perfect for pressing metal objects, such as when assembling mechanical assemblies, pressing bearings or pulleys onto shafts.
Made in Italy and CE certified press made of robust materials that guarantee reliability over time and is capable of generating a force of 30000 kg.
Technical construction layout
Sturdy welded steel structure
Cylinder rod in special, treated and chrome-plated steel
Steel spring inserted in the cylinder for rapid stem return
Two-speed hand pump
Rapid approach and precision during operation
Management of the two speeds by handwheel on the pump
Maximum versatility
Winch for lifting the pallet quickly and conveniently
Base with holes for fixing to the floor
Large diameter pressure gauge supplied as standard
Dimensions and footprint
Overall dimensions 2180 x 1300 x 600 mm
Pressure 30 tonnes
Piston stroke 190 mm
Piston diameter 60 mm
Delivery 10-15 days
