Description

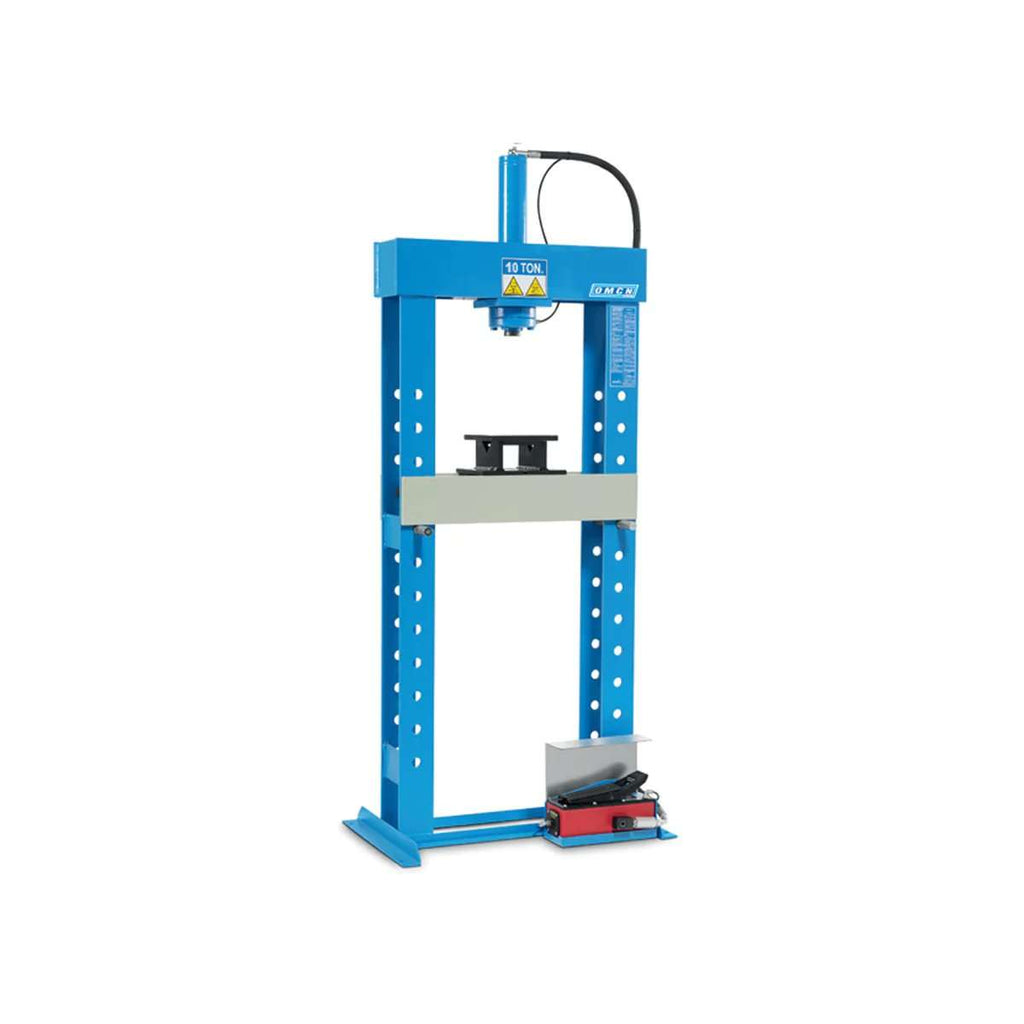

OMCN 154/IP hydropneumatic press with foot pedal actuation that allows working with both hands free. Robust base frame construction that provides maximum stability and minimum floor space requirements.
Thanks to the perforated frame, the base frame is height-adjustable to 12 different positions so that workpieces of different sizes can be processed.
+ fast approach
+ precision
+ easy to operate
Indispensable in the workshop and in the industrial sector, perfect for pressing metal objects, such as when assembling mechanical assemblies, pressing bearings or pulleys onto shafts.
Made in Italy and CE certified press made of robust materials that guarantee reliability over time and is capable of generating a force of 10000 Kg.
Technical construction layout
Cylinder rod in special steel, treated and chrome-plated
Steel spring inserted in the cylinder for rapid stem return
Foot-operated hydropneumatic pump allows work with both hands free
Maximum versatility
Height adjustable in 12 positions
Base with holes for floor fixing
Pinch plate and pair of V-shaped prisms supplied as standard
Dimensions and footprint
Overall dimensions 1910 x 780 x 500 mm
Pressure 10 tons
Piston stroke 190 mm
Piston diameter 40 mm
Pneumatic supply 6 - 8 bar
Rod speed 450 mm/min
Delivery 10-15 days
