Description

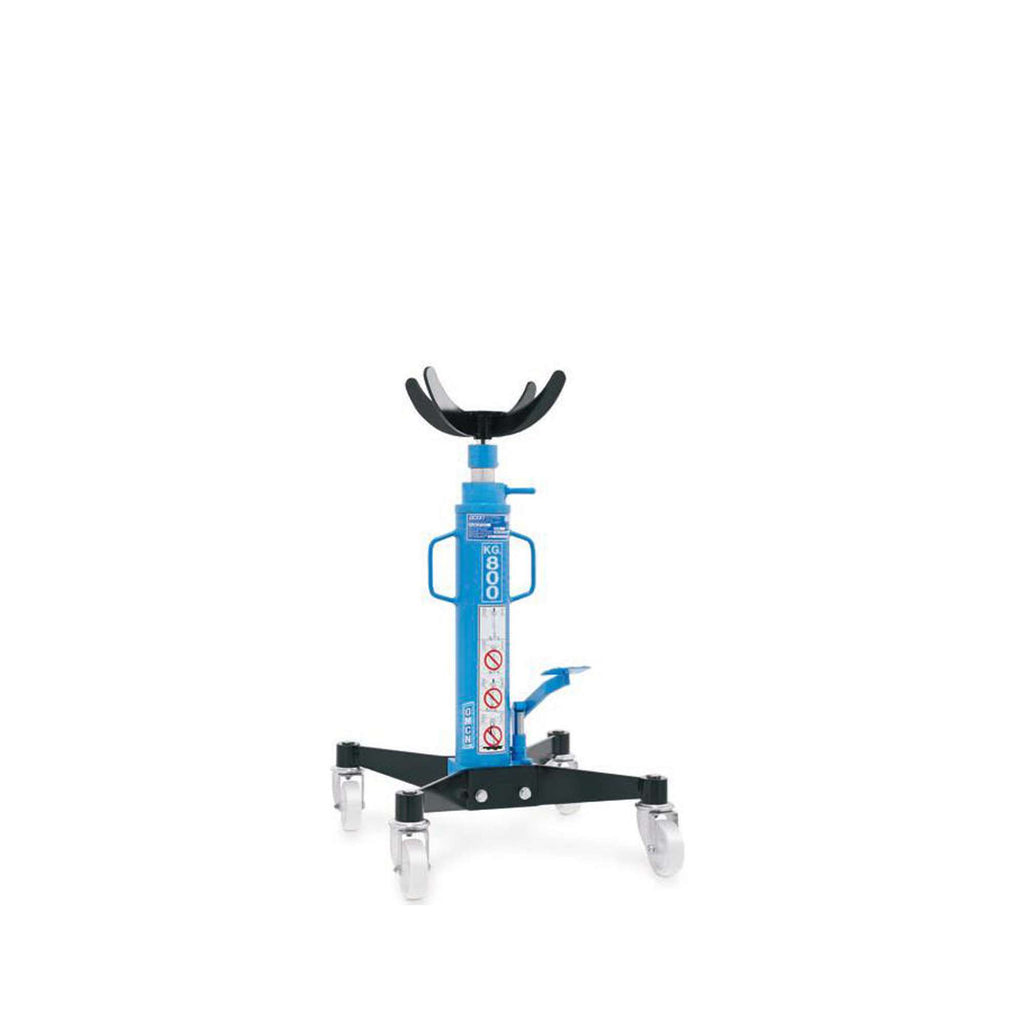

Two-stage 800 kg OMCN SIF7/73 hydraulic pit and undercarriage lift
The SIF7/73 lift is ideal for use in the workshop and garage for assembly work on gearboxes, engines or axles. With this item, heavy and particularly awkward work is made easy and safe.
Made of robust materials, it provides a lifting capacity of 800 kg, from a minimum height of 920 mm, made possible by the two-stage cylinder, and a maximum of 1880 mm.
Equipped with an overload protection valve.
The product has a total weight of 48kg.
Features:
Lifting capacity of 800kg
Width min 920mm to max 1880mm
Double-stage cylinder
Technical specifications
Capacity 800kg
A 1880mm
B 920 mm
C 530x530 mm
D 100 mm
E 320 mm
F Ø 30 mm
Weight 48 kg
Delivery 10-15 days
