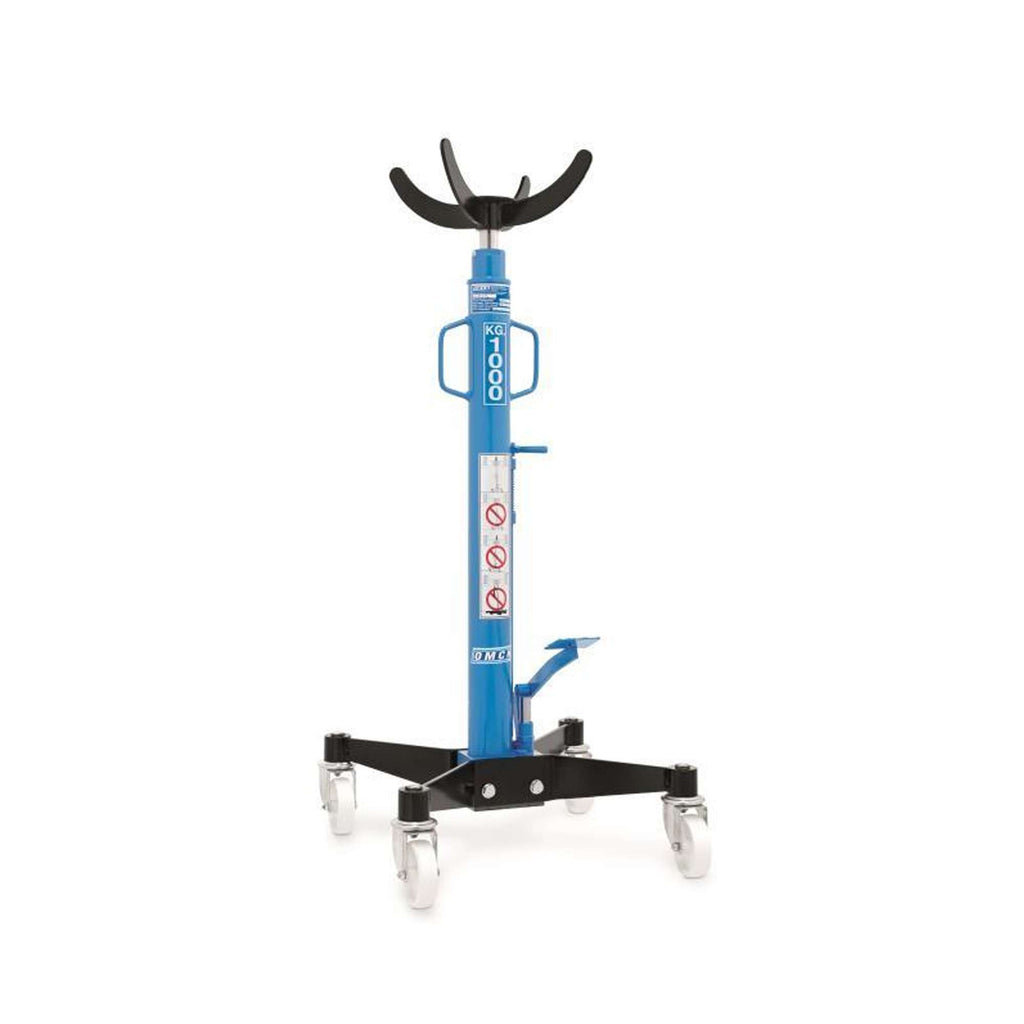

Hydraulic Pit and Undercarriage Lifter OMCN SIF2/A/73
The OMCN SIF2/A/73 hydraulic pit and under-bridge lifter is designed for lifting/lowering loads during vehicle maintenance or repair operations.
Equipped with a ground and chrome-plated special steel stem and 4 large wheels mounted on bearings, this lifter offers excellent manoeuvrability and reliability during use.
The lift can lift loads of up to 600kg from a minimum height of 1180mm to a maximum of 1960mm.
To ensure operator safety, the lift is equipped with an overload protection valve and a speed-controlled 'man-present' lowering control.
The product has a total weight of 37kg.
Features:
Lifting capacity of 600kg
Lifting height from a min of 1180 to a max of 1960mm
Overload protection valve
Technical Specifications
Lifting capacity 600kg
Maximum height (A) 1960mm
Min. height (B) 1180mm
Base (C) 520x520mm
Wheel width (D) 80mm
Base width (E) 320mm
Stem diameter Ø30mm
Weight 37kg
Delivery 10-15 days
