Description

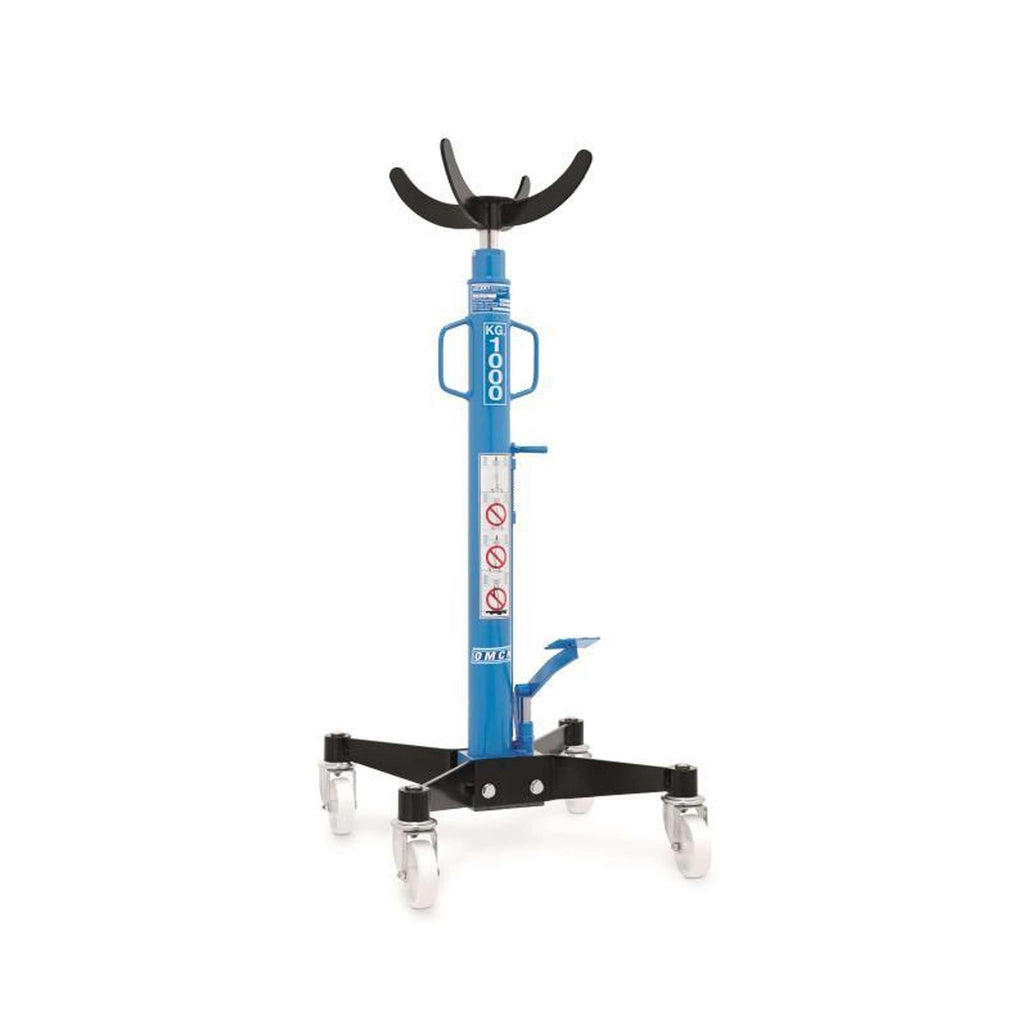

OMCN's Hydraulic Pit and Undercarriage Lifter is a machine designed for lifting/lowering loads in automotive maintenance and repair operations.
The SIF3/73 lift is ideal for use in workshops and garages. Assembly work on the gearbox, engine and rear axles, as well as lifting work under the vehicle are made much easier and faster with its help.
It is made of robust materials that guarantee long-term reliability and is capable of lifting weights of up to 1500 kg.
The main safety system on the machine is the load limiter that secures the lift against overloading. This device ensures that the internal pressure does not exceed the value of the maximum rated capacity.
Technical construction layout
Ground and chrome-plated special steel stem
Large wheels mounted on bearings
Overload protection valve
Maximum manoeuvrability
Speed-controlled 'man-present' descent control
4-arm mounting bracket
Lift loads up to 1500 kg
Dimensions and footprint
Overall dimensions 540 x 540 mm
Maximum working height 2020 mm
Minimum working height 1220 mm
Piston diameter 45 mm
Delivery 10-15 days
