Description

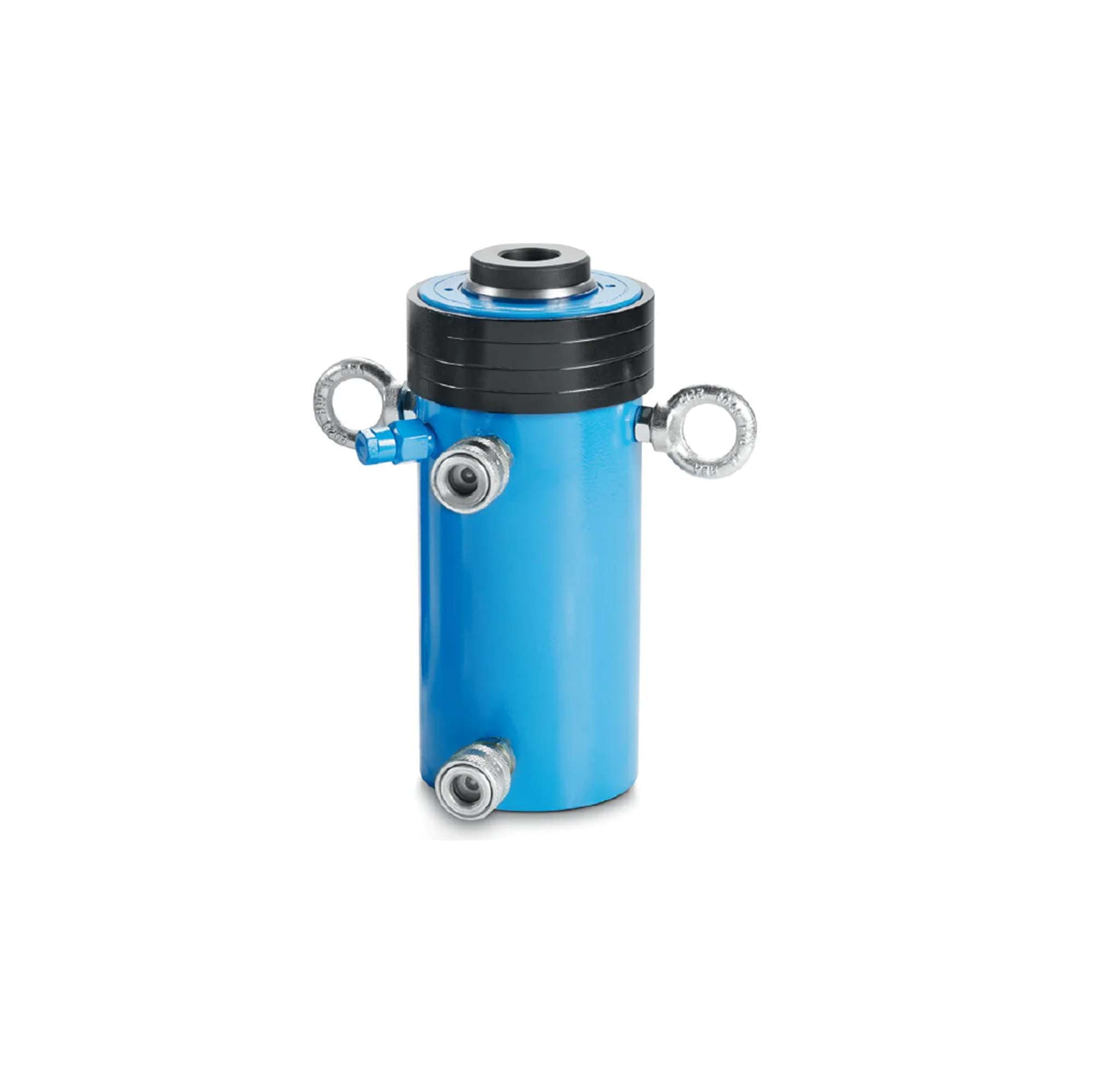

Double-acting hydraulic cylinder for lifting up to a maximum of 48 tonnes and 32 tonnes of thrust.
Made of high-quality materials.
The maximum working pressure is 700 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 48t
Working pressure 700bar
Oil capacity 671.4cm³
Dimensions A 360mm
Dimensions B 270mm
Dimensions C 90mm
Dimensions D 90mm
Dimensions E 20mm
Dimensions F 30mm
Dimensions G M160X3,5mm
Dimensions H 25mm
Dimensions I M76X3mm
Dimensions L 98mm
Dimensions M M12
Dimensions N 54mm
Weight 37kg
Delivery 10-15 days
