Description

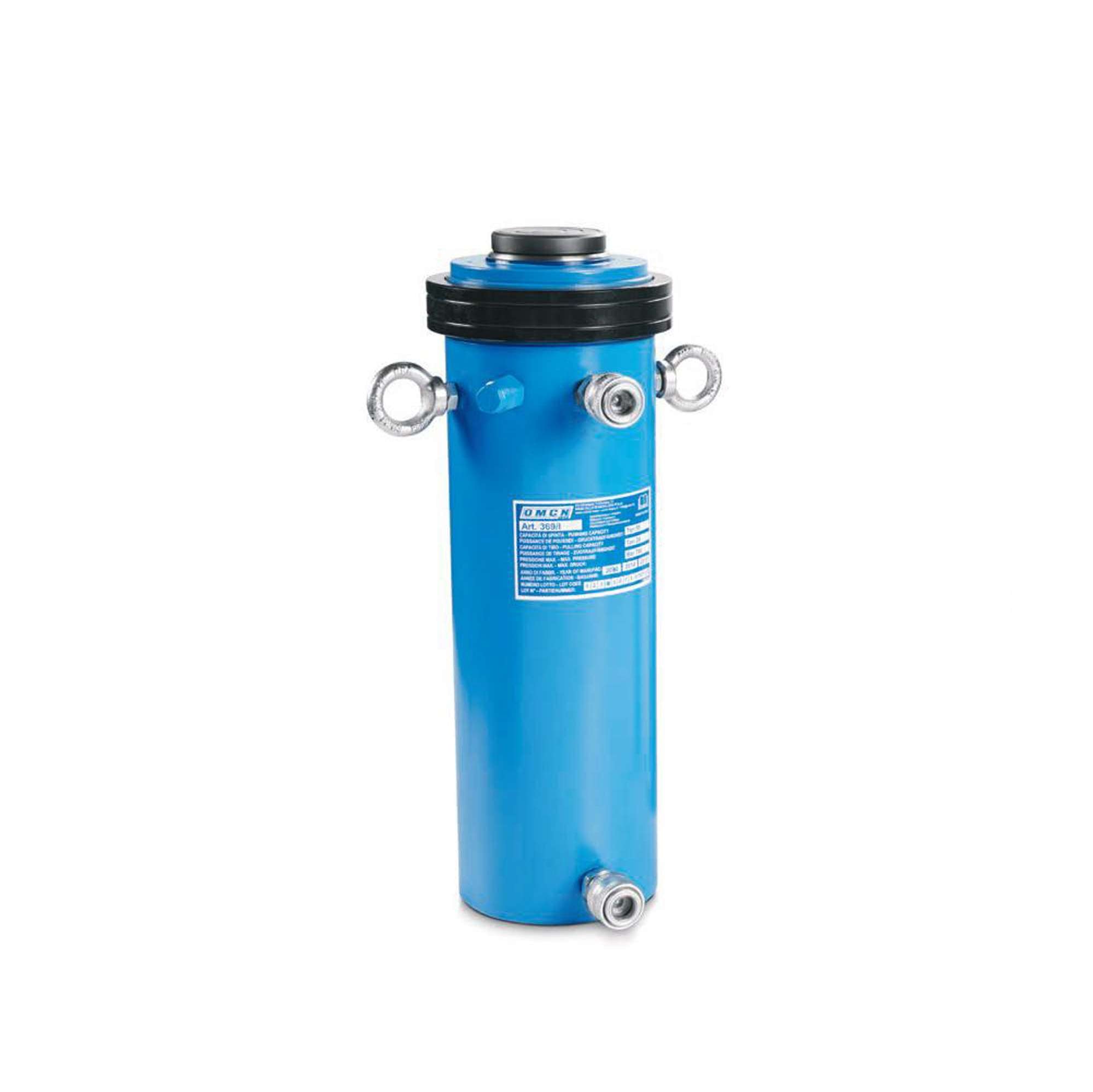

Double-acting hydraulic cylinder for lifting up to a maximum of 35 tonnes. Made of high-quality materials.
The maximum working pressure is 700 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 35t
Working pressure 700 bar
Oil capacity 1582cm³
Dimensions A 785mm
Dimensions B 470mm
Dimensions C 315mm
Dimensions D 60mm
Dimensions E 14mm
Dimensions F 35mm
Dimensions G M104X2mm
Dimensions H 45mm
Dimensions I M20X2,5mm
Dimensions L 60mm
Dimensions M M10
Weight 23.5kg
Delivery 10-15 days
