Description

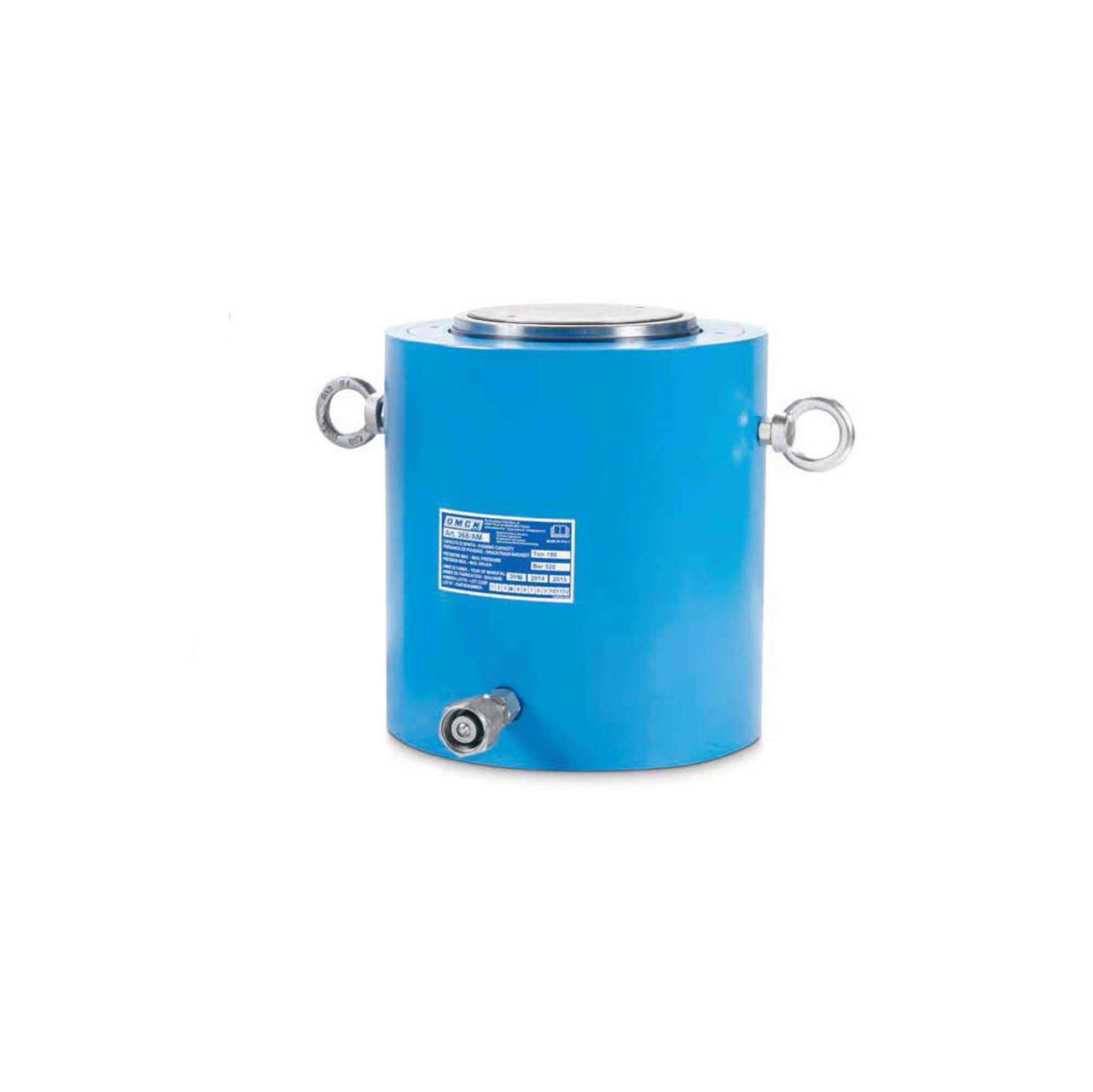

High-power hydraulic cylinder with spring return for lifting up to 190 tonnes. Made of high-quality materials.
The maximum working pressure is 520 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 190t
Working pressure 520 bar
Oil capacity 1709cm³
Dimensions A 295mm
Dimensions B 250mm
Dimensions C 45mm
Dimensions D 170mm
Weight 91,5kg
Delivery 10-15 days
