Description

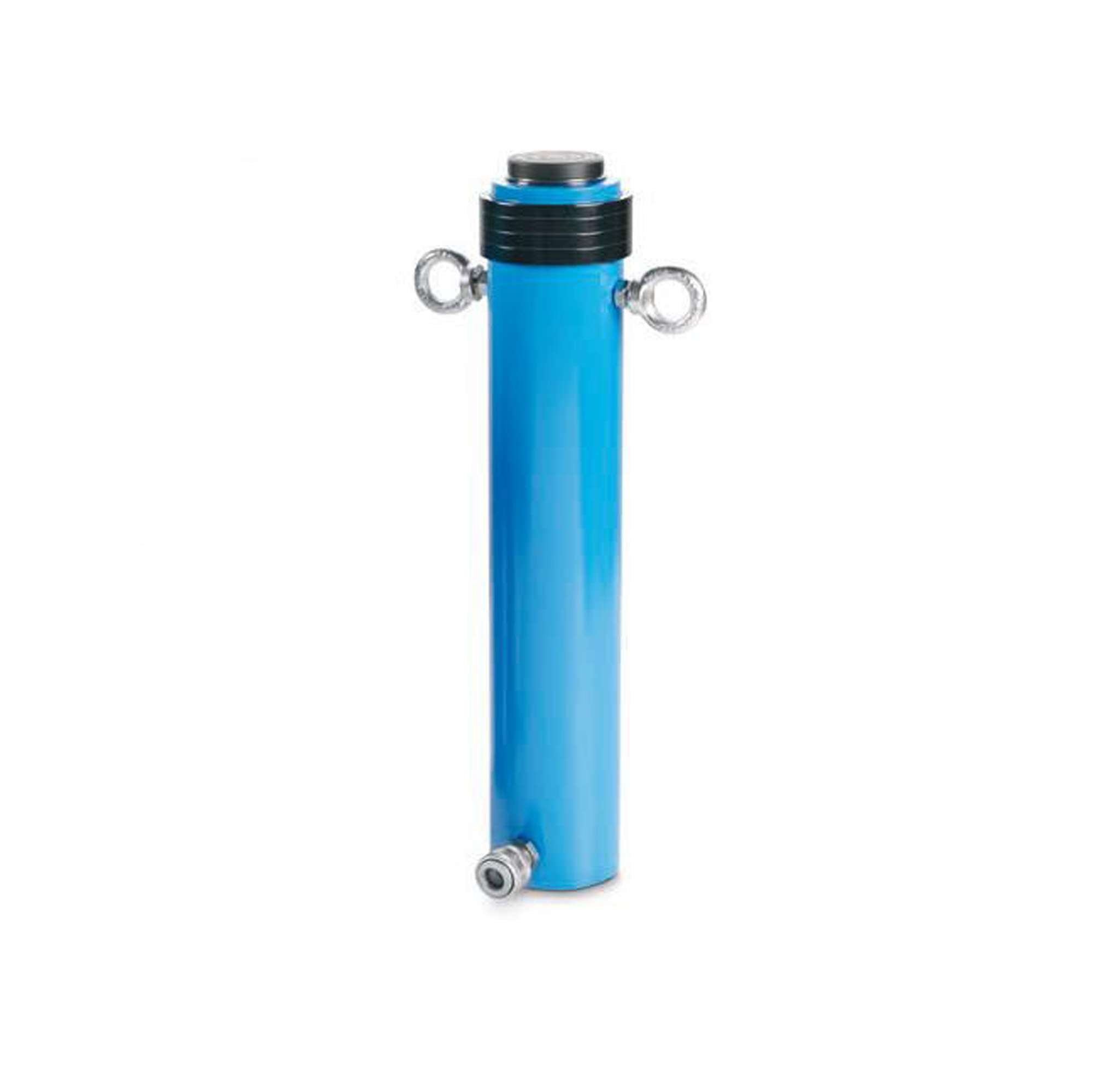

Long-stroke hydraulic cylinder with spring return for lifting up to a maximum of 5 tonnes. Made of high-quality materials.
The maximum working pressure is 700 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 5t
Working pressure 700bar
Oil capacity 178cm³
Dimensions A 470mm
Dimensions B 295mm
Dimensions C 175mm
Dimensions D 30mm
Dimensions E 20mm
Dimensions F 25mm
Dimensions G M50X2mm
Dimensions H 12mm
Dimensions I M16X2mm
Dimensions L 32mm
Dimensions M M8
Weight 2.9kg
Delivery 10-15 days
