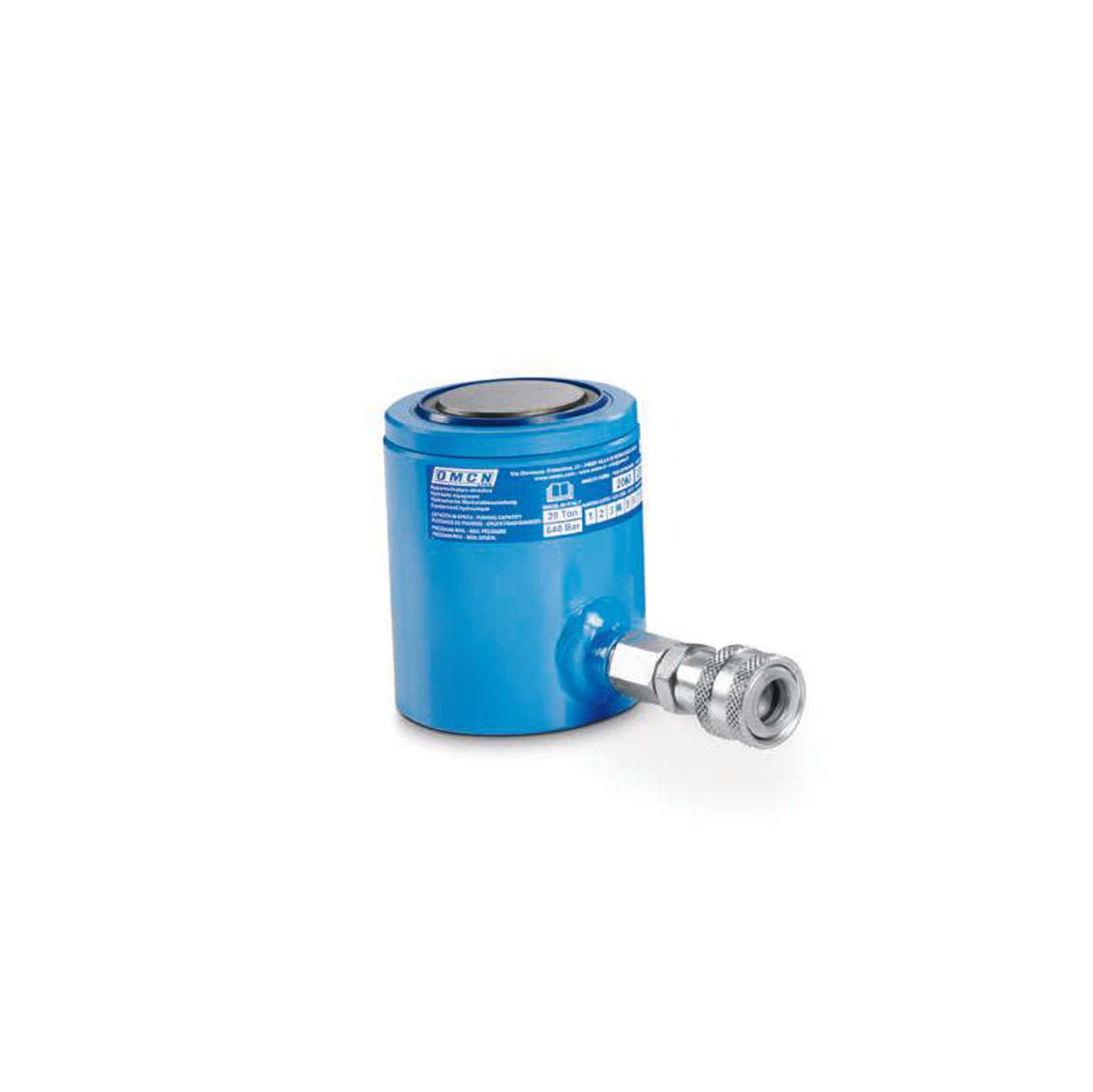

Hydraulic cylinder 5 ton capacity with spring return H.155mm - OMCN 359/BM

OMCNSKU: 346_025_359/BM

Price:
Sale price Login to view price
Availability : 1
Download datasheet

Description

Space-saving hydraulic cylinder with spring return for lifting up to a maximum of 5 tonnes. Made of high quality materials.


The maximum working pressure is 700 bar and the product weight is 1 kg.


The table below shows the features of the OMCN jack.



Technical Specifications
Capacity 5t
Working pressure 700bar
Oil capacity 52.8cm³
Dimensions A 155mm
Dimensions B 100mm
Dimensions C 55mm
Dimensions D 30mm
Weight 1kg

Delivery 10-15 days
