Description

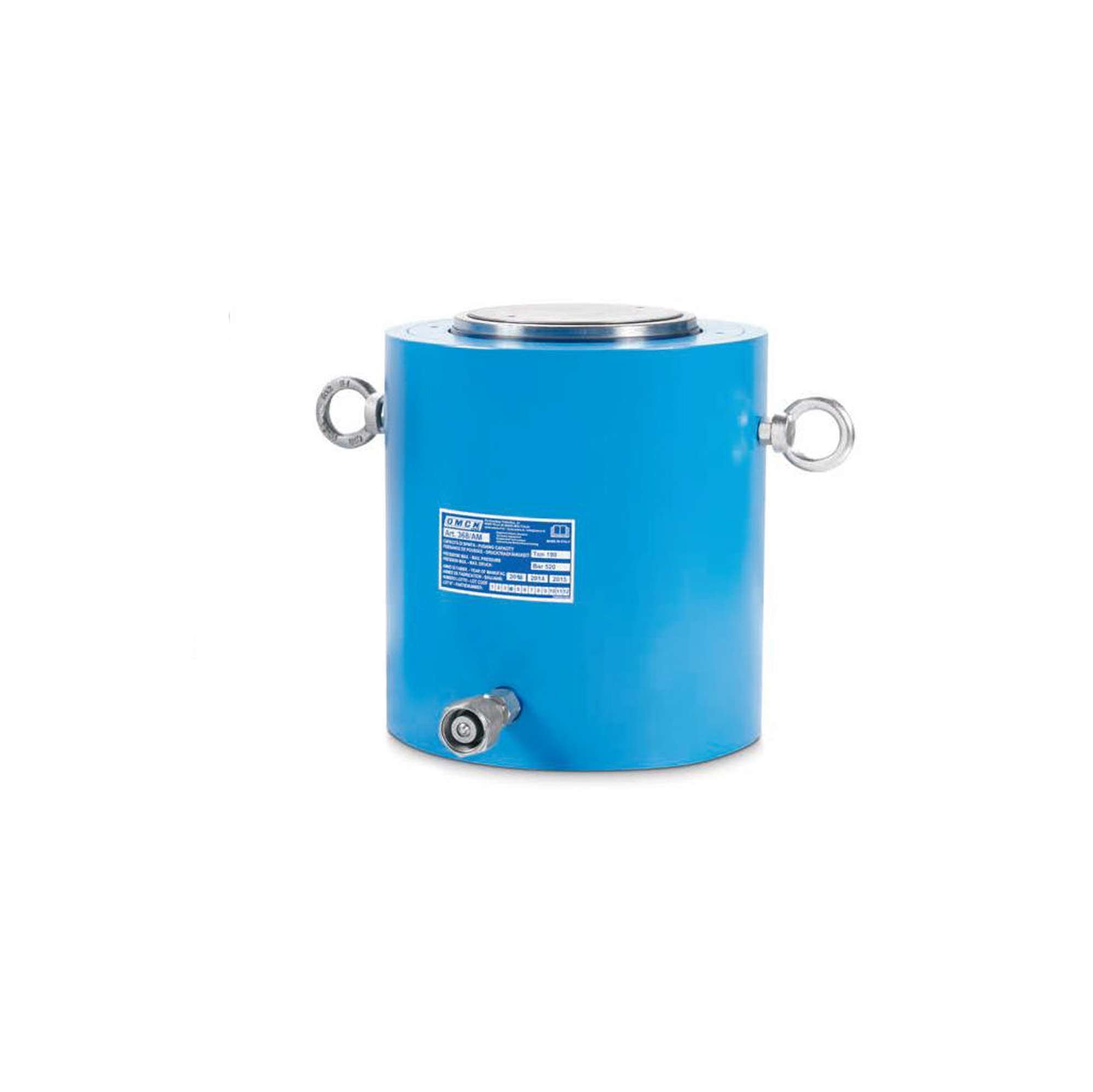

High-power hydraulic cylinder with spring return for lifting up to a maximum of 245 tonnes. Made of high-quality materials.
The maximum working pressure is 520 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 245t
Working pressure 520 bar
Oil capacity 6623cm³
Dimensions A 485mm
Dimensions B 350mm
Dimensions C 135mm
Dimensions D 210mm
Weight 163kg
Delivery 10-15 days
