Description

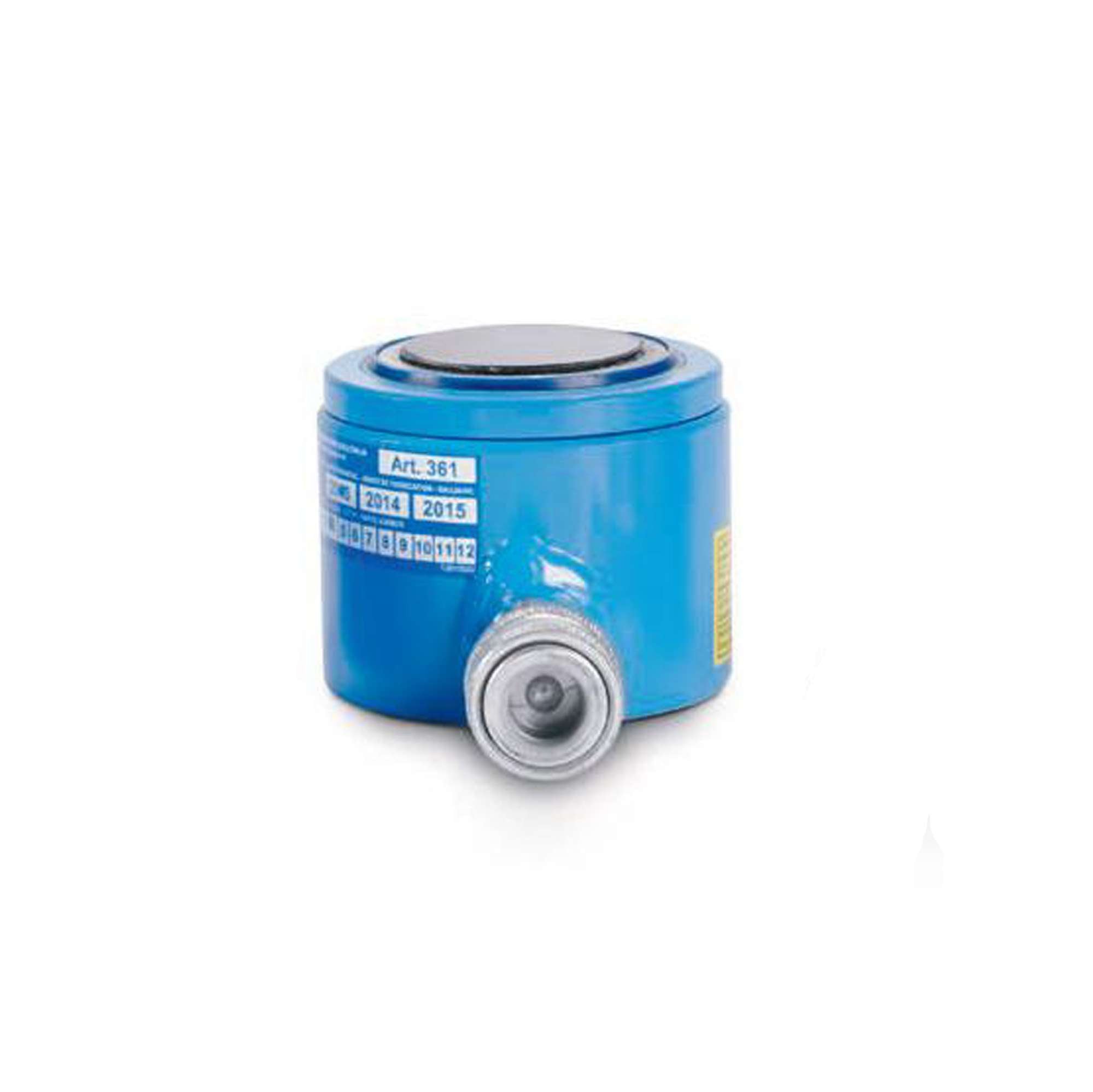

Space-saving hydraulic cylinder with gravity return for lifting up to a maximum of 20 tonnes. Made of high quality materials.
The maximum working pressure is 700 bar and the product weight is 3.3 kg.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 20t
Working pressure 700bar
Oil capacity 66.2cm³
Dimensions A 105mm
Dimensions B 85mm
Dimensions C 20mm
Dimensions D 60mm
Weight 3.3kg
Delivery 10-15 days
