Description

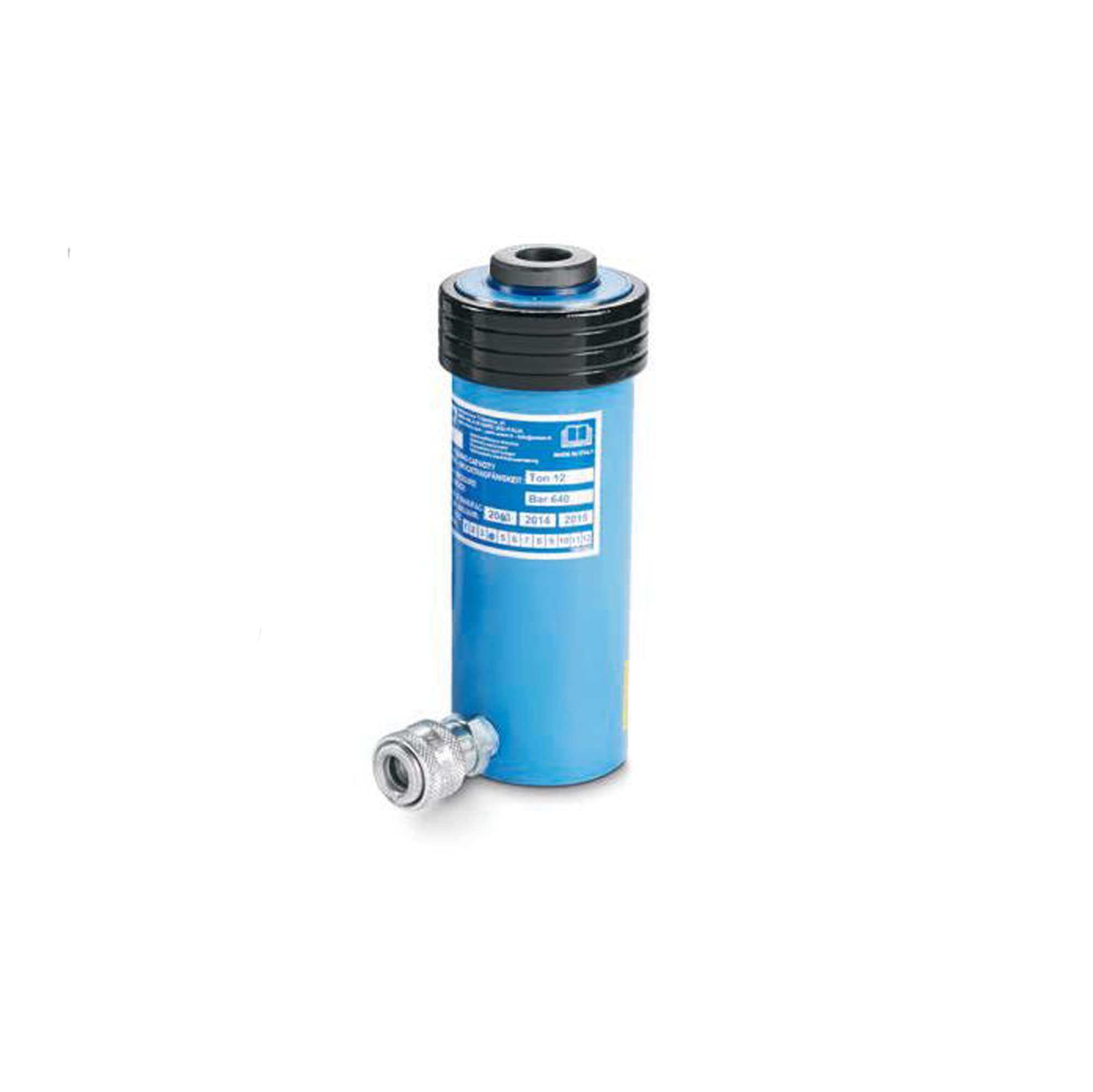

Single acting hydraulic cylinder with spring return for lifting up to a maximum of 12 tonnes. Made of high-quality materials.
The maximum working pressure is 700 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 12t
Working pressure 700bar
Oil capacity 111cm³
Dimensions A 265mm
Dimensions B 200mm
Dimensions C 65mm
Dimensions D 40mm
Dimensions E 10mm
Dimensions F 25mm
Dimensions G M69X2mm
Dimensions H 20mm
Dimensions I M28X1,5mm
Dimensions L 50mm
Dimensions M M5
Dimensions N 20.5mm
Weight 4kg
Delivery 10-15 days
