Description

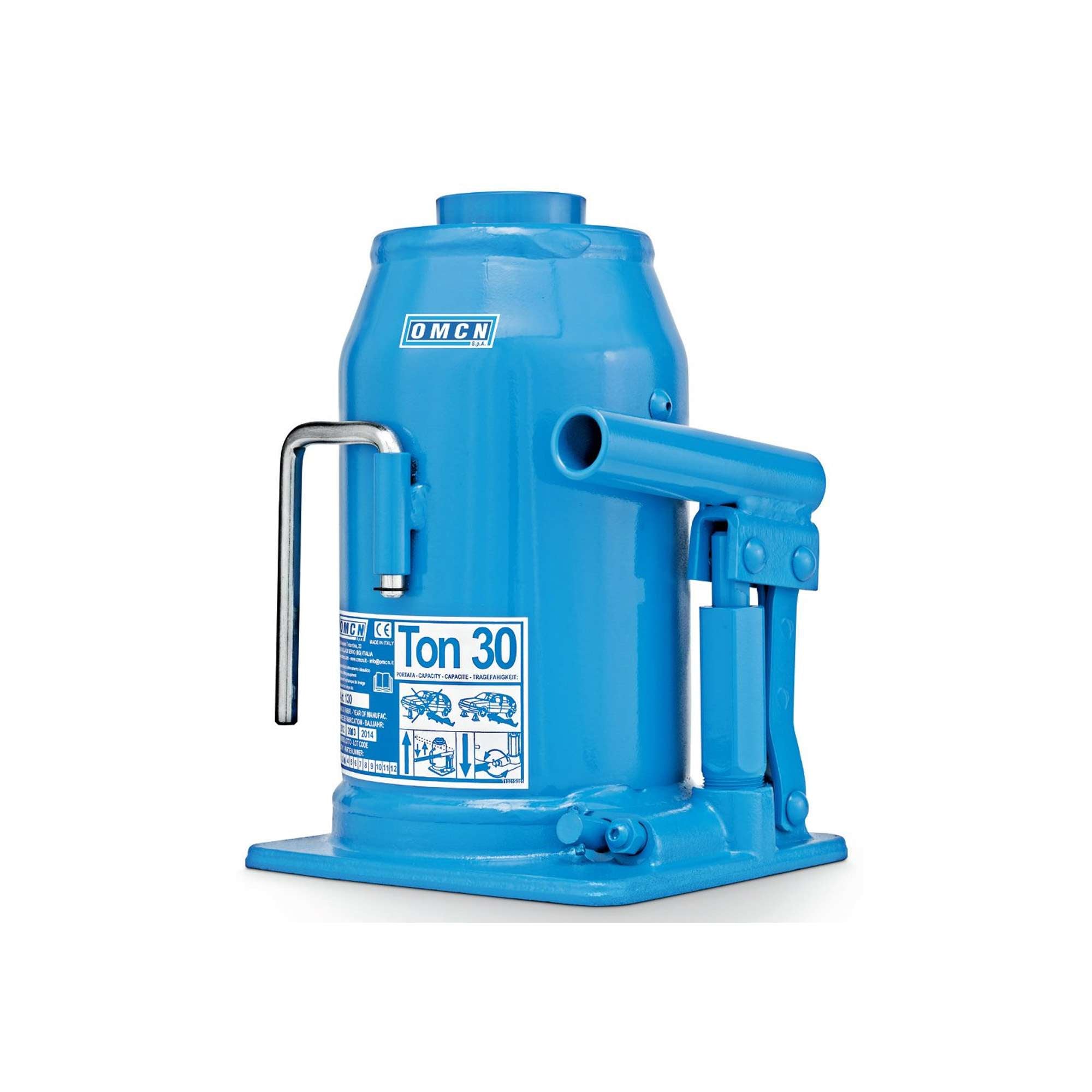

OMCN 130 hydraulic bottle jack
The hydraulic bottle jack 130 from OMCN can lift loads up to a weight of 30 tonnes. The jack is screw-mounted, thus ensuring a faster and more precise approach to the lifting point.
Built with a robust high-strength steel structure, the strongest on the market; it is a small, compact and efficient machine, resulting in a perfect combination of utility and space occupied.
Through a large support base it offers maximum stability, with an overload protection valve.
Hydraulic operation is via a lever, allowing the jack to lift loads from a minimum height of 295mm to a maximum of 585mm.
With a weight of 25kg.
Features:
With screw
Lifting capacity of 30t
Lifting height from min 295mm to max 585mm
Hydraulic actuation by lever
Technical features
Lifting capacity 30t
A 585mm
B 295mm
C 165mm
D 125mm
E 225x183mm
F 65mm
Weight 25kg
The hydraulic bottle jack 130 from OMCN can lift loads up to a weight of 30 tonnes. The jack is screw-mounted, thus ensuring a faster and more precise approach to the lifting point.
Built with a robust high-strength steel structure, the strongest on the market; it is a small, compact and efficient machine, resulting in a perfect combination of utility and space occupied.
Through a large support base it offers maximum stability, with an overload protection valve.
Hydraulic operation is via a lever, allowing the jack to lift loads from a minimum height of 295mm to a maximum of 585mm.
With a weight of 25kg.
Features:
With screw
Lifting capacity of 30t
Lifting height from min 295mm to max 585mm
Hydraulic actuation by lever
Technical features
Lifting capacity 30t
A 585mm
B 295mm
C 165mm
D 125mm
E 225x183mm
F 65mm
Weight 25kg
Delivery 10-15 days
