Description

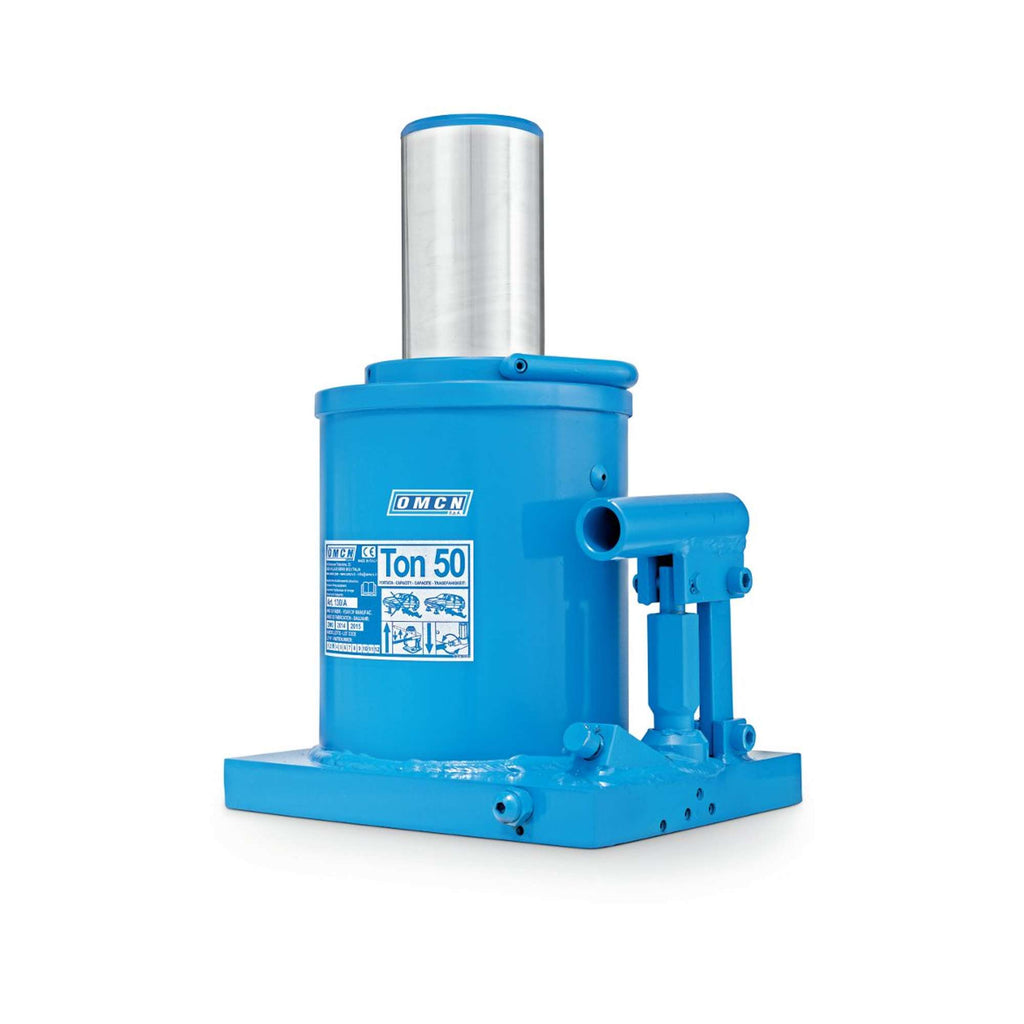

OMCN 130/A hydraulic bottle jack
The 130/A hydraulic bottle jack from OMCN can lift loads of up to 50 tonnes, the jack is screwless.
Constructed with a robust high-strength steel frame, the strongest on the market, it is a small, compact and efficient machine, resulting in a perfect combination of utility and space utilisation.
Through a large support base it offers maximum stability, with an overload protection valve.
Hydraulic operation is via a lever, allowing the jack to lift loads from a minimum height of 270mm to a maximum of 430mm.
With a weight of 53kg.
Features:
Screwless
Lifting capacity of 50t
Lifting height from min 270mm to max 430mm
Hydraulic actuation by lever
The 130/A hydraulic bottle jack from OMCN can lift loads of up to 50 tonnes, the jack is screwless.
Constructed with a robust high-strength steel frame, the strongest on the market, it is a small, compact and efficient machine, resulting in a perfect combination of utility and space utilisation.
Through a large support base it offers maximum stability, with an overload protection valve.
Hydraulic operation is via a lever, allowing the jack to lift loads from a minimum height of 270mm to a maximum of 430mm.
With a weight of 53kg.
Features:
Screwless
Lifting capacity of 50t
Lifting height from min 270mm to max 430mm
Hydraulic actuation by lever
Technical specifications
Lifting capacity 50t
A 430mm
B 270mm
C 160mm
D /
E 280x230mm
F 90mm
Weight 53kg
Delivery 10-15 days
