Description

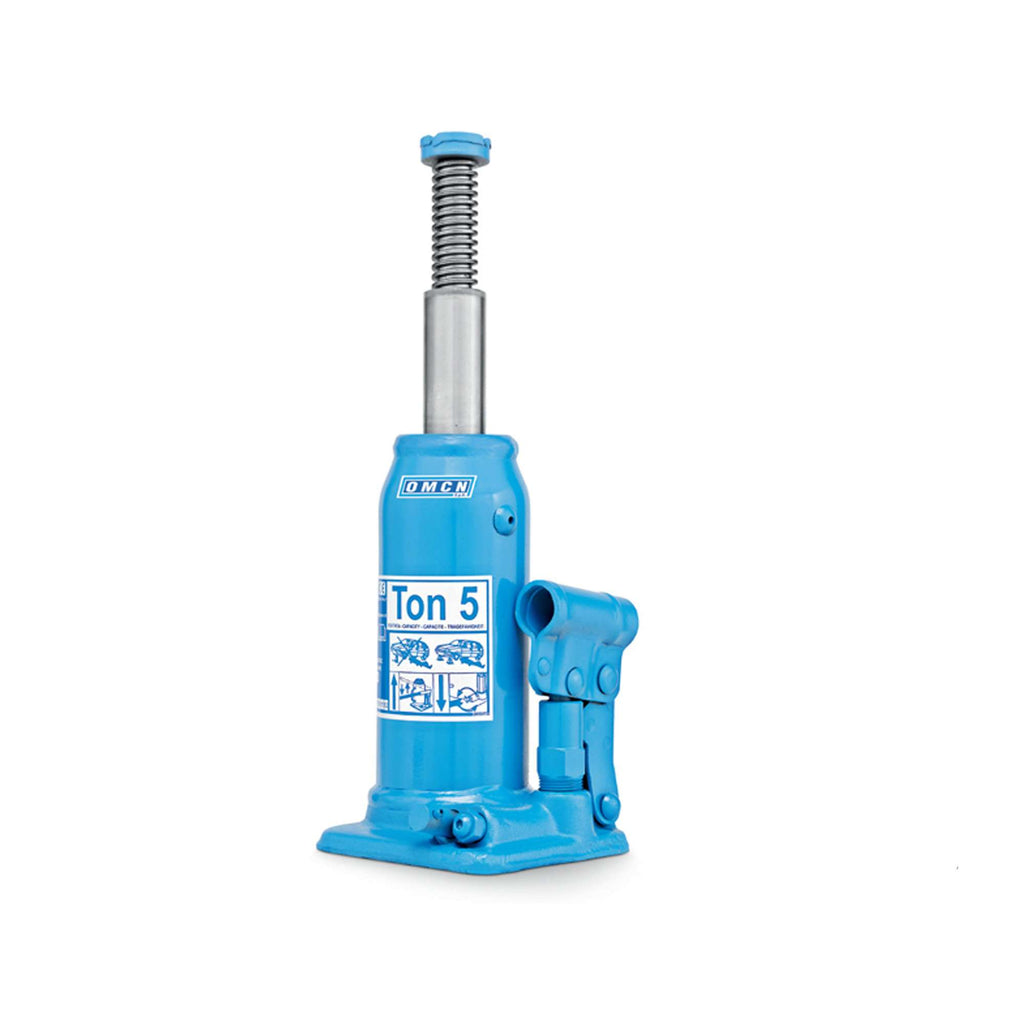

OMCN 126/A hydraulic bottle jack
The OMCN 126/A hydraulic bottle jack from OMCN can lift loads up to a weight of 5 tonnes. The jack is screw-mounted, so it guarantees a faster and more precise approach to the lifting point.
Built with a robust high-strength steel structure, the strongest on the market; it is a small, compact and efficient machine, resulting in a perfect combination of utility and space occupied.
Through a large support base it offers maximum stability, with an overload protection valve.
Hydraulic operation is via a lever, allowing the jack to lift loads from a minimum height of 190mm to a maximum of 370mm.
With a weight of 5kg.
Features:
With screw
Lifting capacity of 5t
Lifting height from min 190mm to max 370mm
Hydraulic actuation by lever
Technical characteristics
Lifting capacity 5t
A 370mm
B 190mm
C 105mm
D 75mm
E 120x120mm
F 40mm
Weight 5kg
Delivery 10-15 days
