Horizontal Lever Dial Test Indicator

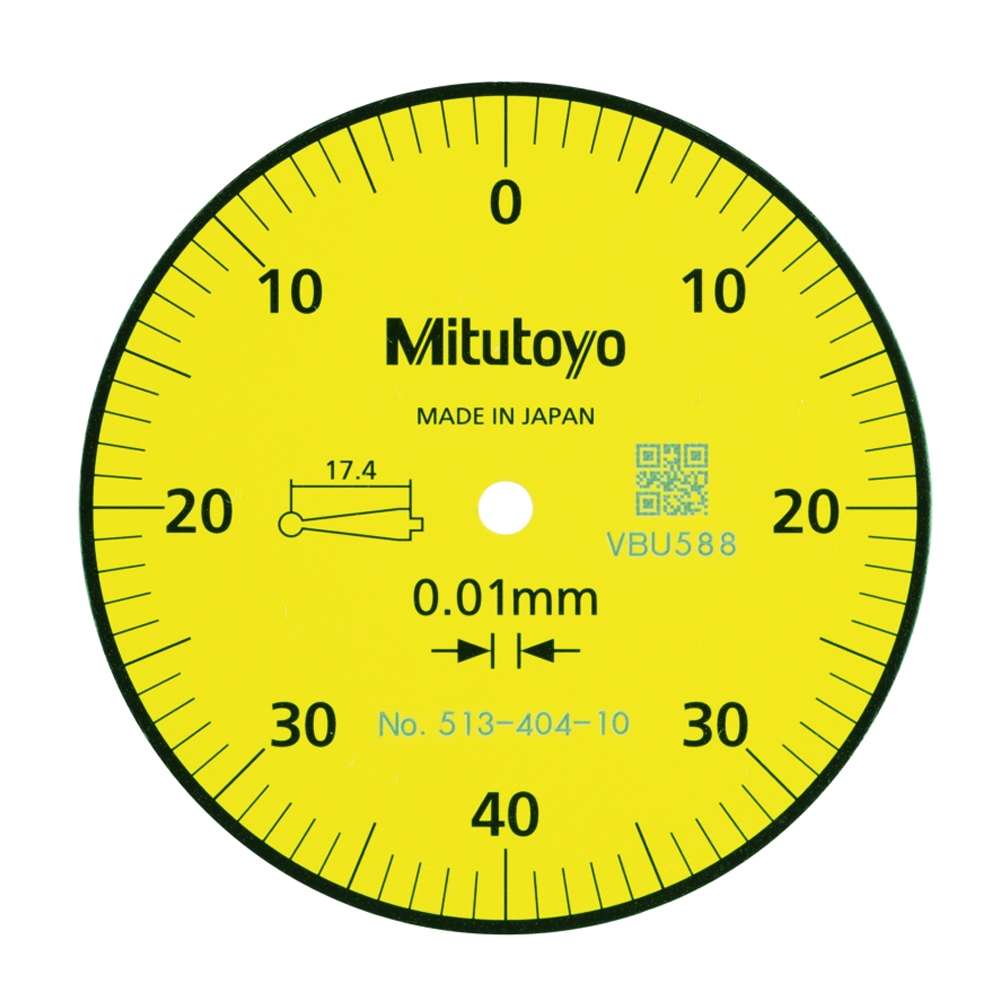

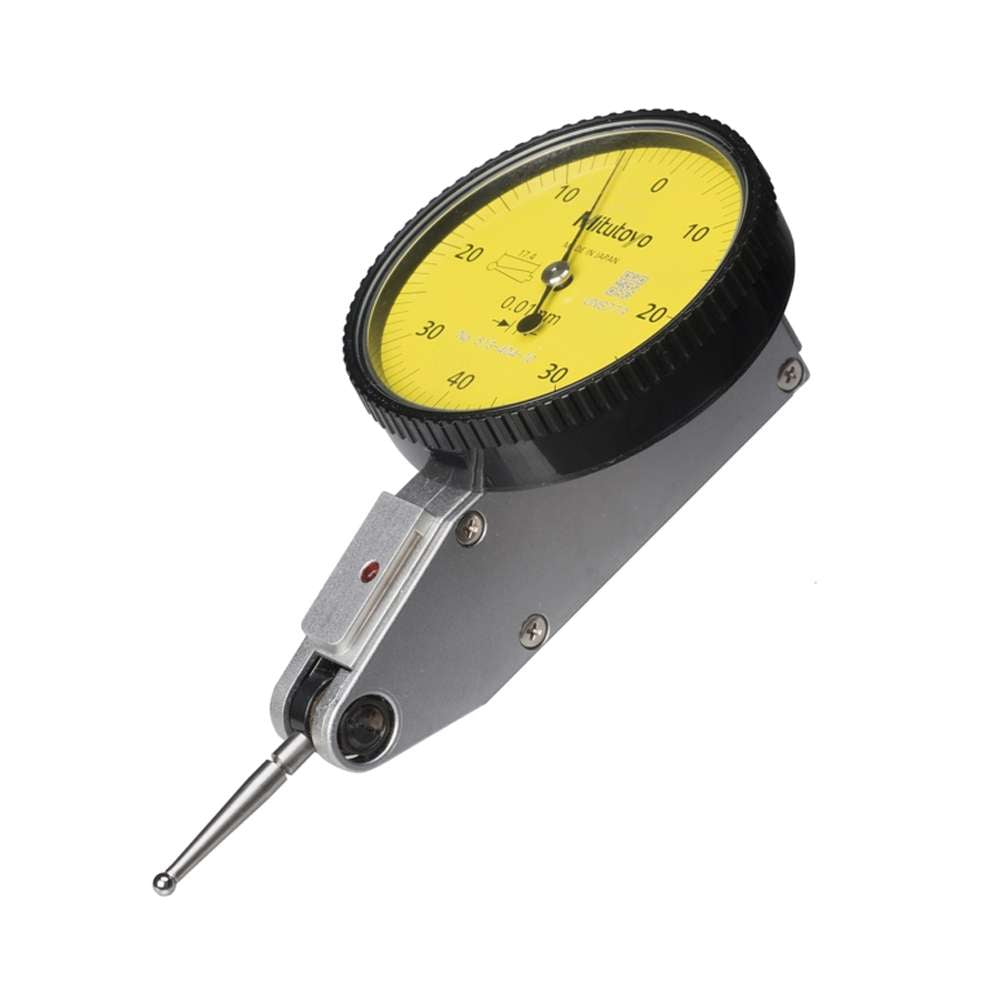

The Mitutoyo horizontal lever dial test indicator is a versatile, non-magnetic analog instrument, ideal for alignments on machine tools and similar mechanical applications. Thanks to the automatic measurement direction reversal and the ruby-mounted movements, it ensures smooth, quiet operation and fast, precise measurements.

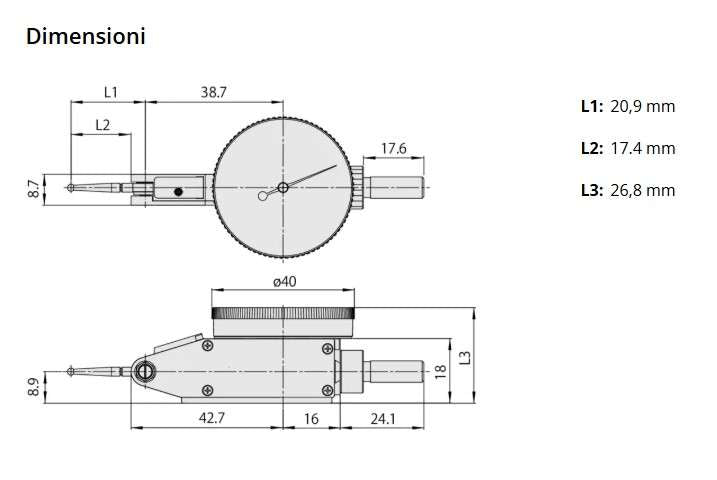

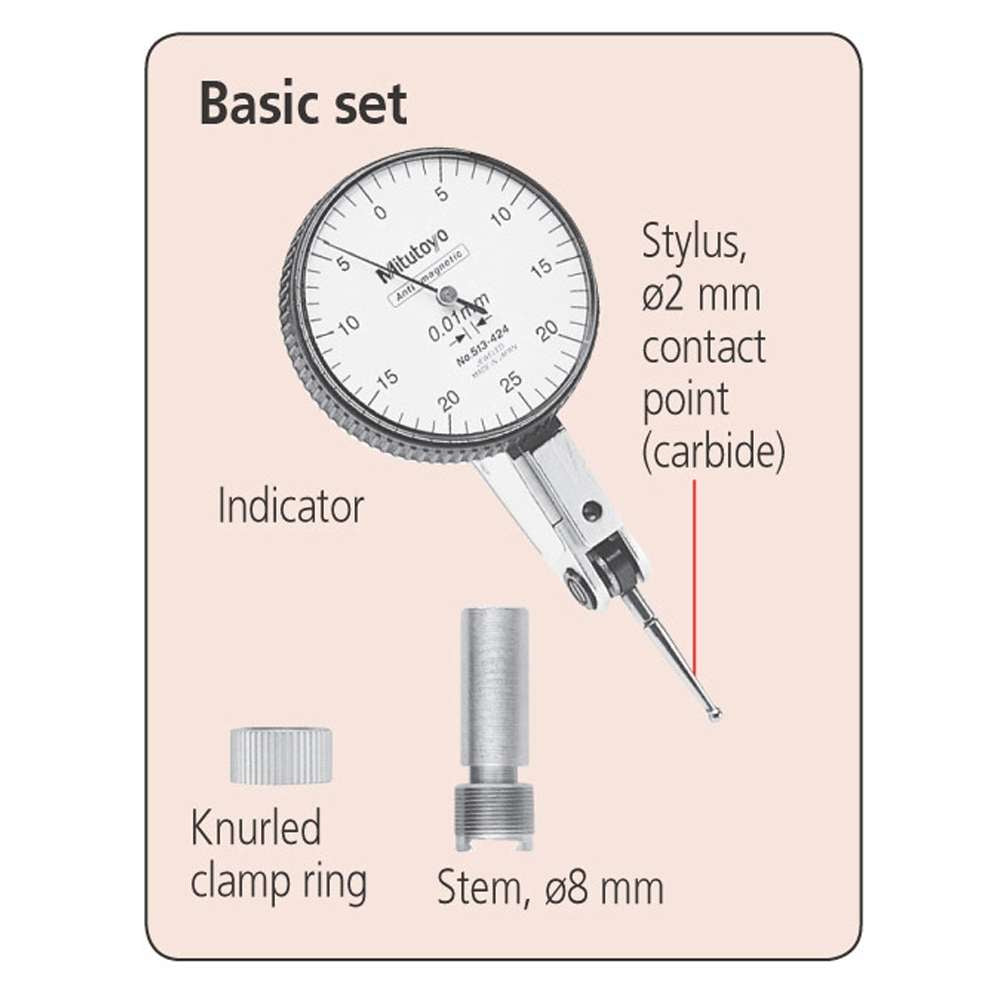

Supplied with a basic accessory set, it includes an Ø8 mm mounting shank and Ø2 mm stylus, ready for immediate use in workshops or metrology labs.

Main features:

• Type: Analog, metric
• Measuring range: 0.8 mm
• Graduation: 0.01 mm
• Reading: 0.0–40.0–0.0
• Repeatability (R MPE): 3 µm
• Hysteresis (H MPE): 3 µm
• Maximum error per 10 divisions: 5 µm
• Maximum error per ½ revolution: 6 µm
• MPE measuring range: 8 µm
• Measuring force: 0.01–0.3 N
• Contact point: hard metal Ø2 mm, thread M1.7 x 0.35
• Weight: 45 g

This lever dial test indicator is ideal for precision dimensional inspections, assembly, and adjustments in the workshop, thanks to its accuracy, reliability, and ease of use.
