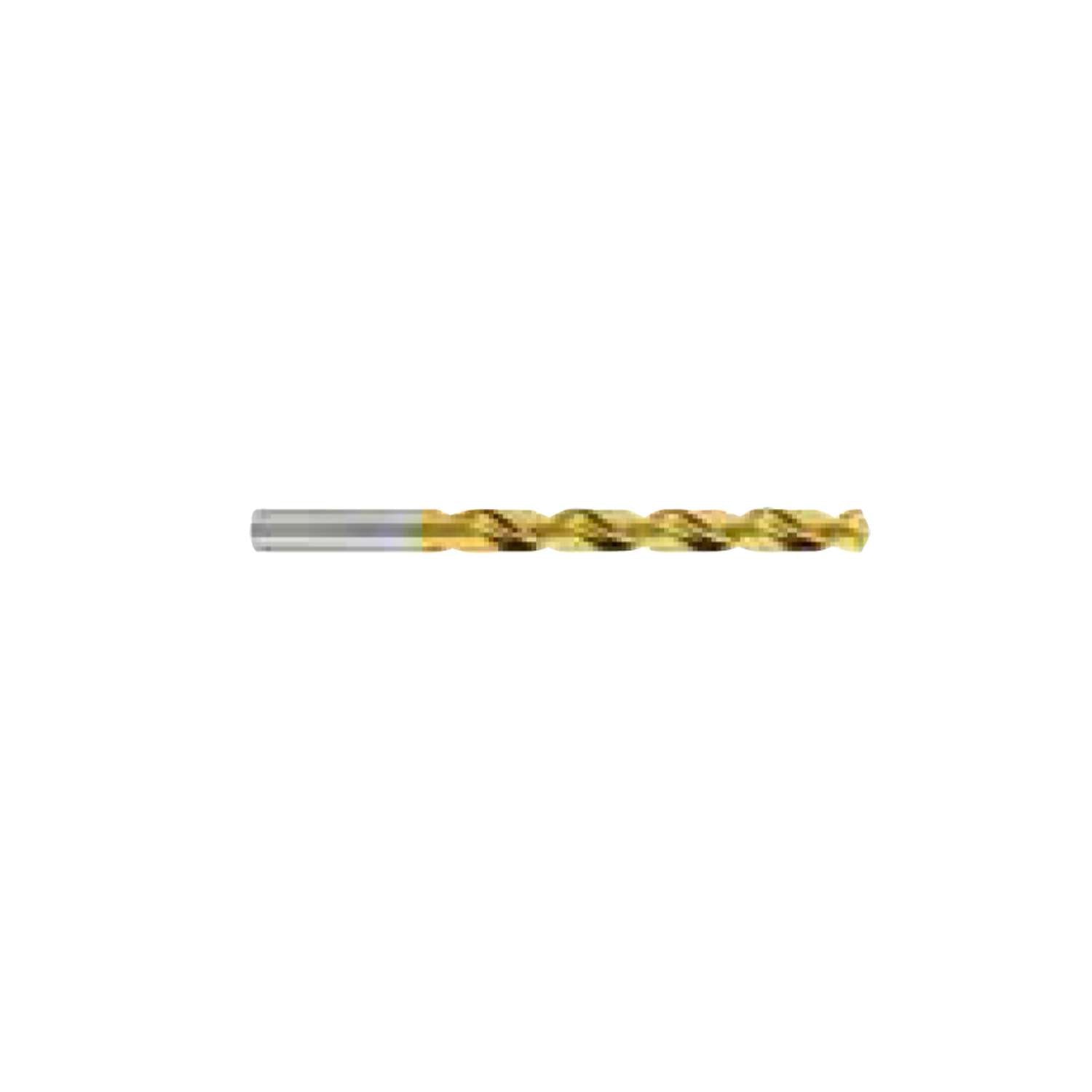

Name: Helical tip for general applications, TN coating, (1,3 - 5,5) - ILIX 6153TN
Brand: Ilix
SKU: 232_013_IL6153TN (1,3-5,5)___232_013_IL6153TN2,1
Price: 11.03 EUR
Availability: InStock

Helical tip for general applications, TN coating, (1,3 - 5,5) - ILIX 6153TN

Roll over image to zoom in Click on image to zoom

N - GENERAL PURPOSE APPLICATIONS - DIN 338 - CATALOGUE 6153TN

Ø	L1	L2
1.3	38	16
1.4	40	18

1.7	43	20
1.8	46	22
1.9	46	22

2.1	49	24
2.2	53	27
2.3	53	27
2.5	57	30
2.7	61	33
2.9	61	33

3	61	33
3.1	65	36
3.2	65	36
3.3	65	36
3.4	70	39
3.5	70	39
3.6	70	39
3.7	70	39
3.8	75	43
3.9	75	43

4	75	43
4.1	75	43
4.2	75	43
4.4	80	47
4.6	80	47
4.7	80	47
4.8	86	52
4.9	86	52

5.1	86	52
5.3	86	52
5.4	93	57
5.5	93	57

10.5

133

11.0

142

14.5

169

114
