Description

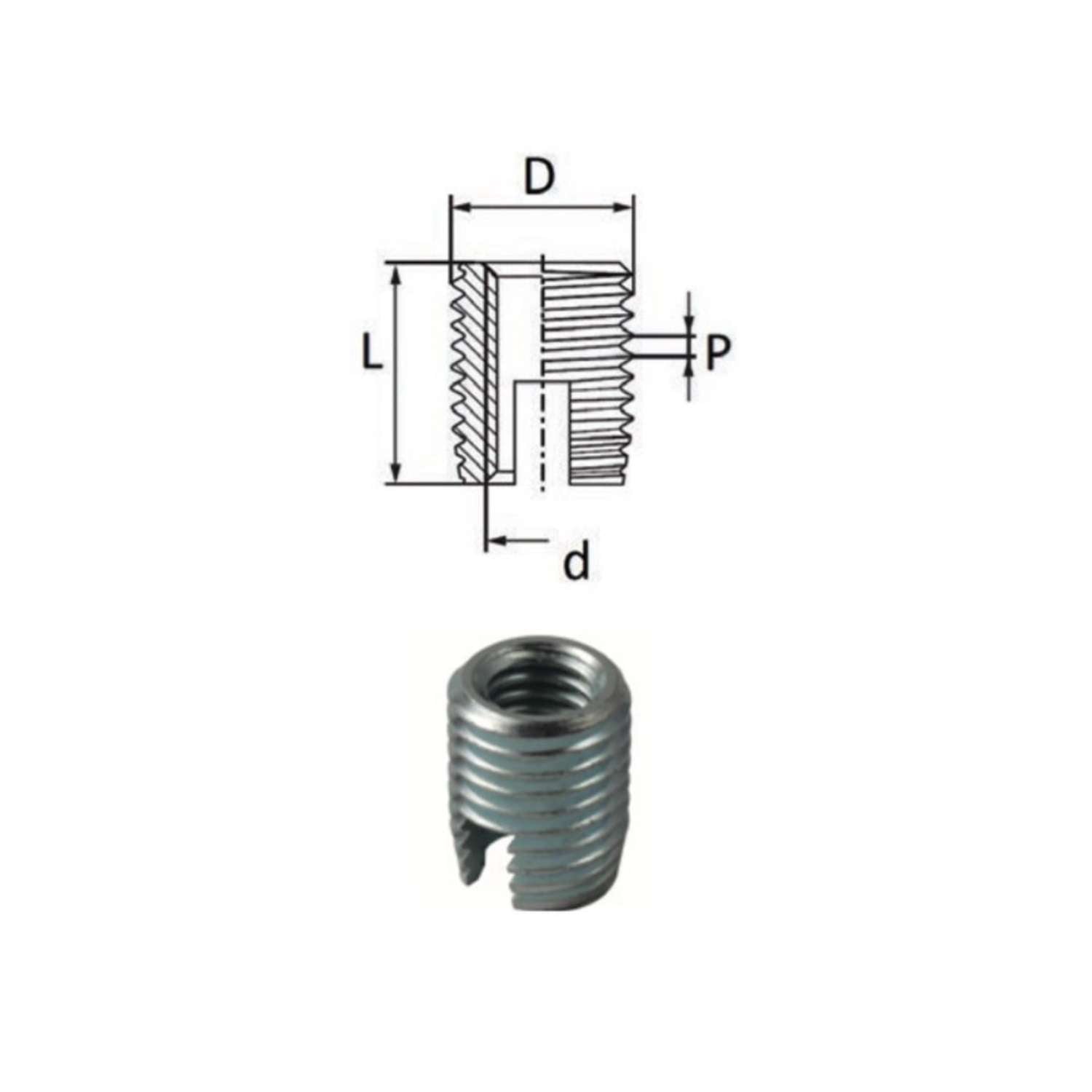

Self-tapping bush made of hardened steel M12x1,75 - Fixi
|
Code |
d Internal thread |
D Ext. diameter. |
P* |
ø hole |
ø hole |
ø hole |
X |
L |
|---|---|---|---|---|---|---|---|---|
| 83ACF212M12 | M 12 x 1,75 | 16 | 1,5 | 15,2-15,4 | 14,8-15 | 14,9-15,2 | 26 | 22 |
Notes:
*P Attention: special thread, drill but do not pre-drill.
Inner thread tolerance d: according to ISO 6H
Tolerance outer diameter d: According to machining standards

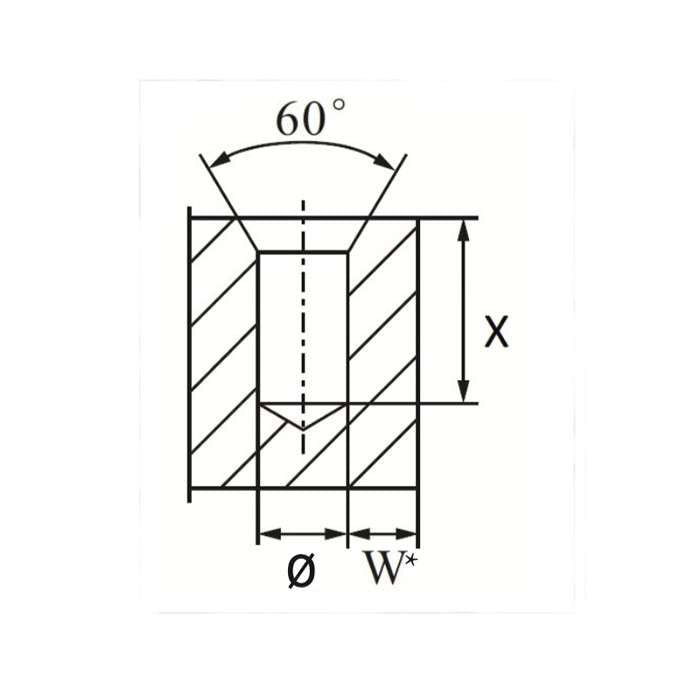

*W Minimum edge distance: light alloy W ≥ 0.2 x D; Cast irons W ≥ 0.3 x D; Plastics W ≥ 0.25 x D
