Description

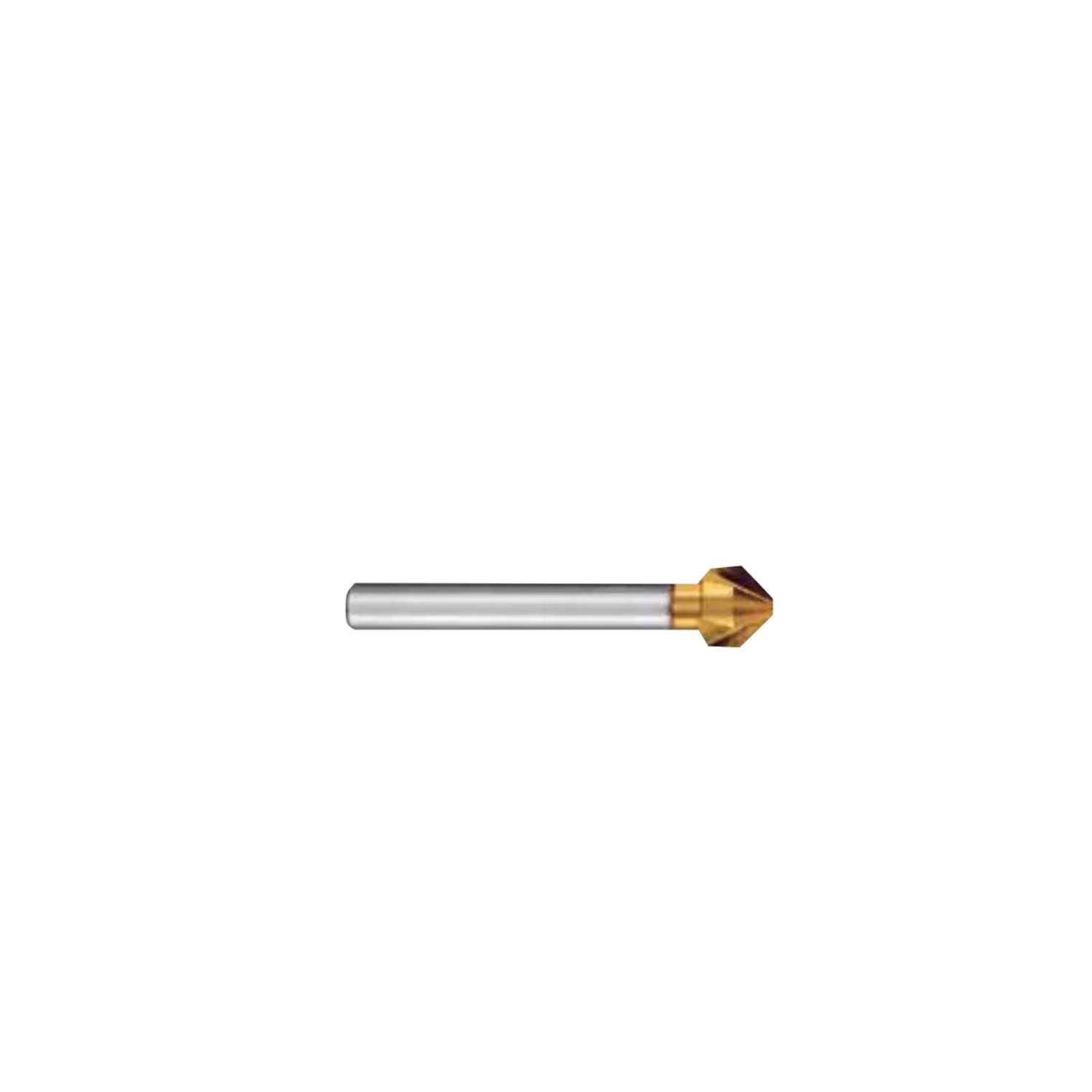

N - GENERIC APPLICATIONA - DIN 335 - CATALOGUE 6277TF
Material: HSS
Coating: TN

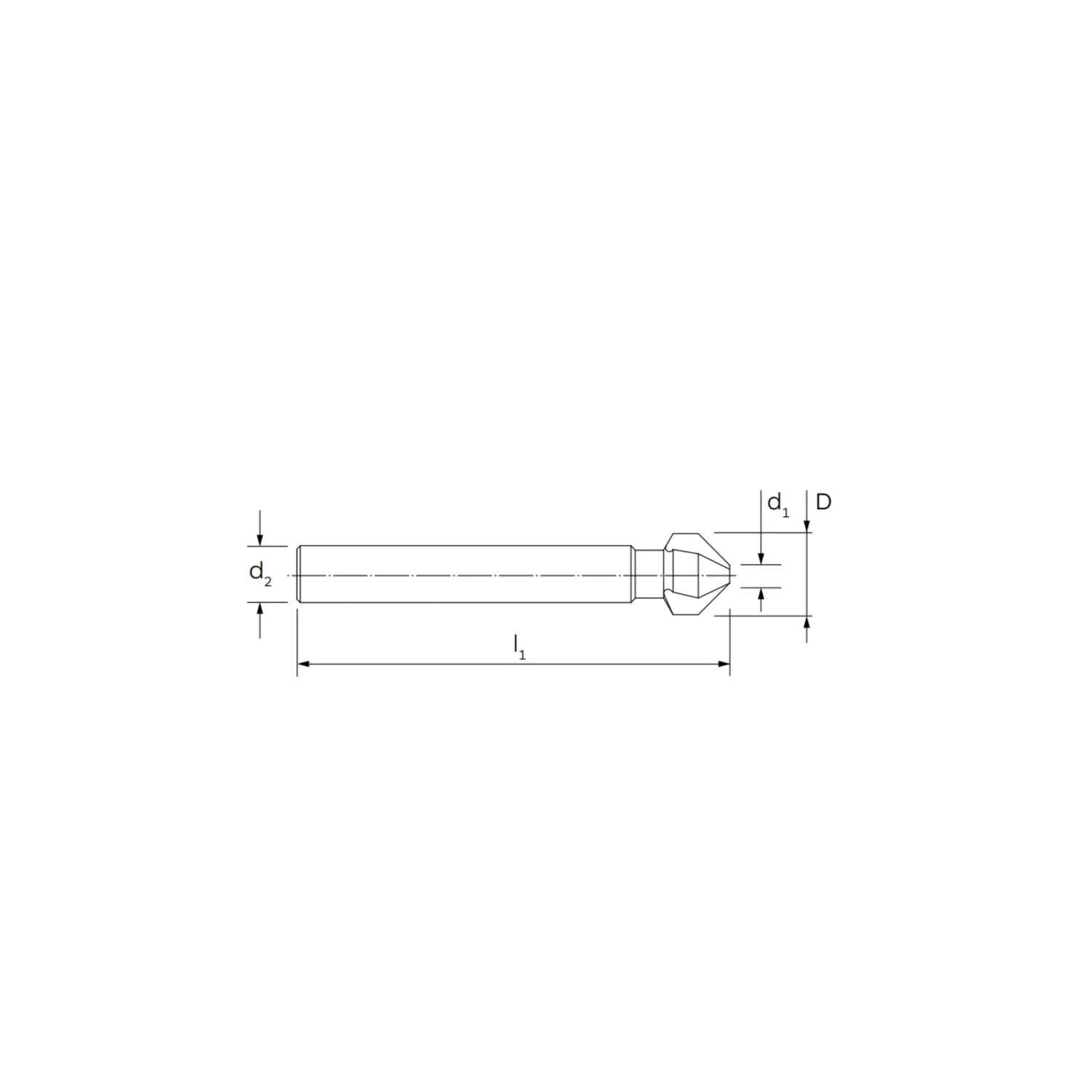

| Ø | L1 | D2h9 | Ø minimal | Esec. Fine | Esec. Middle |
| 6 | 45 | 5 | 1,5 | M 3 | M 2,5 |
| 8.3 | 50 | 6 | 2 | M 4 | M 3,5 |
| 10 | 50 | 6 | 2,5 | M 5 | M 4 |
| 10.4 | 50 | 6 | 2,5 | M 5 | M 4 |
| 12.4 | 56 | 8 | 2,8 | M 6 | M 5 |
| 16.5 | 60 | 10 | 3,2 | M 8 | M 6 |
| 19 | 63 | 10 | 3.5 | M 10 | M 8 |
| 20.5 | 63 | 10 | 3.5 | M 10 | M 8 |
