Description

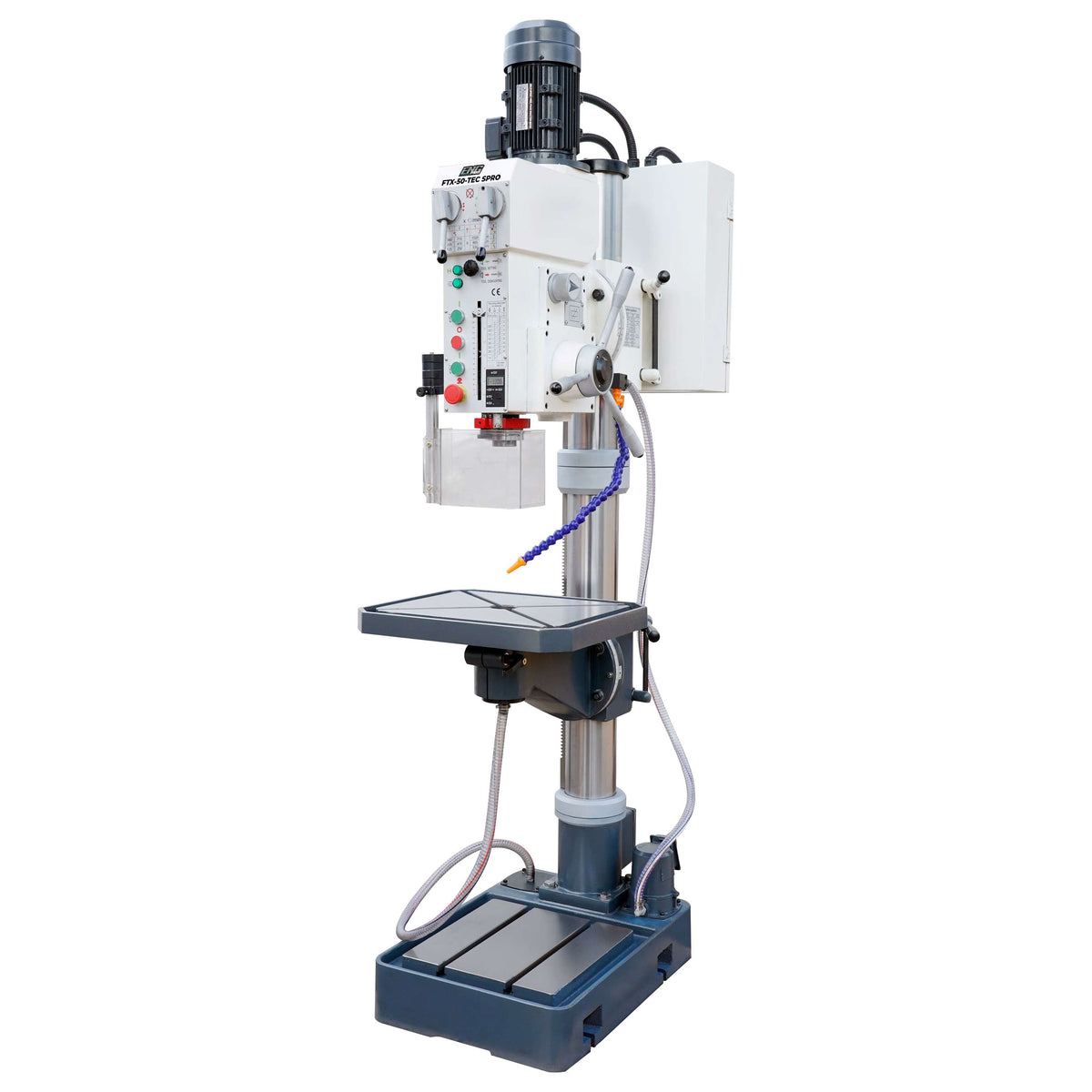

The FTX-50-TEC SPRO drill milling machine is a professional high-precision machine designed to provide maximum reliability, power, and versatility for the most demanding machining operations. Equipped with a quiet gear transmission and automatic spindle feed, this model is ideal for high-quality drilling, milling, and threading tasks.
Thanks to the threading function (M30), speed change via mechanical levers, and the rotation inverter, the machine offers full control over operations, ensuring precise and consistent results. The worktable tilting ±45° allows maximum flexibility for angled machining, while the electromagnetic clutch engagement and the integrated cooling system provide operational comfort and long machine life.
With a drilling capacity of up to 50 mm and a MT4 Morse taper, the FTX-50-TEC SPRO drill milling machine is perfectly suited for mechanical workshops, technical laboratories, and industrial maintenance departments.
Main Features:
- Power supply: 400V three-phase
- Power: 3 – 4 kW / HP
- Transmission: gear with 12 speeds (52–1400 rpm)
- Maximum drilling capacity: 50 mm
- Threading: M30
- Spindle taper: MT4
- Drilling depth: 240 mm
- Automatic spindle feed: 0.1 / 0.2 / 0.3 / 0.4 mm/rev
- Tilting table ±45° (580 x 460 mm)
- Spindle-to-column distance: 450 mm
- Cooling system included
- Net weight: 630 kg
- Construction compliant with CE standards
Robust, quiet, and precise, the FTX-50-TEC SPRO is the ideal choice for those seeking a high-performance multifunction machine for professional drilling and milling operations.
