Description

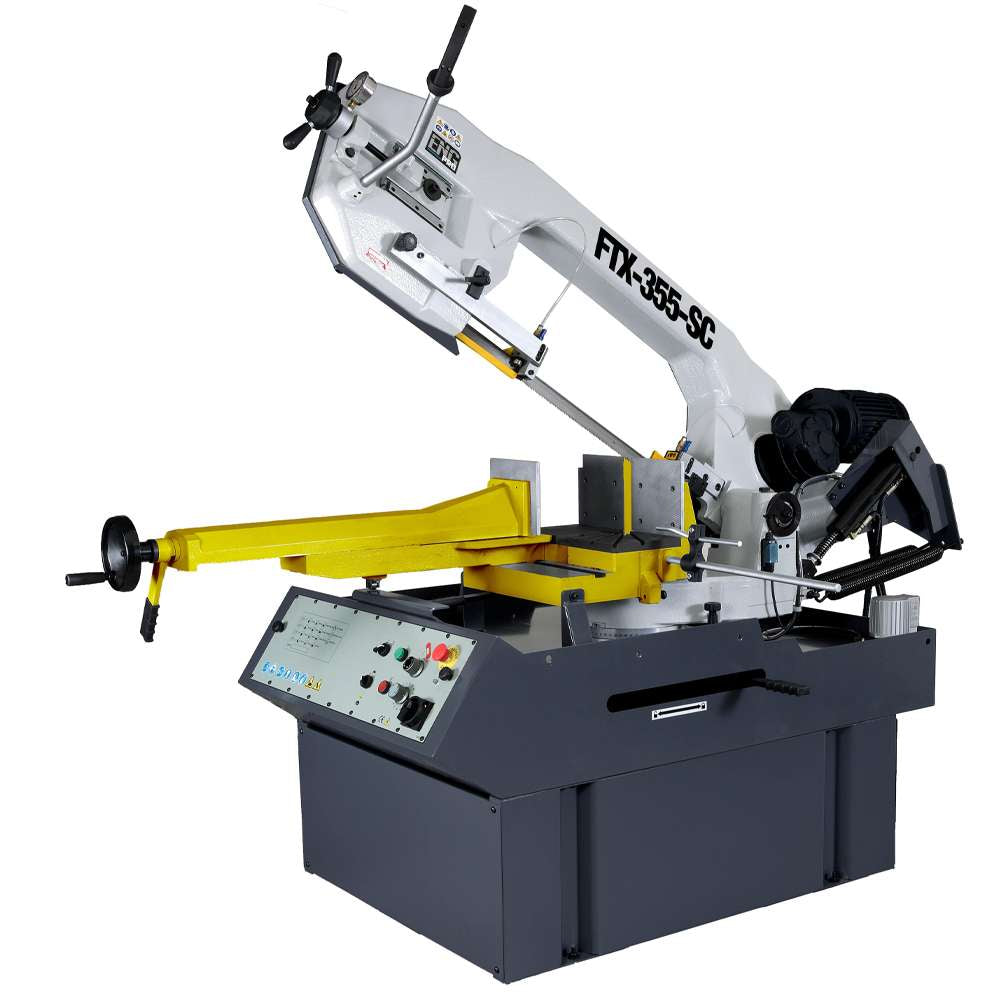

The FTX-355-SC is a robust and versatile industrial bandsaw designed to deliver high performance, precision, and safety when cutting solid metals, profiles, and tubes. The 0 to 60° swivel head allows for straight and angled cuts with simple and precise adjustment, making it ideal for workshop and production environments.
The system features a hydraulic piston descent, ensuring smooth and consistent control of the cutting operation while maintaining stability and safety. At the end of the cut, the machine automatically stops, optimizing workflow and reducing manual intervention.
The carbide blade guides with ball bearing support provide excellent durability and stability even under heavy loads. The equipment is completed with an emergency stop switch, a safety switch on the cover opening, a blade tension gauge, and a lubrication/cooling system — all ensuring compliance with CE standards and guaranteeing reliability in industrial applications.
The FTX-355-SC is an ideal solution for mechanical workshops, metal fabrication facilities, and metalworking companies that require an efficient, durable, and easy-to-use bandsaw.
Technical Specifications
| Feature | Value |
|---|---|
| Power supply | 400V / 3-Phase |
| Motor power | 1.9 – 2.5 kW-HP |
| Blade speed | 35 – 70 m/min |
| Cutting capacity 90° (round / rectangular / square) | Ø 355 mm / 280×490 mm / 280×280 mm |
| Cutting capacity 45° (round / rectangular / square) | Ø 355 mm / 280×340 mm / 280×280 mm |
| Cutting capacity 60° (round / rectangular / square) | Ø 230 mm / 180×220 mm / 180×180 mm |
| Cutting capacity 45° left (round / rectangular / square) | Ø 290 mm / 250×250 mm / 250×250 mm |
| Vice opening | 85 mm |
| Blade dimensions | 3770 × 1.1 × 34 mm |
| Net / Gross weight | 552 / 622 kg |
| Machine dimensions | 2280 × 970 × 1130 mm |
| Swivel head | 0–60°, ±45° |
| Head descent | Hydraulic piston |
| Automatic stop at end of cut | Yes |
| Blade guides | Carbide with ball bearings |
| Safety devices | Emergency stop + cover safety interlock |
| Blade tension gauge | Yes |
| Cooling system | Cooling pump |
