Description

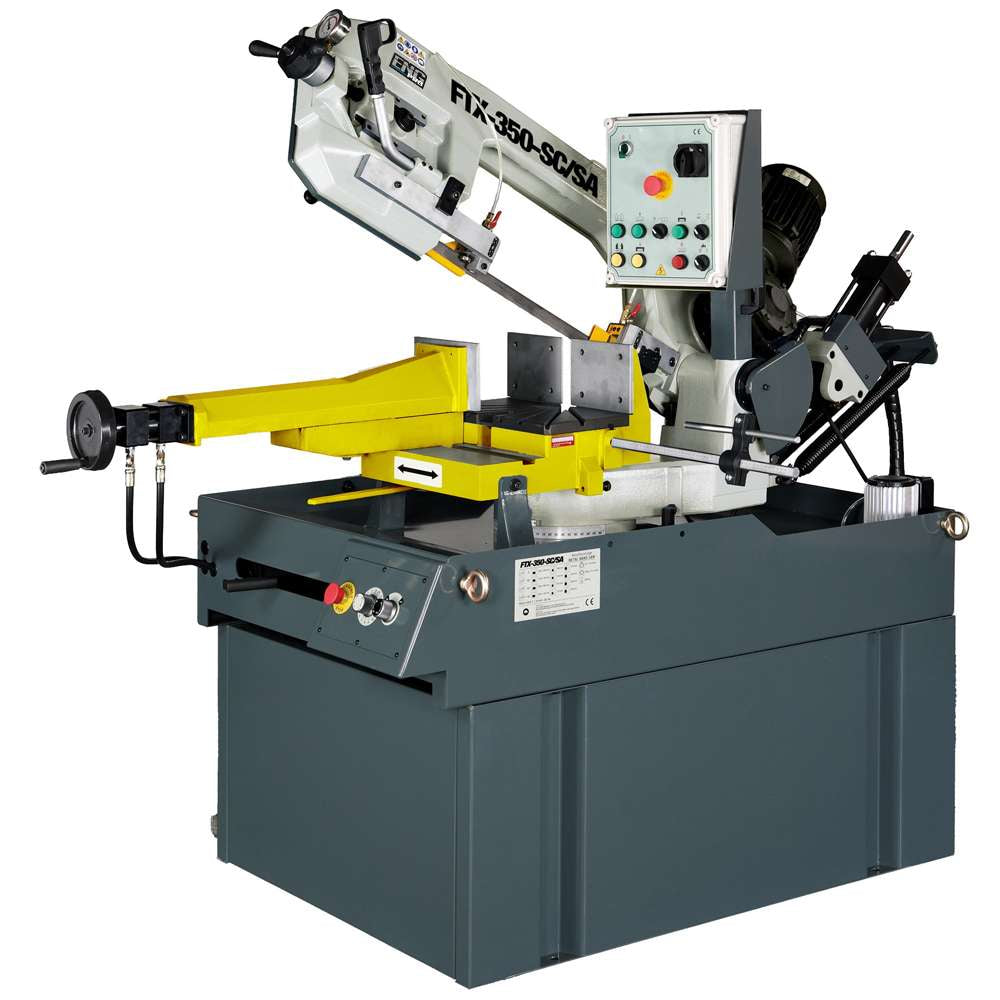

The FTX-350-SC/SA Bandsaw is a high-performance industrial machine designed to ensure precision, productivity, and maximum safety during metal cutting operations. Equipped with a 0 to 60° swivel head with simple and precise adjustment, it allows for reliable straight and angled cuts.
The machine features a powerful and stable hydraulic vice, along with a hydraulic piston descent system that ensures smooth, consistent operation and full control during cutting. The automatic head up and down movement speeds up the work cycle, while the automatic stop at the end of the cut enhances both safety and efficiency.
The carbide blade guides supported by ball bearings provide stability, durability, and accuracy even in heavy-duty applications. The machine is also equipped with an emergency stop switch, a safety switch for the cover opening, and a blade tension gauge, ensuring full compliance with CE standards.
| Feature | Value |
|---|---|
| Power Supply | 400V / 3-Phase |
| Motor Power | 1.9 – 2.5 kW-HP |
| Blade Speed | 36 – 72 m/min |
| Cutting Capacity 90° (round / rectangular / square) | Ø 270 mm / 230×330 mm / 270×270 mm |
| Cutting Capacity 45° (round / rectangular / square) | Ø 230 mm / 210×220 mm / 220×220 mm |
| Cutting Capacity 60° (round / rectangular / square) | Ø 140 mm / 140×140 mm / 140×140 mm |
| Cutting Capacity 45° Left (round / rectangular / square) | Ø 220 mm / 140×200 mm / 180×180 mm |
| Vice Opening | 85 mm |
| Blade Size | 2925 × 0.9 × 27 mm |
| Net / Gross Weight | 600 / 650 kg |
| Dimensions | 1930 × 970 × 1120 mm |
| Swivel Head | 0–60°, ±45° |
| Vice Type | Hydraulic |
| Head Descent | Hydraulic piston |
| Head Movement | Automatic up/down |
| Automatic Stop at End of Cut | Yes |
| Blade Guides | Carbide with ball bearings |
| Safety Switches | Emergency + cover safety interlock |
| Blade Tension Gauge | Yes |
| Certification | CE |
