Description

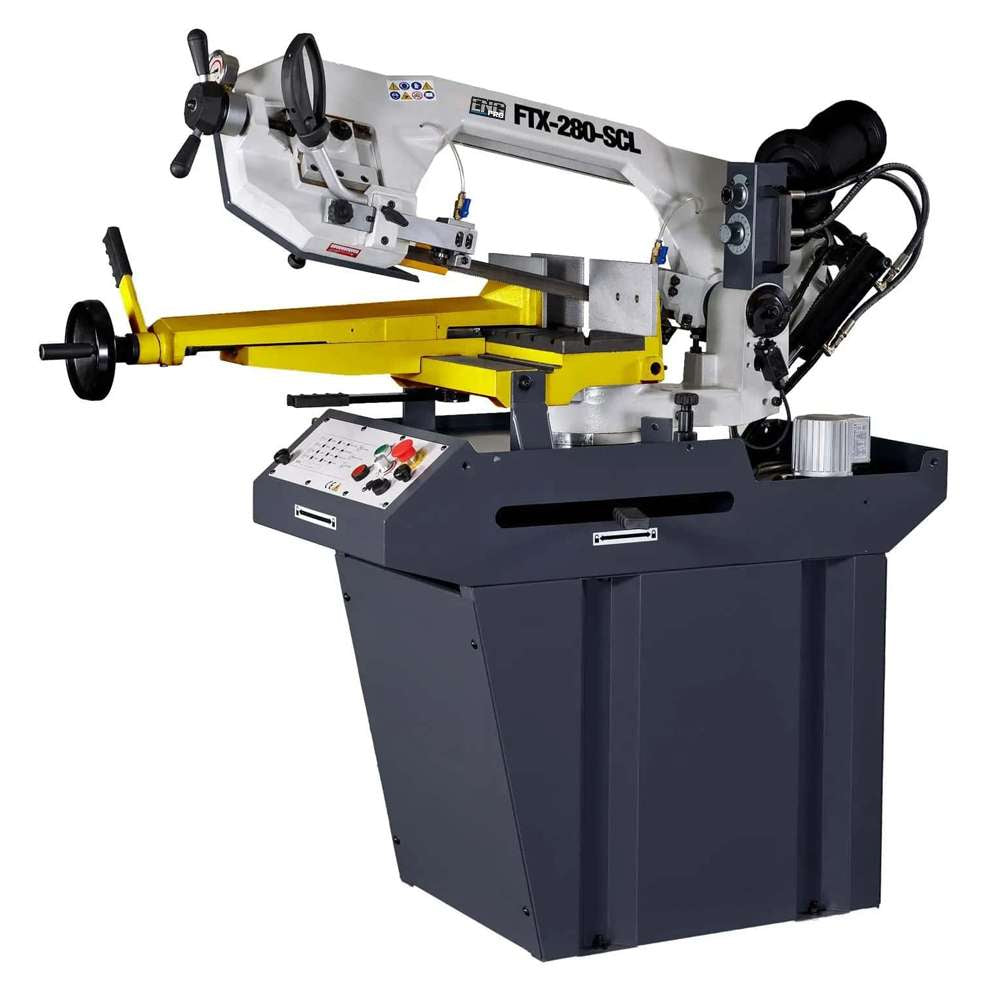

The FTX-280-SCL is a compact and durable industrial bandsaw designed to deliver efficiency, precision, and safety when cutting solid metals, profiles, and tubes. The 0 to 60° swivel head allows for straight and angled cuts with easy and accurate angle adjustment, making it ideal for workshops and fabrication environments that require versatility.
The machine features a hydraulic piston head descent system, ensuring smooth and controlled cutting. At the end of the cutting cycle, the saw performs an automatic stop, optimizing productivity and reducing operator intervention.
The carbide blade guides with ball-bearing support provide stability, accuracy, and long-lasting performance even under demanding workloads. For safety and compliance, the machine includes an emergency stop switch, a safety interlock for the cover opening, and a blade tension gauge.
The FTX-280-SCL is an excellent choice for metalworking shops, light fabrication facilities, and workshops seeking a reliable, durable, and easy-to-use bandsaw.
Technical Specifications
| Feature | Value |
|---|---|
| Power supply | 400V / 3-Phase |
| Motor power | 1.1 – 1.5 kW-HP |
| Blade speed | 45 – 90 m/min |
| Cutting capacity 90° (round / rectangular / square) | Ø 235 mm / 190×280 mm / 200×200 mm |
| Cutting capacity 45° (round / rectangular / square) | Ø 190 mm / 190×180 mm / 170×170 mm |
| Cutting capacity 60° (round / rectangular / square) | Ø 120 mm / 120×120 mm / 120×120 mm |
| Cutting capacity 45° left (round / rectangular / square) | Ø 175 mm / 145×145 mm / 145×145 mm |
| Vice opening | 85 mm |
| Blade size | 2645 × 0.9 × 27 mm |
| Net / Gross weight | 272 / 297 kg |
| Machine dimensions | 1580 × 770 × 1100 mm |
| Swivel head | 0–60° |
| Head descent | Hydraulic piston |
| Automatic stop at end of cut | Yes |
| Blade guides | Carbide with ball bearings |
| Safety devices | Emergency stop + cover safety interlock |
| Blade tension gauge | Yes |
