Description

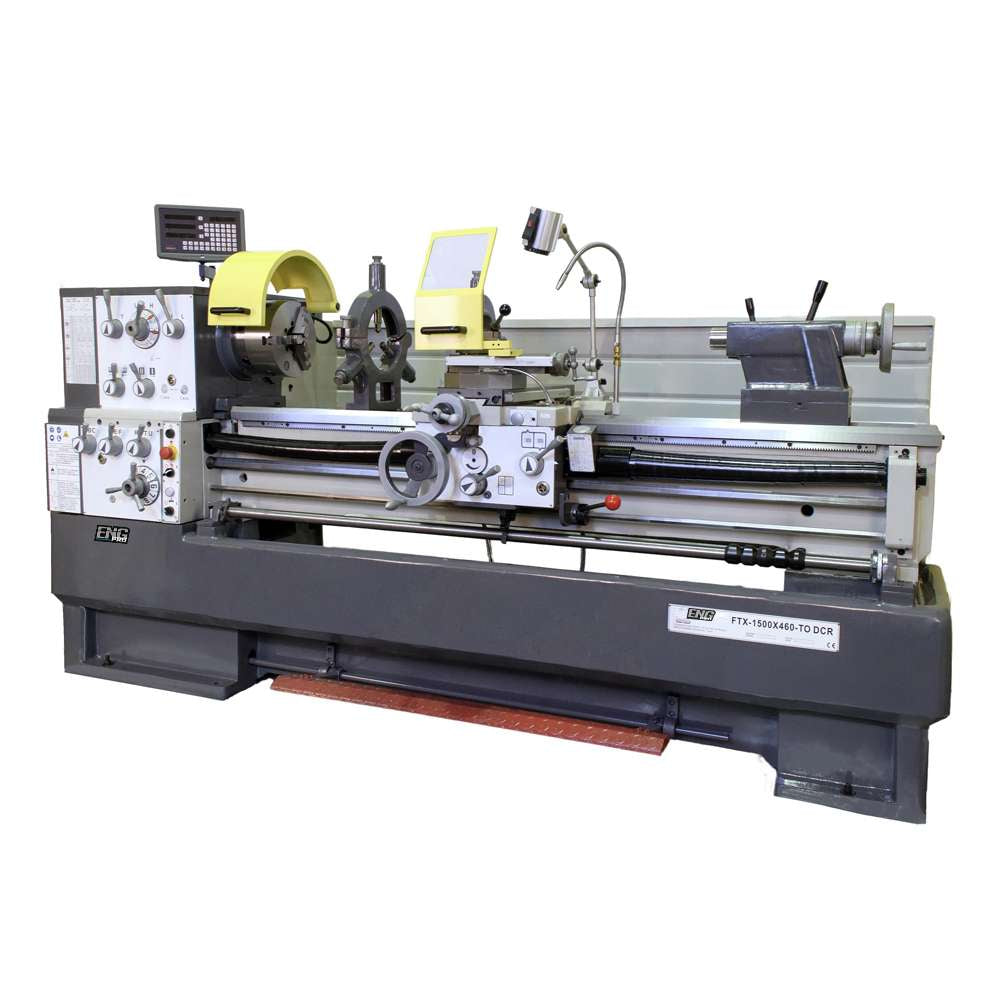

The industrial lathe FTX-1500X460-TO DCR 400V/F3 is designed to meet the needs of professional machine shops that require precision, structural stability, and maximum reliability in metalworking operations. The machine is built with hardened and ground prismatic guides, ensuring rigidity and smooth movement even under heavy loads.
Equipped with a DRO X/Y digital readout, a gear-type speed change system, and automatic feeds through the leadshaft, this lathe provides optimal process control, reducing setup times and increasing productivity.
Operator safety is guaranteed by a complete set of devices: safety micro-switches, spindle guard, foot brake, emergency stop, and a turret stop that automatically stops the machine at the preset workpiece length.
Manufactured in full compliance with CE standards, it represents an ideal professional solution for machine shops, metal fabrication facilities, maintenance departments, and industries requiring a robust, powerful, and precise lathe.
Technical Specifications
| Feature | Value |
|---|---|
| X/Y Coordinate Display | Yes |
| Power Supply | 400 V / F3 |
| Power | 5.5 – 7.5 kW / HP |
| Speed Change | Gears |
| Turning Diameter over Bed | 460 mm |
| Turning Diameter over Gap | 690 mm |
| Turning Diameter over Carriage | 274 mm |
| Bed Width | 300 mm |
| Spindle Bore Diameter | 82 mm |
| Distance Between Centers | 1500 mm |
| Headstock Taper | MT7 |
| Tailstock Taper | MT4 |
| Tailstock Diameter | 60 mm |
| Tailstock Quill Travel | 120 mm |
| Number of Speeds | 12 |
| Speed Range | 125 – 2000 rpm |
| Longitudinal Feed Range | 0.031 – 1.7 mm/rev |
| Cross Feed Range | 0.014 – 0.784 mm/rev |
| Rapid Longitudinal Feed (intermediate carriage) | – |
| Rapid Cross Feed (intermediate carriage) | – |
| Metric Threads | 47 types / 0.2 – 14 mm |
| Inch Threads | 50 types / 112 – 4 tpi |
| Diametral Pitch Threads | 50 types / 4 – 112 d.p. |
| Modular Threads | 34 types / 0.1 – 7 m.p. |
| Net/Gross Weight | 1860 / 2155 kg |
| Overall Dimensions | 2800 × 1120 × 1560 mm |
