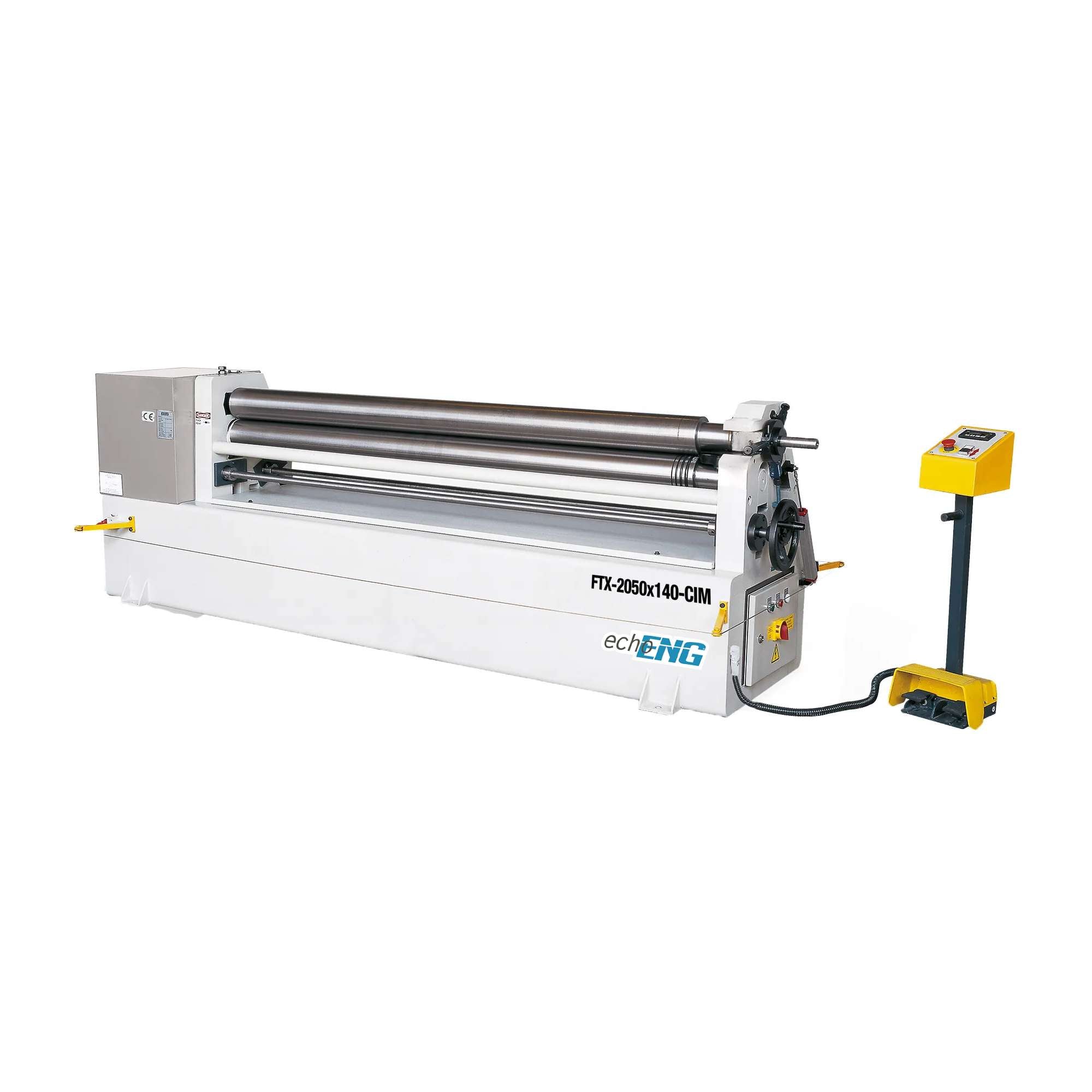

Electric Plate Roller ENG PRO FTX-2050X140-CIM
Professional electric plate roller suitable for processing light and medium sheets. With its robust structure and high-level technical features, it ensures precise and safe bending even on materials like aluminum and stainless steel. Equipped with induction-hardened steel rollers, it is designed for intensive and long-lasting use.
Main Features:
Easy to operate thanks to the mobile control panel with buttons
Conical bending device
Manual drop-end for quick removal of the finished ring
Main motor with braking system
Precision bending with brake motor
Certified SAE 1050 high-tensile strength steel rollers
Two rollers driven by a single reducer and gear system for top and bottom rollers
Main frames in spheroidal cast iron
Wire grooves at the roller ends
Induction-hardened rollers
Technical Specifications:
| Specification | FTX-2050X140-CIM |
|---|---|
| Power Supply | 400 V / 3-phase |
| Main Motor Power | 2.2 kW / 2.9 HP |
| Roller Speed | 3.5 RPM |
| Working Width | 2050 mm |
| Maximum Sheet Thickness | 4.0 mm |
| Roller Diameter | 140 mm |
| Net/Gross Weight | 1650 kg |
| Dimensions (LxWxH) | 1000 x 750 x 3200 mm |
