Description

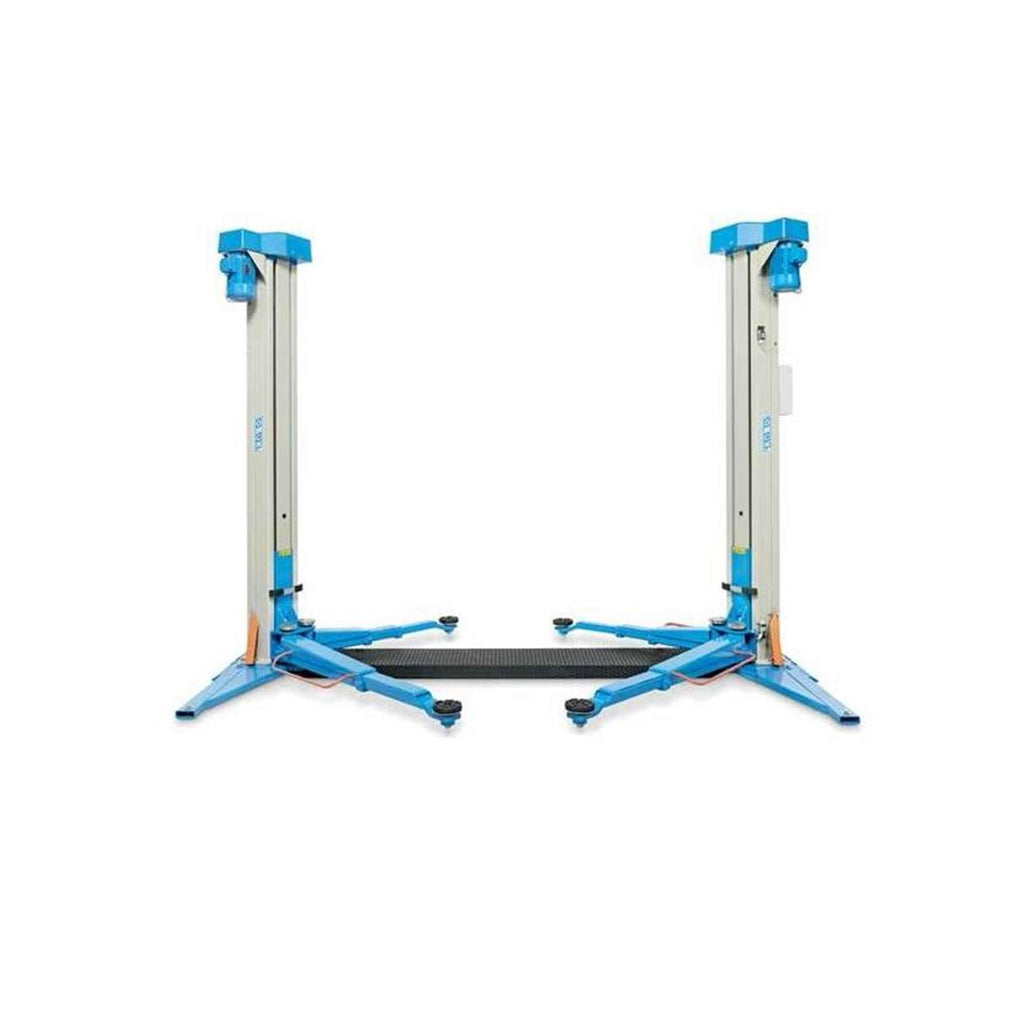

OMCN 199/BETA - Car workshop lift, electromechanical, two-post, 4 tonnes
The OMCN 199/BETA workshop car lift is an electromechanical car lift with a lowered base. Lifting is provided by rolled trapezoidal screws, made of high-strength steel, with fine pitch to make the carriages self-braking. The carriages are internally sliding and fully protected. The OMCN workshop bridge is equipped with load-bearing nuts made of special material to minimise lubrication. The safety nuts are self-protecting. This workshop lift from OMCN is equipped with four sliding rollers for each individual carriage plus four adjustable skids that guarantee perfect grip and smoothness. The transmission of motion between the bolts is by means of a chain with electrical anti-elongation protection to ensure quiet operation and greater elasticity. The electric motor is three-phase and oversized with thermal protection, and the electrical system is closed-circuit, with low-voltage controls and limit switches, "dead man" operation. The structure of the OMCN 199/BETA lift is epoxy powder coated for long life and is completely pre-assembled. The equipment includes a grease pump and anchor bolts for anchoring to the ground.
TECHNICAL FEATURES
Capacity 4 ton
Three-phase motor 400 V. 50 Hz
Motor power 2.6 + 2.6 KW
Height 2680mm
Width 3490mm
Weight 950Kg
Delivery 10-15 days
