Description

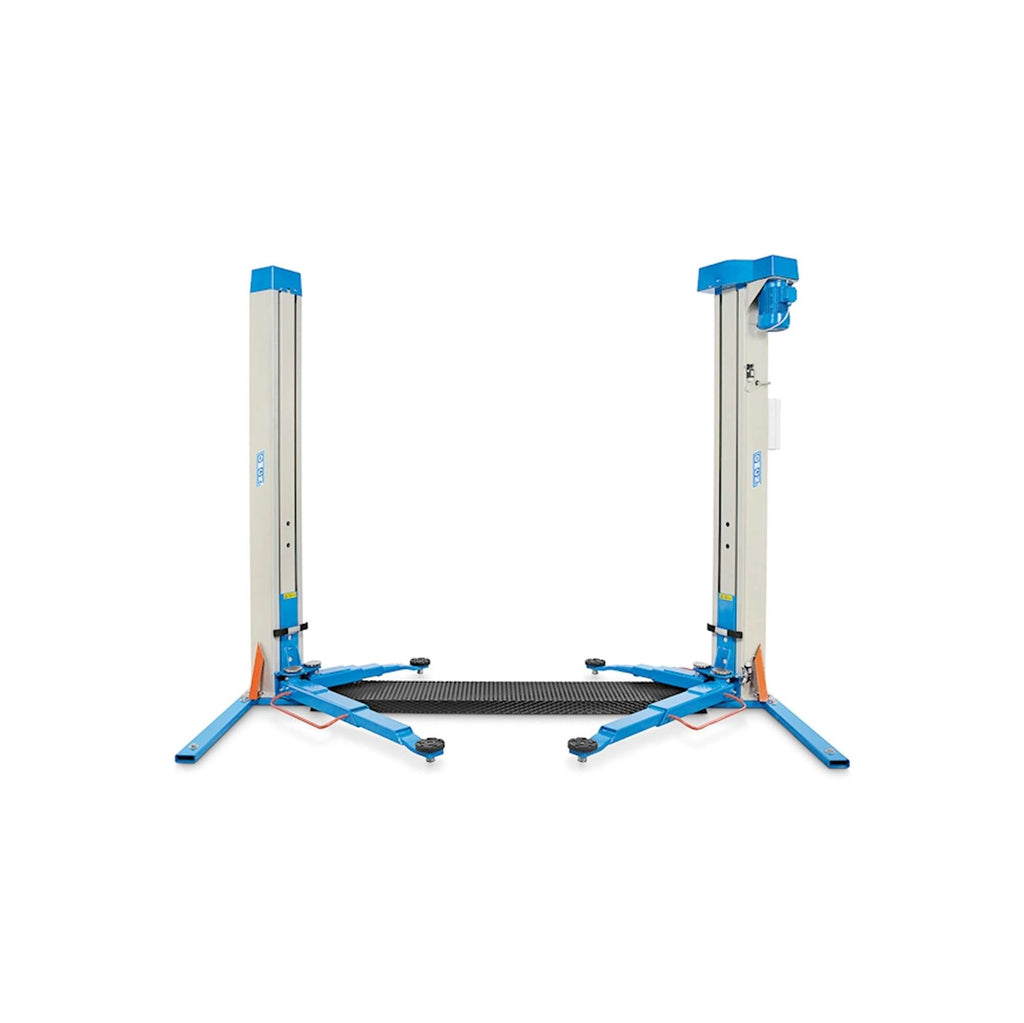

OMCN 199/U - Car workshop lift, electromechanical, two-post, 3.2 t
The OMCN 199/U workshop car lift is an electromechanical car lift. Lifting is provided by rolled, high-strength steel trapezoidal screws with fine pitch to make the carriages self-braking. The carriages are internally sliding and fully protected. The OMCN workshop bridge is equipped with load-bearing nuts made of special material to minimise lubrication. The safety nuts are self-protecting. This workshop lift from OMCN is equipped with four sliding rollers for each individual carriage plus four adjustable skids that guarantee perfect grip and smoothness. The transmission of motion between the bolts is by means of a chain with electrical anti-elongation protection to ensure quiet operation and greater elasticity. The electric motor is three-phase and oversized with thermal protection, and the electrical system is closed-circuit, with low-voltage controls and limit switches, "dead man" operation. The structure of the OMCN 199/U lift is epoxy powder coated for long life and is completely pre-assembled. The equipment includes a grease pump and anchor bolts for anchoring to the ground.
TECHNICAL FEATURES
Capacity 3.2 ton
Three-phase 400 V motor 50 Hz
Motor power 3.3 KW
Height 2600mm
Width 3170mm
Weight 775Kg
Delivery 10-15 days
