Description

Overview

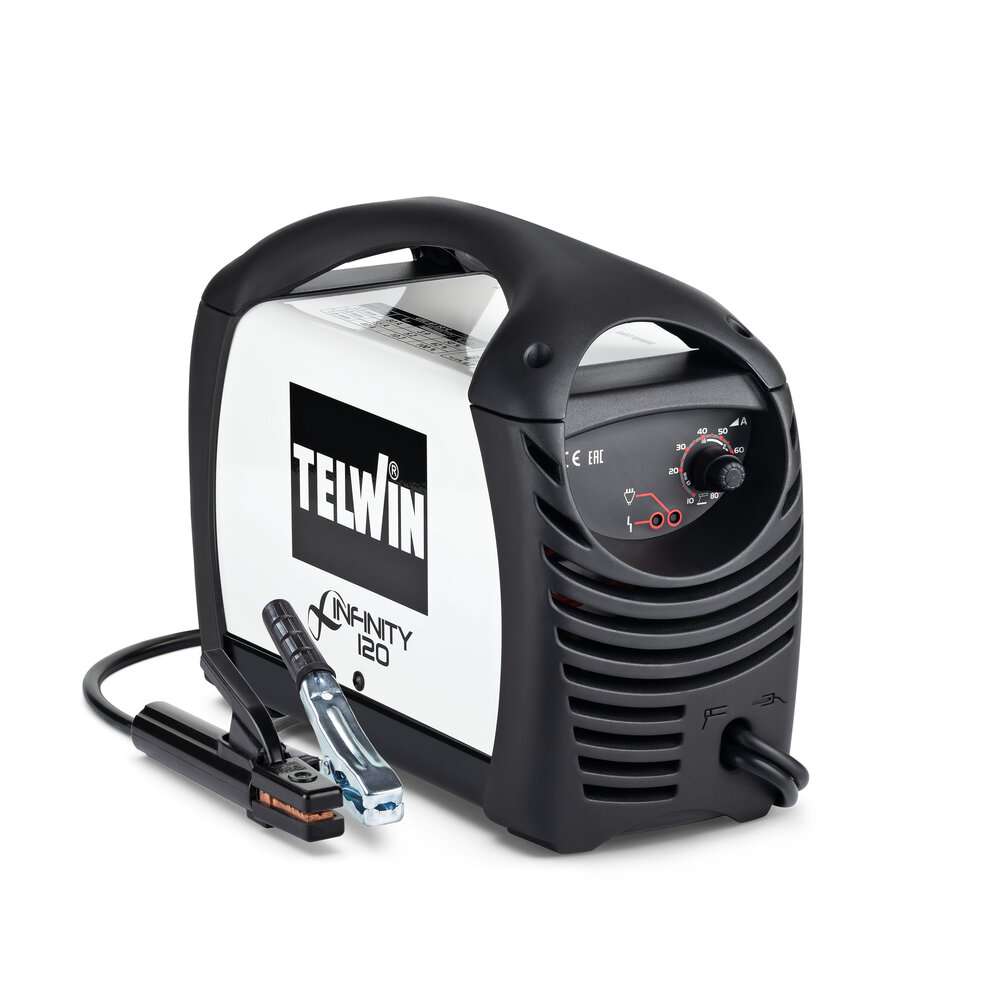

INFINITY 120

code 816078
MMA inverter, electrode welding machine in direct current (DC).
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- compact and light
- high welding current stability in spite of mains voltage fluctuations
- arc force, hot start and anti-stick devices
- thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories and cardboard carry case.


Technical data

  CODE 816078
  MAINS FUSE 10 A
  SINGLE PHASE MAINS VOLTAGE 230 V
  EFFICIENCY 82 %
  MAINS FREQUENCY 50 / 60 Hz
  POWER FACTOR 0,6
  CURRENT RANGE 10 - 80 A
  D. USABLE ELECTRODES IN DC 1,6 - 2,5 mm

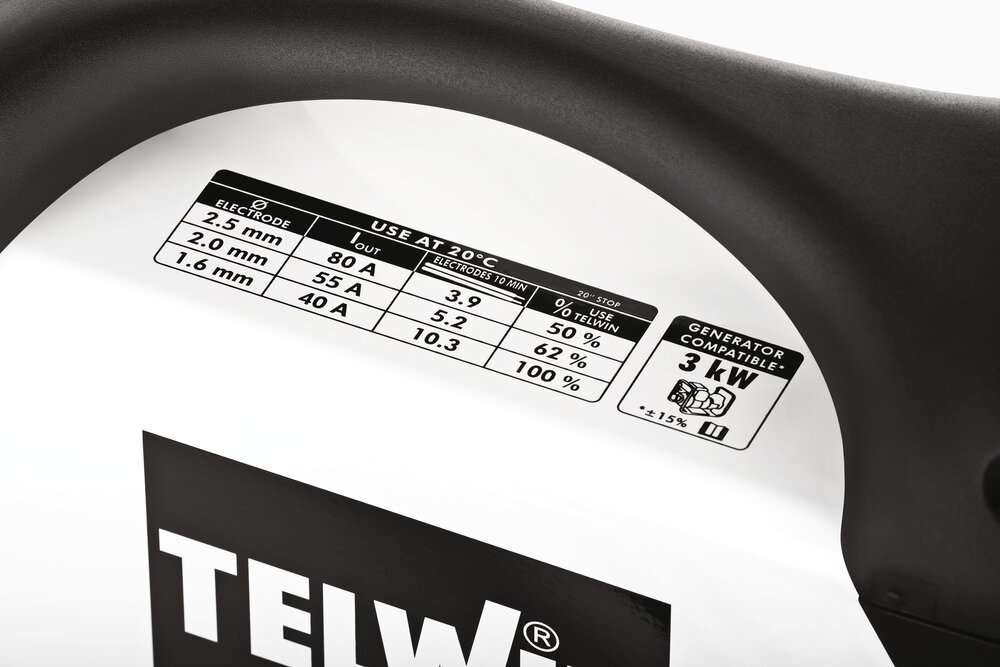

  %USE (20°C USE) 50% @ 80A
  PROTECTION DEGREE IP21
  MAX CURRENT 80 @ 5% A
  DIMENSIONS 32 x 37 x 14,5 cm
  MAX NO LOAD VOLTAGE 72 V
  WEIGHT 2,85
  MAX ABSORBED CURRENT 15 A
  EAN CODE 800489797779 9
  MAX ABSORBED POWER 2,3 kW
  PIECES/PALLET 63 pz/pallet
  MOTORGENERATOR MINIMUM POWER 3 kW

Accessories

Included Accessories

SLAG REMOVER: 712139
CABLE 6MMQ 1.8M WORK CLAMP-EYELET: 713254
DALLAS 300 ELECTRODE HOLDER 300A: 712260
CABLE 6 MMQ 1.8 M EYELET: 713255
