Description

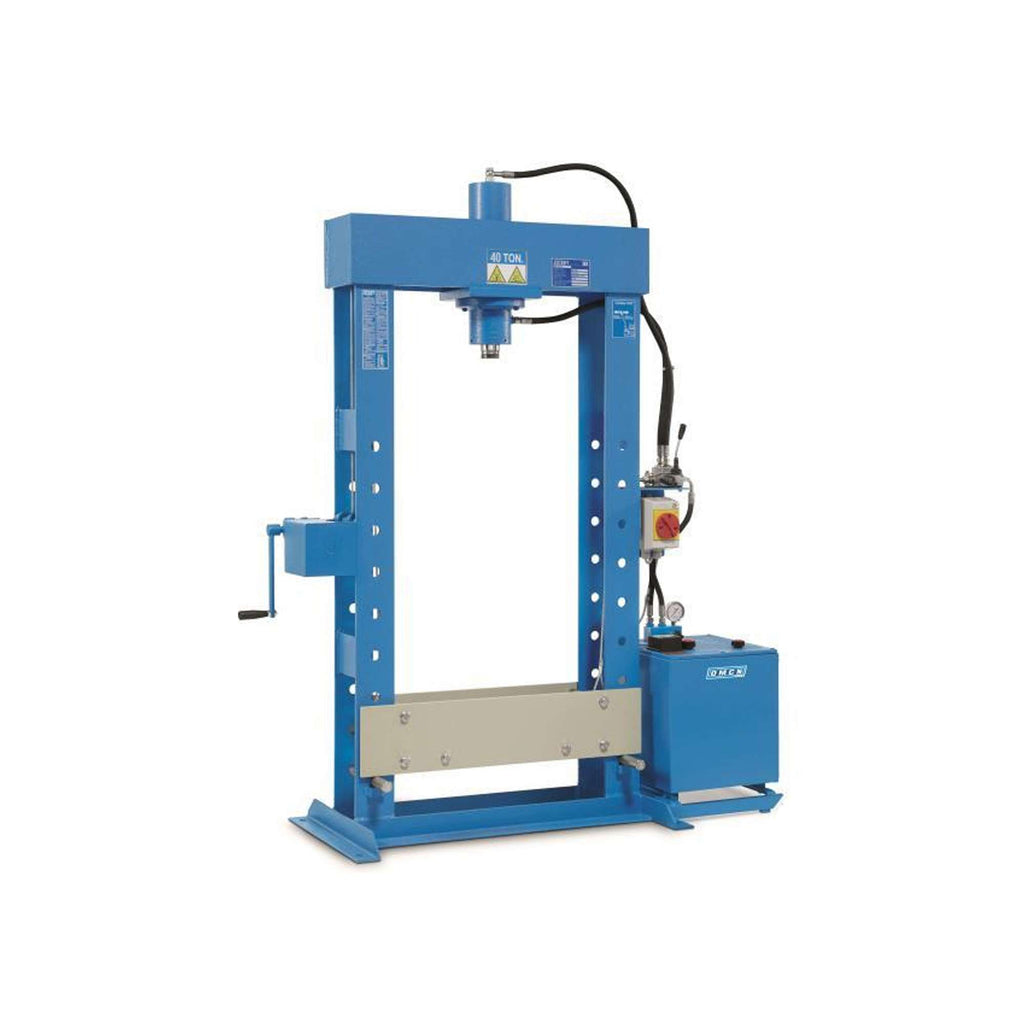

OMCN 163/W two-speed electro-hydraulic press with actuation via 3-position lever control valve. Robust base frame construction that provides maximum stability and minimum space requirements.
Thanks to the perforated frame, the support base can be adjusted in height so that workpieces of different sizes can be processed. The lever-operated system allows a free hand to work. The winch allows the pallet to be lifted quickly and conveniently.
+ rapid approach
+ precision
+ freedom
Indispensable in the workshop and in the industrial sector, perfect for pressing metal objects, such as when assembling mechanical assemblies, pressing bearings or pulleys onto shafts.
Made in Italy and CE certified press made of robust materials that guarantee reliability over time and is capable of generating a force of 70000 kg.
Technical construction layout
Cylinder rod in special steel, treated and chrome-plated
Actuation via 3-position lever distributor
One-hand operation
Two-speed pump
Calibration valve for adjusting the power according to the machining operation
Maximum versatility
Height-adjustable bed
Bench lifting by winch
Base with holes for floor fixing
Manometer supplied as standard
Dimensions and footprint
Overall dimensions 2210 x 1755 x 900 mm
Pressure 70 tons
Piston stroke 310 mm
Piston diameter 90 mm
Approach speed 595 mm/min
Working speed 260 mm/min
Motor power 3 Kw
Delivery 10-15 days
