Description

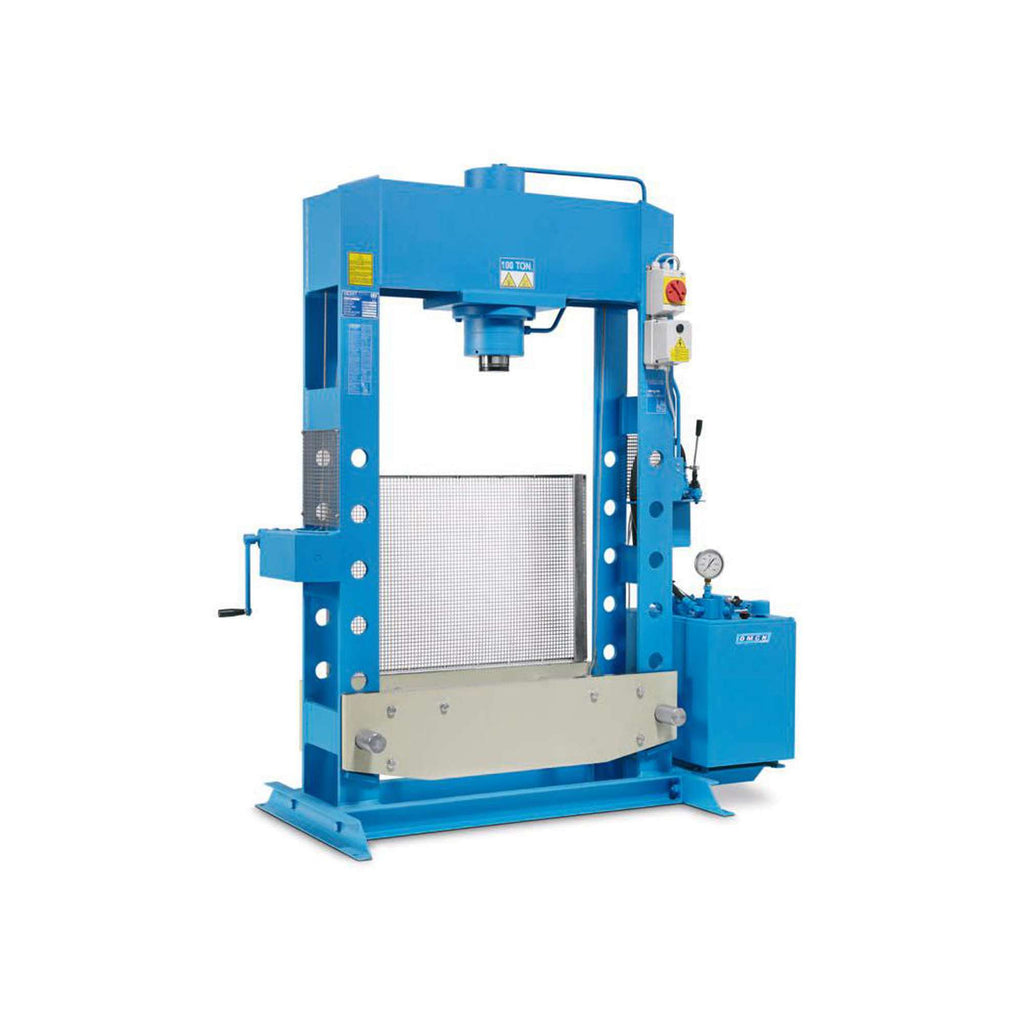

OMCN 163/R electro-hydraulic motorised 2-speed press with automatic insertion 70 T
The electro-hydraulic press 163/R is operated by means of a lever distributor and push-button on the control panel to be operated simultaneously. Two-speed motorised control unit with automatic engagement.
The treated, chrome-plated steel cylinder rod and the steel spring inserted in the cylinder for rapid rod return, this machine is made to last, always guaranteeing optimum performance. Equipped with rear and side protection panels.
It has a 3.0kw power output of 70T and a rod speed of 3400mm/min. Supplied with calibration valves to adjust the power according to the work to be performed.
The working space is 880x1120mm.
A height-adjustable bench is included with this model. Also equipped with a large-diameter pressure gauge. Pressure gauge supplied as standard.
It has a size of 2210x900x1755mm and a weight of 850kg.
Features:
70t pressing capacity
Hydraulic drive
Power 3.0 kW
Technical specifications
Motor power 3.0kW
Pressing capacity 70t
Rod speed 3400 mm/min
Working speed 260 mm/min
A 2210mm
B 900mm
C 1755mm
D 880mm
E 1120mm
F 265mm
G 310mm
H 90mm
Weight 850kg
Delivery 10-15 days
